Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2SW-P01L3BSWITCH SNAP ACT SPDT 0.1A 125V |
357 |
|
Datasheet |
D2SW-P | Tray | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|
ZMTG03CJP00PCESWITCH SNAP ACTION SPDT 3A 125V |
200 |
|
Datasheet |
ZMT | Box | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 170gf | 35gf | 0.232" (5.9mm) | 0.020" (0.5mm) | - | 0.008" (0.2mm) | -40°C ~ 85°C |
|
SSG013H5SWITCH SNP ACT SPST-NO 0.1A 125V |
498 |
|
Datasheet |
SSG | Bulk | Active | SPST-NO | Off-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP40 | - | 51gf | 4.079gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 125°C |
|
ABS1512503SWITCH SNAP ACTION SPDT 2A 125V |
120 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -40°C ~ 85°C |
|

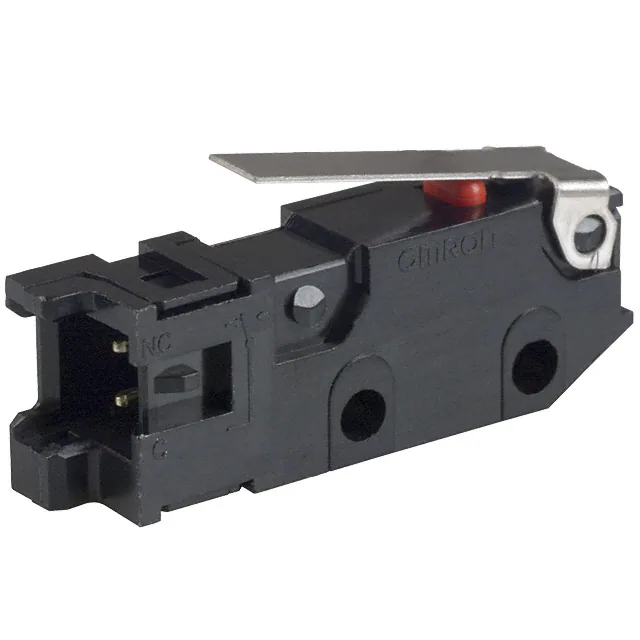

D3M-01K1SWITCH SNAP ACT SPST-NC 0.1A 30V |
430 |
|
Datasheet |
D3M | Tray | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.394" (10.0mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

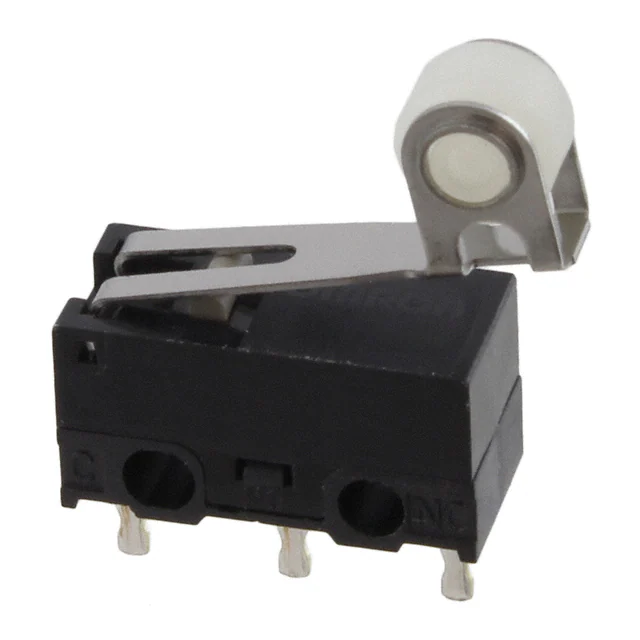

D2F-FL2SWITCH SNAP ACTION SPDT 1A 125V |
616 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 75gf | 2.039gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
SAJSX2XPP0180SDTUPQSWITCH SNAP ACTION SPDT 2A 250V |
936 |
|
Datasheet |
SAJS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 183gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.006" (0.15mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
|
D2SW-P2L1BSWITCH SNAP ACTION SPDT 2A 250V |
326 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.000gf | 0.535" (13.6mm) | - | 0.031" (0.8mm) | 0.031" (0.79mm) | -20°C ~ 70°C |
|
D2SW-P2L3TSWITCH SNAP ACTION SPDT 2A 250V |
326 |
|
Datasheet |
D2SW-P | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 250 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP67 - Dust Tight, Waterproof | - | 61gf | 5.099gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.030" (0.76mm) | -20°C ~ 70°C |
|

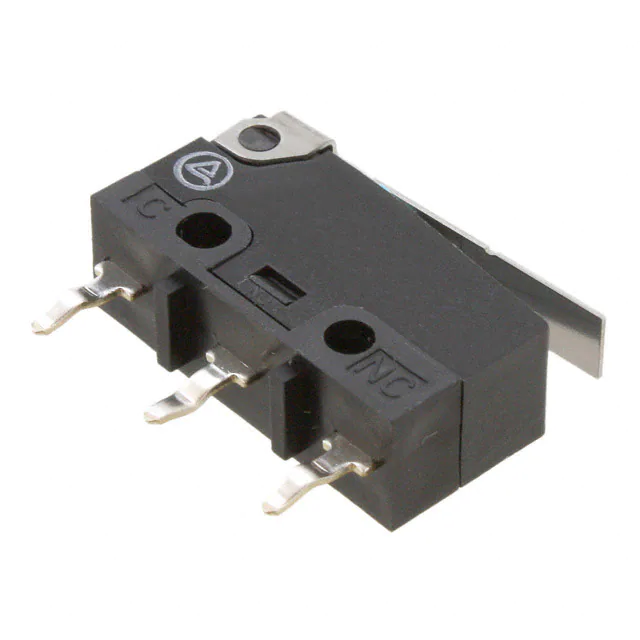

SSG-5L1PSWITCH SNAP ACTION SPDT 5A 125V |
464 |
|
Datasheet |
SSG | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP40 | - | 61gf | 6.118gf | 0.480" (12.2mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
D2F-01FL3-ASWITCH SNAP ACTION SPDT 0.1A 30V |
450 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Right Side | 40gf | 2.039gf | 0.335" (8.5mm) | - | 0.018" (0.45mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
ZMCJF7T13TSWITCH SNAP ACTION SPDT 3A 125V |
293 |
|
Datasheet |
ZM | Tray | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | - | 40gf | - | 0.413" (10.5mm) | - | - | - | -30°C ~ 85°C |
|
ABJ151260SWITCH SNAP ACTION SPDT 2A 125V |
124 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole | PC Pin | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.268" (6.8mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
SAJ35XXPP0N49SDTSEQSWITCH SNAP ACTION SPDT 5A 125V |
945 |
|
Datasheet |
SAJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 50gf | 5.000gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
AVL3825613SWITCH SNAP ACT SPDT 0.1A 125V |
450 |
|
Datasheet |
AVL3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 55gf | 3.500gf | 0.345" (8.8mm) | 0.110" (2.8mm) | 0.032" (0.81mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|

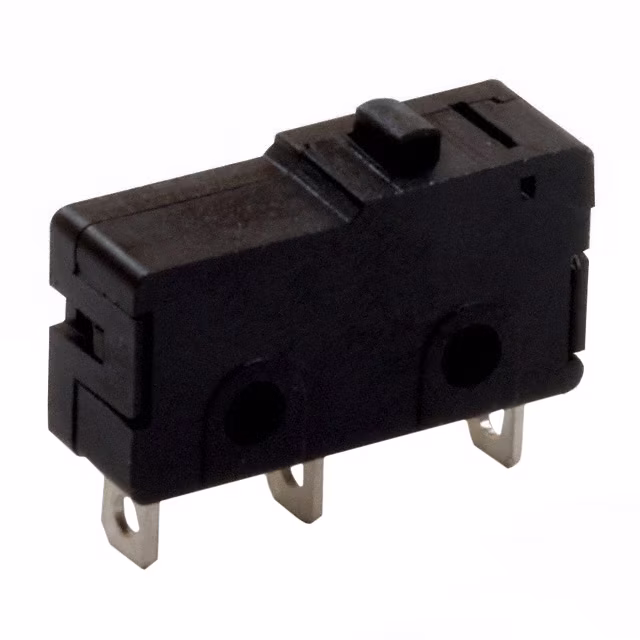

LCA10150P00SCSWITCH SNAP ACTION SPDT 10A 125V |
210 |
|
Datasheet |
LCA | Tray | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 150gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | 0.008" (0.2mm) | 0.015" (0.4mm) | -40°C ~ 125°C |
|
SS-5GL13-FTSWITCH SNAP ACTION SPDT 5A 125V |
211 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | IP40 | - | 16gf | 2.039gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
V-1151K-1C24SWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
V | Bulk | Active | SPDT | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 240gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.030" (0.76mm) | -25°C ~ 80°C |
|
|
D2F-01L2-TSWITCH SNAP ACTION SPDT 0.1A 30V |
750 |
|
Datasheet |
D2F | Tray | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Lever, Roller | Through Hole | PC Pin | IP40 | - | 80gf | 5.099gf | 0.512" (13.0mm) | - | 0.020" (0.5mm) | 0.022" (0.55mm) | -40°C ~ 85°C |
|
D2F-F-A1SWITCH SNAP ACTION SPDT 1A 125V |
609 |
|
Datasheet |
D2F | Bulk | Active | SPDT | On-Mom | 1A (AC), 500mA (DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | IP40 | Actuator Mounted Left Side | 75gf | 5.099gf | 0.217" (5.5mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
