Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
602.1367.626SWITCH LIMIT METAL BODY |
0 |
|
Datasheet |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
602.1120.381SWITCH LIMIT METAL BODY |
0 |
|
- |
* | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
602.3000.084SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
M49 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 240 V | 24 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
602.3000.083SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
M49 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 2A (DC) | 240 V | 24 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
D4MC-2002 VCT 3MSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
- |
D4MC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 200gf | 40gf | 1.575" (40.0mm) | - | 0.118" (3.0mm) | 0.197" (5.0mm) | -10°C ~ 80°C |
|

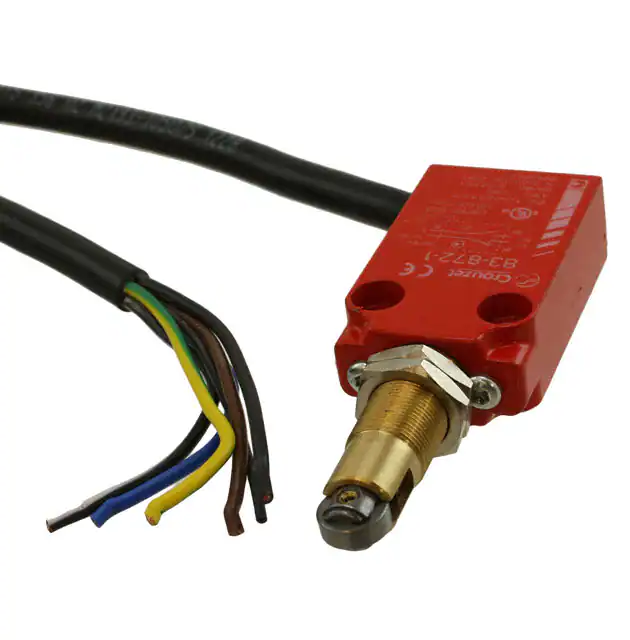

83872103SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83881103SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
|
83881113SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83876103SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
|
83885103SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 3m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
|
D4B-3170NSWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
D4B-N | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.380" (35.0mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.197" (5.0mm) | -40°C ~ 80°C |
|
BZE6-RQSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Steel Plunger | 170 ~ 269gf | 113gf | 1.500" (38.1mm) | 0.012" (0.3mm) | 0.0005" (0.013mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
|
51.908BFOOT SWITCH BKTERM 2XSPDT MOM 2S |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.908GFOOT SWITCHFK1SU1DSU1KGYTERM 2XS |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3SE52320LF10SWITCH LIMIT 3PST 6A 120V |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
3SE52320LE10SWITCH LIMIT 3PST 6A 120V RLR |
0 |
|
Datasheet |
3SE5 | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 120 V | 24 V | Top Rotary, Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 1020gf | - | - | - | - | - | -25°C ~ 85°C |
|
|
BZ-3RW822155551T-SSWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
9007AO4SWITCH SNAP ACTION 15A 600V |
0 |
|
Datasheet |
Square D | Box | Active | - | - | 15A (AC) | 600 V | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4N-2BLESWITCH SNAP ACT DPST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Left Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
|
|
D4N-4BLESWITCH SNAP ACT DPST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Fork Lever Lock (Yoke) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Left Operation, Rubber Rollers | 653gf | - | 6.5° | - | - | - | -30°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
