Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCMD2510L1SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
D4N-1187SWITCH SNAP ACTION |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLEC01CSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.100" (28.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
21SM367-1222SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 85gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|

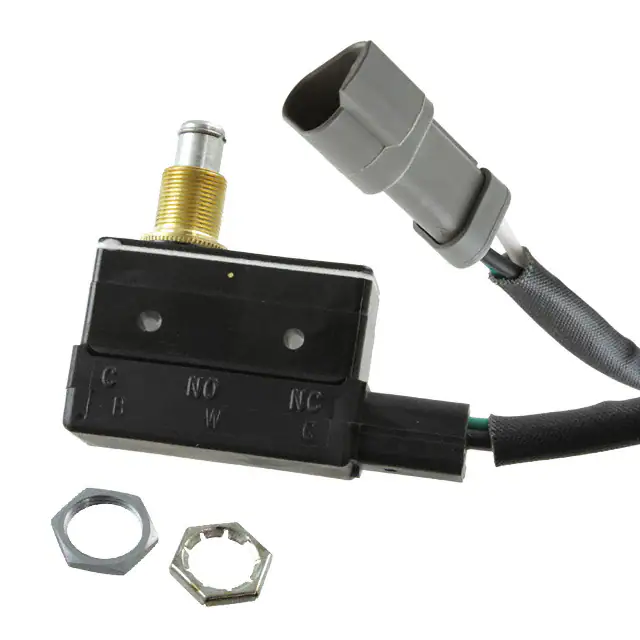

BZ-2RQ1016-W119SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Cable with Connector | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.859" (21.8mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
608.5135.120SWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
51.902BFOOT SWITCHFK1SU1KBK SPDTMOMTERM |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCNT2102P16SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
NGCPB10AX32CSWITCH SNAP ACT 4PST 0.01A 30 MV |
0 |
|
Datasheet |
NGC | Bulk | Active | 4PST-2NO/2NC | On-Mom, Off-Mom | 10mA (DC) | - | 30 mV | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 969gf | 224gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.050" (1.3mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
|
6200271SWITCH SNAP ACTION TRAVEL LIMIT |
0 |
|
- |
* | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D4V-8122ZSWITCH LIMIT SPDT 5A 125V |
0 |
|
Datasheet |
D4V | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 24 V | Cross Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 1000gf | 300gf | 1.457" (37.0mm) | 0.060" (1.5mm) | 0.047" (1.2mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|

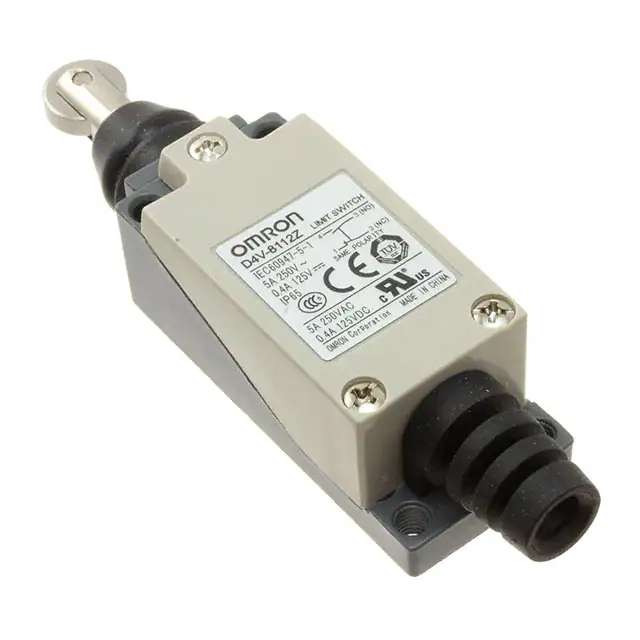

D4V-8112ZSWITCH LIMIT SPDT 5A 125V |
0 |
|
Datasheet |
D4V | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 1000gf | 300gf | 1.457" (37.0mm) | 0.060" (1.5mm) | 0.047" (1.2mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|
|
D4V-8166ZSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D4V | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 24 V | Spring, Coil | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 90gf | - | - | 1.180" (30.0mm) | - | - | -20°C ~ 60°C |
|
|
XCMH2103L8LS PL MINI STL RLLR PLUNGR NCNO |
0 |
|
Datasheet |
XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMH2102L8LS PL MINI MTL RLLR PLUNGR NCNO |
0 |
|
Datasheet |
XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMH2115L8LS PL MINI PLASTIC RLLR LVR NCNO |
0 |
|
Datasheet |
XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCPR2518P20SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
83871001SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
83870 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
|
91MCE16-P5PSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 18gfm | 4.078gfm | - | 20° | 10° | 50° | -25°C ~ 85°C |
|
|
91MCE16-S5PSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m | 14gfm | - | - | 20° | 13° | 50° | -25°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
