Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Z-15GW4455-M19R 1MSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
Z | Bulk | Discontinued at Digi-Key | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP62 | - | - | - | - | - | - | - | -15°C ~ 80°C |
|
|
GLDC05CSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLCA03C-6SWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT (BBM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 1.100" (28.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
91MCE18-P3BSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
|
91MCE2-P3BSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 1122gf | - | - | 0.071" (1.8mm) | 0.031" (0.8mm) | 0.125" (3.2mm) | -25°C ~ 85°C |
|
|
91MCE2-S3BSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|
|
91MCE3-S3BSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 816gf | - | - | 0.063" (1.6mm) | 0.055" (1.4mm) | 0.134" (3.4mm) | -25°C ~ 85°C |
|
|
GLDA01A1YLIMIT SWITCH |
0 |
|
- |
GLD | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 12gf | - | 26° | 26° | 12° | 44° | -40°C ~ 85°C |
|
|
83139104SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
83139 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m, Explosion Proof | 306gf | 61gf | 0.343" (8.7mm) | - | 0.014" (0.35mm) | 0.011" (0.3mm) | -40°C ~ 85°C |
|
83123032SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
83123 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | - | 540gf | 153gf | 0.450" (11.4mm) | - | 0.008" (0.2mm) | 0.008" (0.2mm) | 0°C ~ 85°C |
|
|
83112001SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83112 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 408gf | 102gf | 0.451" (11.45mm) | - | 0.020" (0.5mm) | 0.026" (0.7mm) | -20°C ~ 85°C |
|

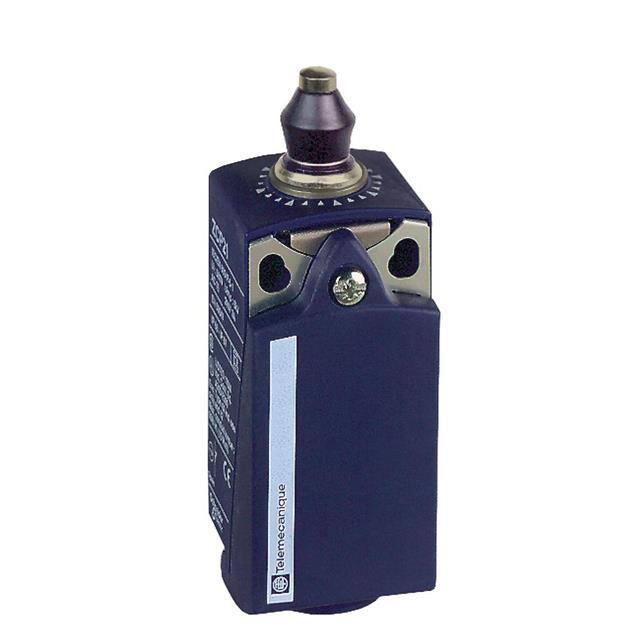

XCKP2111G11SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XCKP | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
LSZ65EESWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Z-01HDA55-B5VSWITCH DRIPPROF 0.1A SPRNG PLNG |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLDC01A1BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
608.3000.222SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.224SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.226SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.227SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
608.3000.261SWITCH LIMIT |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
