Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCMH2102L5LS PL MINI MTL RLLR PLUNGR NCNO |
0 |
|
Datasheet |
XCMH | Bulk | Active | DPST-NO/NC | On-Off, Off-On | 750mA (AC), 100mA (DC) | 240 V | 250 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
GLDA07A2BSWITCH SNAP ACTION SPDT 0.1A 50V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 50 V | 50 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Steel Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
XCMN2910L2SWITCH LIMIT DPST-NC 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NC | On-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

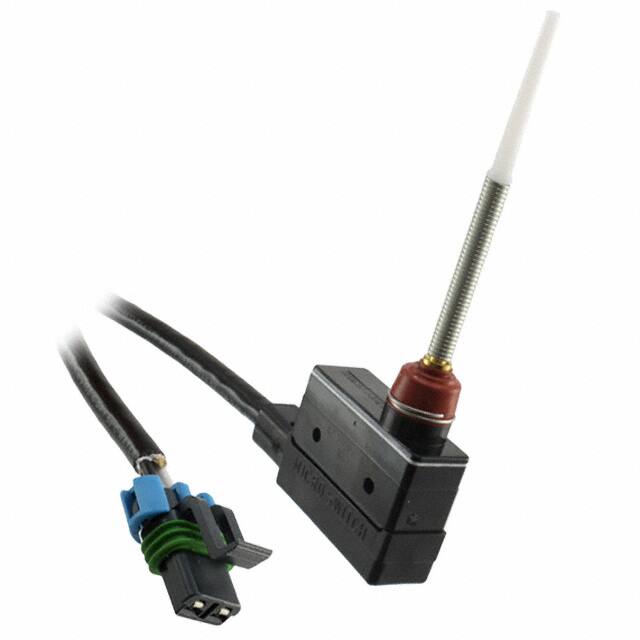

WZ-2RQW55-W104SWITCH SNAP ACT SPST-NC 15A 125V |
0 |
|
- |
WZ | Bulk | Active | SPST-NC | On-Mom | 15A (AC) | 125 V | - | Spring, Rod | Chassis Mount | Cable with Connector | Splash Proof | - | 71gf | - | - | 0.500" (12.7mm) | - | - | -55°C ~ 85°C |
|
|
83240230SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 459gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
|
83240033SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 275gf | - | 0.654" (16.6mm) | - | 0.070" (1.8mm) | - | -50°C ~ 85°C |
|
|
83242230SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
|
BZ-RL59SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
600.8816.017SWITCH LIMIT PLASTIC BODY |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
MT-4RV34-A28SWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
MT | Bulk | Obsolete | SPDT | On-Mom | 10A (AC/DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 58gf | 14gf | 0.750" (19.1mm) | 0.500" (12.7mm) | 0.085" (2.16mm) | 0.047" (1.2mm) | - |
|
GLDB01BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 0.710" (18.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
Z-15GW22S55-MR 1MSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP62 | - | - | - | - | - | - | - | -15°C ~ 80°C |
|
|
Z-15GW55-MD 1MSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Cable Leads | IP62 | Cable Length 1m | 100gf | 14gf | 0.748" (19.0mm) | - | 0.080" (2.0mm) | 0.219" (5.6mm) | -15°C ~ 80°C |
|
|
D4N-3A2GRSWITCH SNAP ACTION DPST 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 571gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
|
608.8103.001SWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XCMN2121L5SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
D4N-1B2HRSWITCH SNAP ACT DPST-NC 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | DPST-NC | On-Off | 10A (AC), 2.5A (DC) | 120 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 551gf | - | - | 18° | - | - | -30°C ~ 70°C |
|
|
D4N-1C32RSWITCH SNAP ACTION 3PST 10A 120V |
0 |
|
Datasheet |
D4N-R | Bulk | Obsolete | 3PST-2NC/1NO | On-Mom, Off-Mom | 10A (AC), 2.5A (DC) | 120 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1101gf | - | 1.748" (44.4mm) | 0.080" (2.0mm) | - | - | -30°C ~ 70°C |
|
|
608.6803.013SWITCH LIMIT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
91MCE16-PBAQSWITCH LIMIT |
0 |
|
- |
91MCE | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
