Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1SX92SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.030" (0.8mm) | 0.007" (0.18mm) | 0.004" (0.1mm) | -53°C ~ 121°C |
|
|
GLCA05A1ASWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | DPST-NO (DM) | Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Nylon Roller | 12gfm | - | 26° | 26° | 12° | 49° | -40°C ~ 85°C |
|
|
BA-3SQ1TSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT (DB/DM) | On-Mom | 25A (AC), 1A (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 737 ~ 1077gf | 283gf | 0.859" (21.8mm) | 0.065" (1.65mm) | 0.015" (0.38mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
91MCE16-P2PSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 18gfm | 4.078gfm | - | 20° | 10° | 50° | -25°C ~ 85°C |
|
|
91MCE16-S2PSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 14gfm | - | - | 20° | 13° | 50° | -25°C ~ 85°C |
|
|
91MCE16-P1BPSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 18gfm | 4.078gfm | - | 20° | 10° | 50° | -25°C ~ 85°C |
|
|
91MCE16-SBQSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 14gfm | - | - | 20° | 13° | 50° | -25°C ~ 85°C |
|
|
91MCE16-S2SWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
91MCE | Bulk | Not For New Designs | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 14gfm | - | - | 20° | 13° | 50° | -25°C ~ 85°C |
|
|
91MCE16-PBPQSWITCH SNAP ACTION LIMIT |
0 |
|
- |
91MCE | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
91MCE16-SBPQSWITCH LIMIT |
0 |
|
- |
91MCE | - | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
3SE03RBSWITCH LIMIT RECEPTACLE 2NO/2NC |
0 |
|
- |
- | Box | Active | DPST-NC | - | - | - | - | - | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | - |
|
|
NGCMA00PX01CSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

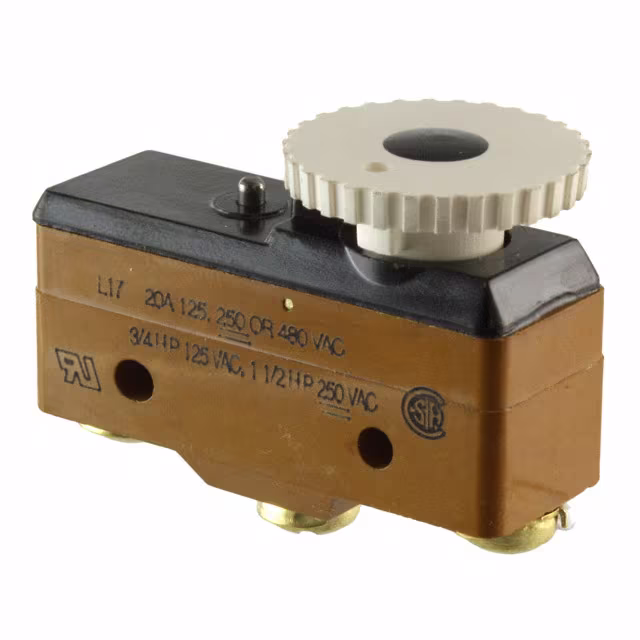

10BS210SWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
BS | Bulk | Active | SPDT | On-Mom | 20A (AC) | 125 V | - | Adjustable Plunger | Chassis Mount | Screw Terminal | - | - | 312 ~ 567gf | 283gf | 0.640" (16.3mm) | - | 0.007" (0.18mm) | 0.010" (0.25mm) | - |
|
|
XCNR2110P20SWITCH LIMIT DPST 3A 240V PLNGR |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 100mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMN2121L2SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMN2107L1SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Spring, Rod | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
GLDA01BSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Active | SPDT | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1632gf | - | 0.710" (18.0mm) | 0.120" (3.0mm) | 0.035" (0.9mm) | 0.118" (3.0mm) | -40°C ~ 85°C |
|
|
600.8816.015SWITCH LIMIT PLASTIC BODY |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
NGCMB30AX01A2ANGC SWITCH |
0 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
83228001SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
- |
83228 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 173gf | 41gf | 0.077" (1.95mm) | - | 0.005" (0.13mm) | 0.006" (0.15mm) | -55°C ~ 100°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
