Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D4N-2D62SWITCH SNAP ACT 3PST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | 3PST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
83240220SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 459gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
83240004SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Lever, Roller | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 275gf | - | 0.654" (16.6mm) | - | 0.070" (1.8mm) | - | -50°C ~ 85°C |
|
83240023SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 275gf | - | 0.654" (16.6mm) | - | 0.070" (1.8mm) | - | -50°C ~ 85°C |
|
|
83242023SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | - | 398gf | - | 0.654" (16.6mm) | - | 0.070" (1.8mm) | - | -50°C ~ 85°C |
|
|
83242220SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 663gf | - | 0.260" (6.6mm) | - | 0.040" (1.0mm) | - | -50°C ~ 85°C |
|
|
83242004SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Lever, Roller | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 398gf | - | 0.654" (16.6mm) | - | 0.070" (1.8mm) | - | -50°C ~ 85°C |
|
|
83242005SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
PBX | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 600mA (DC) | 250 V | 250 V | Lever, Roller | Panel Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 398gf | - | 0.654" (16.6mm) | - | 0.070" (1.8mm) | - | -50°C ~ 85°C |
|
BZ-3ASTSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 454 ~ 737gf | 113gf | 1.110" (28.2mm) | 0.025" (0.65mm) | 0.005" (0.13mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
XCMN2106L1SWITCH LIMIT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Spring, Cat Whisker | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCMN2121L1SWITCH SNAP ACT DPST 1.5A 240V |
0 |
|
Datasheet |
XC | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Cable Leads | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
51SM1-TSWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.406" (10.3mm) | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.008" (0.2mm) | -55°C ~ 125°C |
|
|
NGCMB20BX01L-L40SWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
XCKS159H29SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XCKS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Adjustable Rod | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
XCKS159SWITCH LIMIT DPST 3A 240V |
0 |
|
Datasheet |
XCKS | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Side Rotary, Rod Spring | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
|
83141016SWITCH SNAP ACTION SPDT SLDR |
0 |
|
- |
83141 | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
NGCMB10AX01LSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|

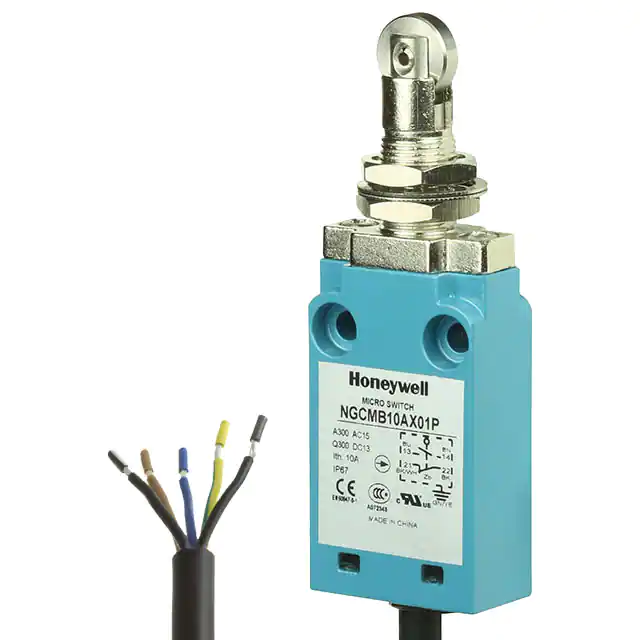

NGCMB10AX01PSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
|
NGCPC10BX07JSWITCH LIMIT |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
GLDA03DSWITCH SNAP ACTION SPDT 6A 120V |
0 |
|
Datasheet |
GLS | Bulk | Obsolete | SPDT (BBM) | On-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 953gf | - | 1.409" (35.8mm) | 0.138" (3.5mm) | 0.050" (1.3mm) | 0.205" (5.2mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
