Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
412SX22-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.003" (0.075mm) | 0.004" (0.1mm) | -53°C ~ 204°C |
|
8640SWITCH AIR PRESSURE NC |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
3BV12B013SWITCH SNAP ACT SPST-NO 25A 277V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST-NO | Off-Mom | 25A (AC) | 277 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.250" (6.3mm) | - | - | 180gf | - | - | 0.052" (1.32mm) | - | - | - |
|
|
83261152SWITCH SNAP ACTION 260E |
0 |
|
- |
- | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
D4N-2172SWITCH SNAP ACTION DPST 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-2262SWITCH SNAP ACT DPST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.457" (37.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
D4N-2272SWITCH SNAP ACT DPST-NC 3A 240V |
0 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 510gf | 82gf | 1.063" (27.0mm) | 0.157" (4.0mm) | 0.060" (1.5mm) | 0.197" (5.0mm) | -30°C ~ 70°C |
|
|
12SX14-TSWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
|
83852501SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83852 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 1020gf | - | - | - | 0.060" (1.5mm) | - | -25°C ~ 80°C |
|
|
BZ-2RN317-P4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.720" (43.7mm) | - | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

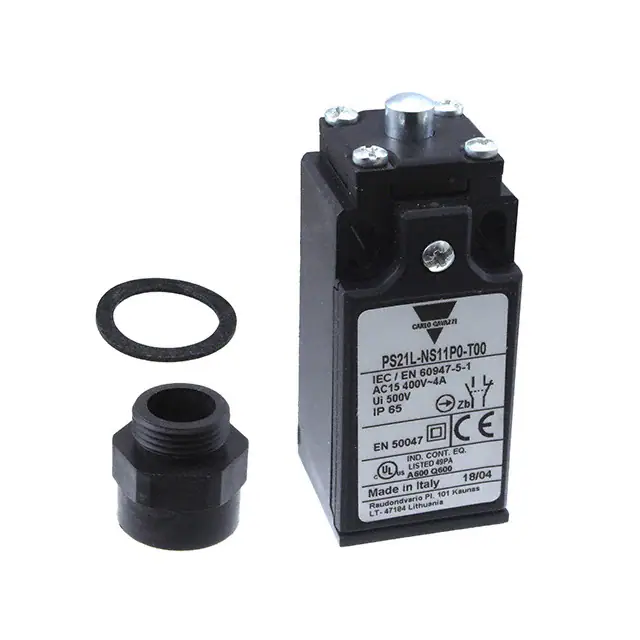

PS21L-NS11P0-T00SWITCH SNAP ACT DPST 5.5A 130V |
0 |
|
Datasheet |
PS21L | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 5.5A (AC), 2.8A (DC) | 130 V | 24 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 1530gf | - | - | - | - | - | -25°C ~ 70°C |
|
BZ-2RQ181SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Solder Lug | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 85°C |
|

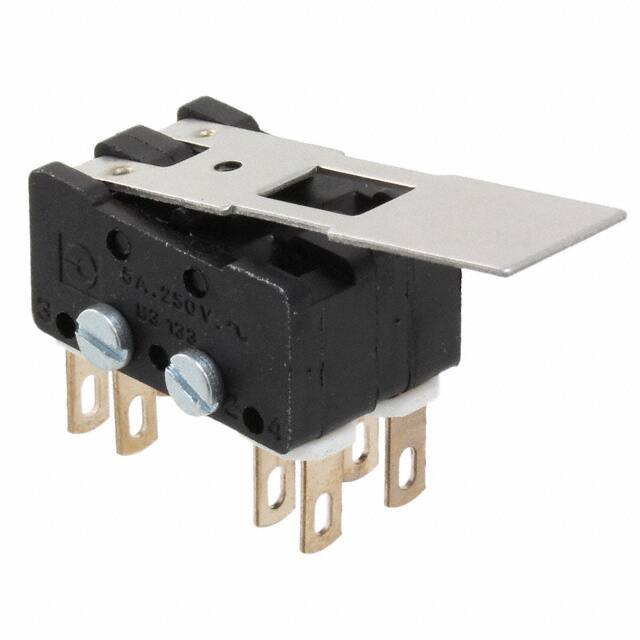

83133301SWITCH SNAP ACTION DPDT 5A 125V |
0 |
|
Datasheet |
83133 | Bulk | Active | DPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | - | 82gf | 16gf | 0.345" (8.8mm) | 0.170" (4.3mm) | 0.080" (2.0mm) | - | -20°C ~ 125°C |
|

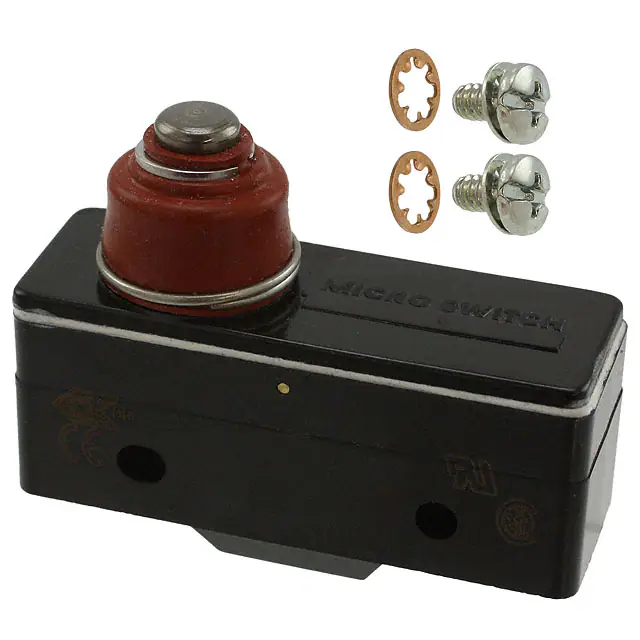

YZ-2RDS4SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
YZ | Bulk | Active | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | Splash Proof | - | 368 ~ 538gf | 113gf | 1.110" (28.2mm) | - | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
83853301SWITCH SNAP ACTION DPST 6A 250V |
0 |
|
Datasheet |
83853 | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 3A (DC) | 250 V | 24 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | 28gfm | - | - | - | 20° | - | -25°C ~ 80°C |
|
|
93SX39-T2SWITCH SNAP ACTION SPDT 1A 28V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.005" (0.13mm) | 0.004" (0.1mm) | -53°C ~ 85°C |
|
|
X-10GQSWITCH SNAP ACTION SPDT 10A 30V |
0 |
|
Datasheet |
X | Tray | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Round (Pin Plunger) | Panel Mount | Solder Lug | IP00 | - | 510gf | 114gf | 0.859" (21.8mm) | 0.035" (0.9mm) | 0.007" (0.18mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|
|
X-10GW4SWITCH SNAP ACTION SPDT 10A 30V |
0 |
|
Datasheet |
X | Bulk | Active | SPDT | On-Mom | 10A (DC) | - | 30 V | Lever, Straight | Chassis Mount | Solder Lug | IP00 | - | 25gf | 5.099gf | 0.831" (21.1mm) | 0.562" (14.3mm) | 0.154" (3.9mm) | 0.190" (4.8mm) | -25°C ~ 80°C |
|
|
A-20GV130-B7-KSWITCH SNAP ACTION SPDT 20A 125V |
0 |
|
Datasheet |
A | Bulk | Active | SPDT | On-Mom | 20A (AC), 6A (DC) | 125 V | 30 V | - | Chassis Mount | Screw Terminal | IP00 | - | - | - | - | - | - | - | -25°C ~ 85°C |
|
|
Z-15GK355-B7-KSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP62 | - | - | - | - | - | - | - | -15°C ~ 80°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
