Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12TL4A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
TL | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Push-Pull Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -55°C ~ 150°C |
|
80259-00SWITCH OPERATOR CNTRLS SHIFTERS |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
Z-15ER-K1SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | - | - | - | - | - | - | - | -25°C ~ 80°C |
|
|
12SX3-H58SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 28 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
BZ-2RDS725551-A2SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 1A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | Steel Plunger | 368 ~ 538gf | 113gf | 1.110" (28.2mm) | - | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
BZ-2RQ1725-D6SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-2RN730SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 1.720" (43.7mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|

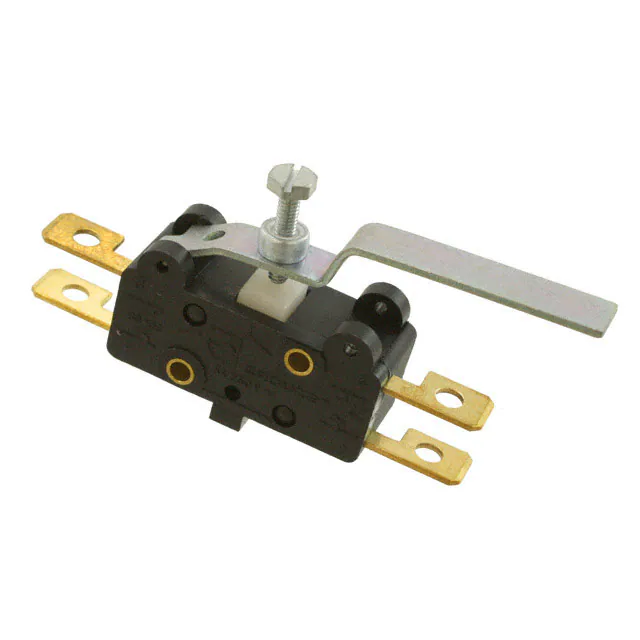

X0230663SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
83106 | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | Actuator Mounted Left Side | 122gf | 25gf | - | 0.244" (6.2mm) | 0.083" (2.1mm) | - | -20°C ~ 85°C |
|
|
BZ-3AW82254TSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 1A (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 240gf | 43gf | 1.188" (30.2mm) | - | 0.050" (1.3mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
AZH2324SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 250gf | 40gf | 1.350" (34.3mm) | 0.157" (4.0mm) | 0.025" (0.6mm) | 0.276" (7.0mm) | -10°C ~ 80°C |
|
|
AZH2344SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
|
BZ-2RW826SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | - | 170gf | 43gf | 1.625" (41.3mm) | - | 0.020" (0.5mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
|
00721700SWITCH PLUNGER 3-WAY DIN NC |
0 |
|
- |
* | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-2RQ1824-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Roller Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.313" (33.4mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.141" (3.6mm) | -55°C ~ 121°C |
|
|
BZ-2RW8225530-A2-SSWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BZ-2RQ66SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Overtravel Plunger | Panel Mount | Screw Terminal | - | - | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
BZ-7RQ144TSWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-2R5528-SSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 255 ~ 425gf | 113gf | 0.625" (15.9mm) | - | 0.002" (0.05mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
D2JW-01K32-MDSWITCH SNAP ACT IMMERSION-PROOF |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
BA-3STSWITCH SNAP ACTION SPDT 25A 125V |
0 |
|
Datasheet |
BA | Bulk | Active | SPDT (DB/DM) | On-Mom | 25A (AC), 1A (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 737 ~ 1077gf | 283gf | 0.640" (16.3mm) | 0.065" (1.65mm) | 0.008" (0.2mm) | 0.010" (0.25mm) | -55°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
