Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
D2VW-5K1-1MSSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
D2VW | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|
|
83132089SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
83132 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | - | Actuator Mounted Left Side | 82gf | 16gf | 0.374" (9.5mm) | 0.085" (2.16mm) | 0.040" (1.0mm) | - | -20°C ~ 125°C |
|
|
YZ-2RW82725551-D6SWITCH SNAP ACT SPST-NO 1A 125V |
0 |
|
Datasheet |
YZ | Bulk | Obsolete | SPST-NO | Off-Mom | 1A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.250" (6.3mm) | Splash Proof | - | 99gf | 21gf | - | - | 0.040" (1.0mm) | 0.156" (3.96mm) | -55°C ~ 85°C |
|
|
BZ-7R331SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 624 ~ 794gf | 113gf | 0.625" (15.9mm) | 0.030" (0.8mm) | 0.005" (0.13mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
11SX21-H58SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
|
V15W-WP200A05-W303SWITCH BASIC SPNO |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

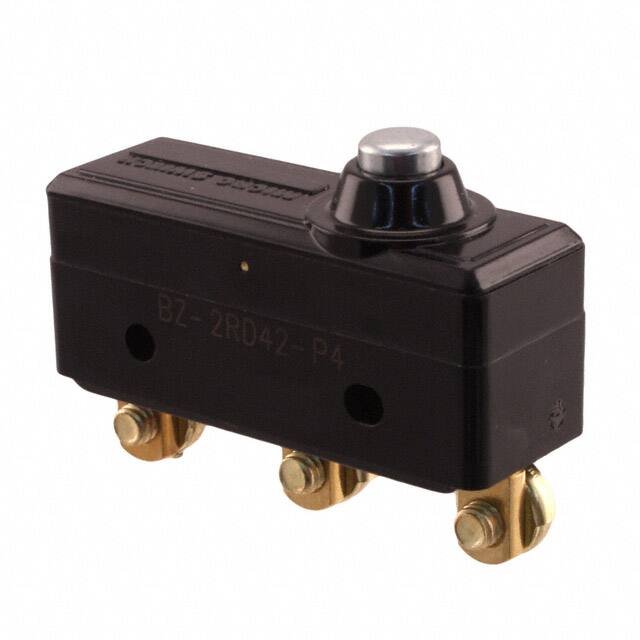

BZ-2RD42-P4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 255 ~ 368gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
83160711SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
83160 | Bulk | Active | SPST-NC | On-Mom | 6A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
|
83160713SWITCH SNAP ACTION 6A POS BRK |
0 |
|
Datasheet |
83160 | Box | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BZ-3RW8995519-PC2SWITCH LARGE BASIC |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
D2VW-5-2MSWITCH SNAP ACTION MINI BASIC |
0 |
|
Datasheet |
D2VW | Bulk | Active | SPST-NC | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 200gf | 30gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.039" (1.0mm) | -40°C ~ 85°C |
|

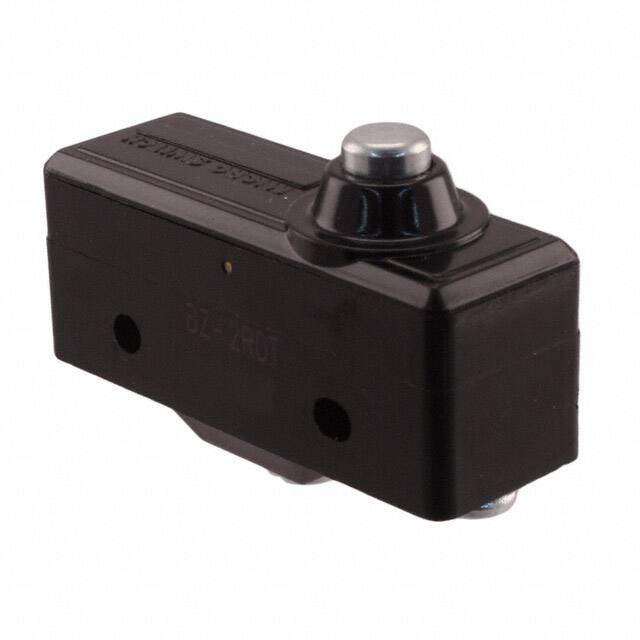

BZ-2RDTSWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | Steel Plunger | 368 ~ 538gf | 113gf | 0.835" (21.2mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|

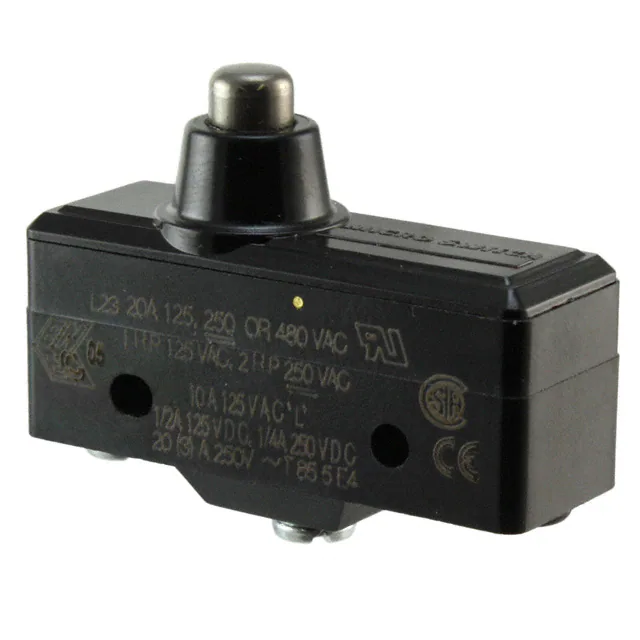

YA-2RBTSWITCH SNAP ACT SPST-NO 20A 125V |
0 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|

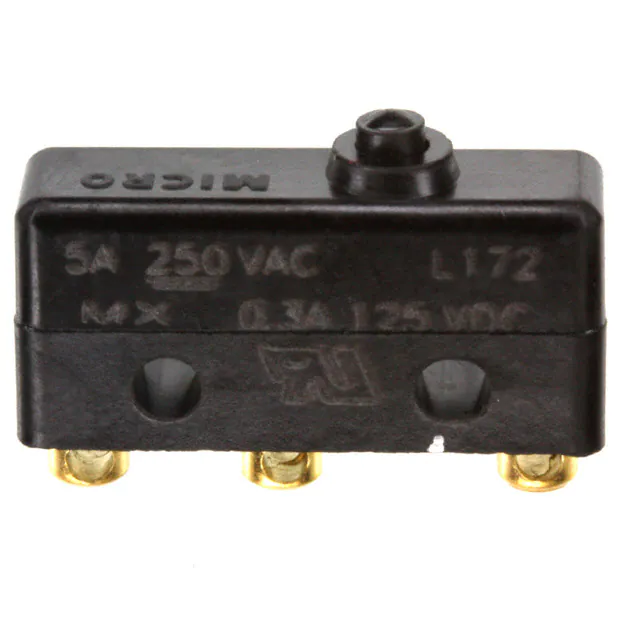

11SM244SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC), 300mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
|
YZ-2RW84-A2SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
YZ | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 28gf | 3.500gf | 0.750" (19.1mm) | 0.328" (8.3mm) | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
BZ-2RL-A2SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Leaf | Chassis Mount | Screw Terminal | - | - | 141gf | 14gf | 0.689" (17.5mm) | - | 0.050" (1.3mm) | 0.060" (1.5mm) | -55°C ~ 85°C |
|
|
D2JW-01K1A2-MDSWITCH SNAP ACT SPST-NC 0.1A 30V |
0 |
|
Datasheet |
D2JW | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 117gf | 23gf | 0.330" (8.4mm) | 0.214" (5.4mm) | 0.020" (0.5mm) | 0.026" (0.7mm) | -40°C ~ 85°C |
|
|
831340C2.BLSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
83134 | Bulk | Active | SPDT (DB/DM) | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole | PC Pin | - | Actuator Mounted Left Side | 87gf | 18gf | 0.488" (12.4mm) | 0.081" (2.05mm) | 0.037" (0.94mm) | - | -20°C ~ 125°C |
|
|
BZ-2RW80290SWITCH MICRO |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
11SX22-TSWITCH SNAP ACTION SPDT 5A 115V |
0 |
|
Datasheet |
SX | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 115 V | 28 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 71 ~ 141gf | 28gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
