Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ABJ151061SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 200gf | 25gf | 0.217" (5.5mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.010" (0.25mm) | -40°C ~ 85°C |
|
ABS1416409SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 40gf | 3.500gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -40°C ~ 85°C |
|
ABS1510519SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 150gf | 20gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -40°C ~ 85°C |
.jpg)
|
D3V-6G-2C23SWITCH SNAP ACT SPST-NC 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPST-NC | On-Mom | 6A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 50gf | 5.099gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.012" (0.3mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
DH2CB1PASWITCH SNAP ACTION SPDT 0.5A 30V |
0 |
|
Datasheet |
DH | Bulk | Obsolete | SPDT | On-Mom | 500mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 50gf | - | 0.264" (6.7mm) | 0.051" (1.3mm) | 0.025" (0.6mm) | 0.011" (0.3mm) | -25°C ~ 70°C |
|
|
TF2EEH8VP0040WSWITCH SNAP ACT SPST-NC 6A 125V |
0 |
|
Datasheet |
TF2 | Bulk | Active | SPST-NC | On-Mom | 6A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 330gf | 60gf | 0.067" (1.70mm) | 0.068" (1.72mm) | 0.016" (0.4mm) | 0.031" (0.8mm) | -40°C ~ 85°C |
|
|
V-15G-1A5-KSWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
- |
V | Bulk | Active | SPDT | On-Mom | 15A (AC), 100mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 80°C |
|
V15T16-CZ200A02SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
V15T16-DZ400A47SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | - | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
|
V15T16-EZ200A02SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
D3V-6G4-1C25-TSWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 125gf | 14gf | 0.738" (18.7mm) | 0.157" (4.0mm) | 0.031" (0.8mm) | 0.062" (1.6mm) | -25°C ~ 200°C |
|
|
LCS052P00SDCSWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
LCS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 203gf | 50gf | 0.331" (8.40mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.024" (0.6mm) | -40°C ~ 120°C |
|
|
D3V-11-1A5-KSWITCH SNAP ACTION SPDT 11A 250V |
0 |
|
Datasheet |
D3V | Bulk | Obsolete | SPDT | On-Mom | 11A (AC), 600mA (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | IP40 | - | 200gf | 50gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.016" (0.4mm) | 0.040" (1.0mm) | -25°C ~ 105°C |
|
TF2CHK6ST1540CSWITCH SNAP ACTION SPDT 10A 125V |
4 |
|
Datasheet |
TF2 | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 50gf | 7.000gf | 0.600" (15.2mm) | 0.140" (3.6mm) | 0.030" (0.76mm) | 0.051" (1.3mm) | -40°C ~ 85°C |
|
|
PP1-DB7-2A2SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
PP1 | Bulk | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | White Actuator | 300gf | - | 0.738" (18.7mm) | - | - | - | 0°C ~ 85°C |
|
|
ZV50E20F01SWITCH SNAP ACTION SPDT 6A 125V |
0 |
|
Datasheet |
ZV | Bulk | Obsolete | SPDT | On-Mom | 6A (AC) | 125 V | - | Lever, Roller | Through Hole | PC Pin | - | - | 51gf | 9.000gf | 0.689" (17.5mm) | 0.180" (4.6mm) | 0.032" (0.81mm) | 0.035" (0.9mm) | -40°C ~ 120°C |
|

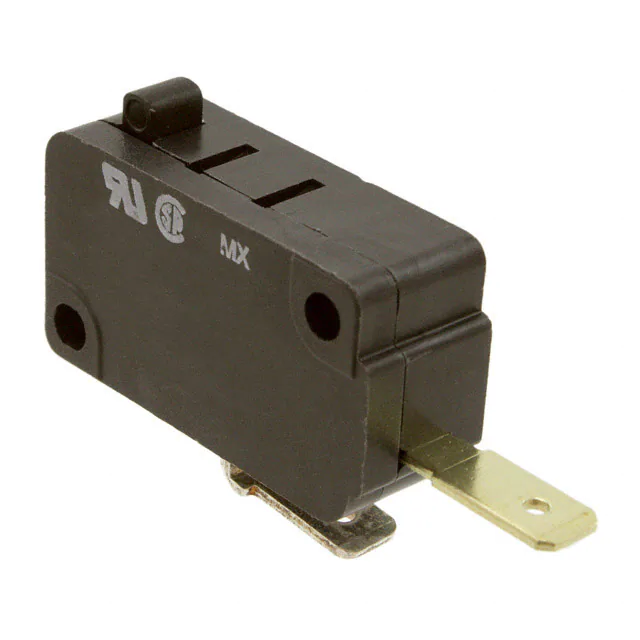

V7-1C29D7SWITCH SNAP ACT SPST-NO 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPST-NO | Off-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 150gf | 25gf | 0.579" (14.7mm) | 0.047" (1.2mm) | 0.010" (0.25mm) | 0.050" (1.27mm) | -40°C ~ 85°C |
|
V7-3A17D8-000-3SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
V7 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 60gf | 11gf | 0.579" (14.7mm) | 0.047" (1.2mm) | - | 0.050" (1.27mm) | -40°C ~ 85°C |
|
|
D3V-165-1C26KSWITCH SNAP ACTION SPDT 16A 250V |
0 |
|
Datasheet |
D3V | Bulk | Active | SPDT | On-Mom | 16A (AC), 10A (DC) | 250 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | IP40 | - | 480gf | 50gf | 0.815" (20.7mm) | 0.063" (1.6mm) | 0.025" (0.6mm) | 0.031" (0.79mm) | -25°C ~ 105°C |
|
|
ABS4513503SWITCH SNAP ACTION SPDT 2A 125V |
0 |
|
Datasheet |
ABS | Bulk | Active | SPDT | On-Mom | 2A (AC/DC) | 125 V | 30 V | Lever, Straight | Through Hole, Right Angle | PC Pin | IP50 - Dust Protected | Actuator Mounted Right Side | 45gf | 3.059gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
