Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
V15T16DZ100A05SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
V15 | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | - | - | - | - | - | - | -25°C ~ 125°C |
|
D2SW-P01BSWITCH SNAP ACTION SPDT 0.1A 30V |
0 |
|
Datasheet |
D2SW | Bulk | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | IP67 - Dust Tight, Waterproof | - | 61gf | 5.000gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.031" (0.79mm) | -20°C ~ 70°C |
|
VM3CQF1102L07SWITCH LIMIT SPDT 16A 125V |
0 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 25gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
|
VM3CQF1101L07SWITCH LIMIT SPDT 16A 125V |
0 |
|
Datasheet |
VM3 | Tray | Active | SPDT | On-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 25gf | 20gf | 0.445" (11.3mm) | 0.303" (7.7mm) | 0.075" (1.9mm) | 0.278" (7.1mm) | -40°C ~ 120°C |
|
|
TD4700BQSWITCH DETECT SPST-NO 0.001A 5V |
0 |
|
Datasheet |
TD4700 | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount | J Lead | - | - | 50gf | - | 0.087" (2.2mm) | - | - | - | -10°C ~ 60°C |
|
SSG-5L3-3HSWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
SSG | Bulk | Active | SPST-NO | Off-Mom | 5A (AC), 4A (DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP40 | - | 61gf | 6.118gf | 0.420" (10.7mm) | - | 0.031" (0.8mm) | 0.040" (1.0mm) | -25°C ~ 125°C |
|
|
LCA01150T09PCSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
LCA | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 33gf | 2.000gf | 0.358" (9.1mm) | 0.219" (5.6mm) | 0.072" (1.83mm) | 0.031" (0.8mm) | -40°C ~ 125°C |
|

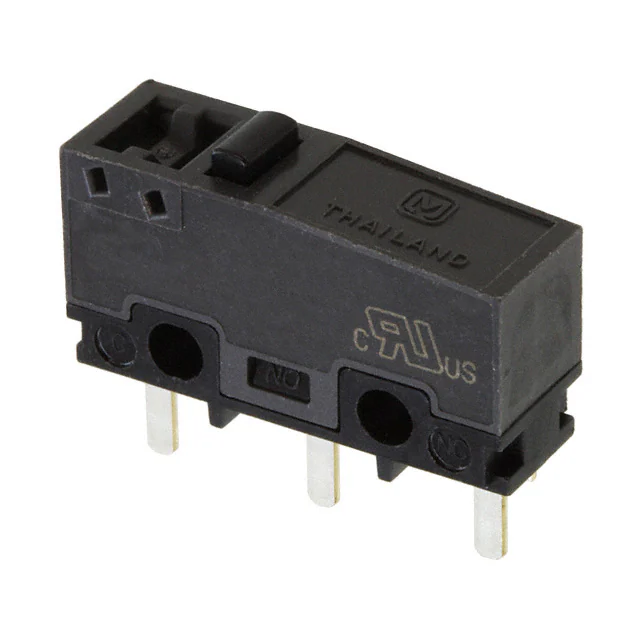

AVM34559SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Through Hole | PC Pin | - | - | 60gf | 4.079gf | 0.571" (14.5mm) | 0.100" (2.5mm) | 0.020" (0.5mm) | 0.032" (0.81mm) | -25°C ~ 85°C |
|
|
ZX10C50C01SWITCH SNAP ACTION SPDT 0.1A 48V |
0 |
|
- |
ZX | Box | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 48 V | Lever, Straight | Surface Mount | Gull Wing | IP40 | - | 30gf | 5.000gf | 0.413" (10.5mm) | 0.134" (3.4mm) | 0.050" (1.3mm) | 0.024" (0.6mm) | -40°C ~ 85°C |
|
|
AVM3235619SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 45gf | 3.059gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
|
AVM3835619SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AVM3 | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 45gf | 3.059gf | 0.345" (8.8mm) | 0.138" (3.5mm) | 0.040" (1.0mm) | 0.062" (1.6mm) | -25°C ~ 85°C |
|
|
HD110V40A12HD1 SUBMIN SEALED SWITCH |
0 |
|
- |
HD1 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 12 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP00 | - | 200gf | - | 0.157" (4.0mm) | 0.040" (1.0mm) | - | 0.045" (1.1mm) | -40°C ~ 125°C |
|
|
V15H22-CP100A02-KSWITCH SNAP ACT SPST-NO 22A 250V |
0 |
|
Datasheet |
V15 | Bulk | Obsolete | SPST-NO | Off-Mom | 22A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 60gf | 10gf | 0.602" (15.3mm) | 0.125" (3.2mm) | 0.047" (1.2mm) | 0.051" (1.3mm) | -25°C ~ 150°C |
|
|
ZX10C30E01SWITCH SNAP ACTION SPDT 0.1A 48V |
0 |
|
- |
ZX | Box | Obsolete | SPDT | On-Mom | 100mA (DC) | - | 48 V | Lever, Simulated Roller | Through Hole | PC Pin | IP40 | - | 35gf | 5.000gf | 0.437" (11.1mm) | 0.150" (3.8mm) | 0.050" (1.3mm) | 0.024" (0.6mm) | -40°C ~ 85°C |
|
VM3AQF1102L06SWITCH LIMIT SPST-NO 16A 125V |
0 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 100gf | 70gf | 0.785" (19.9mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|
VM3AQF1101L06SWITCH LIMIT SPST-NO 16A 125V |
0 |
|
Datasheet |
VM3 | Tray | Active | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | 70gf | 0.785" (19.9mm) | 0.075" (1.9mm) | 0.016" (0.4mm) | 0.047" (1.20mm) | -40°C ~ 120°C |
|
|
MBE5E2SNAP ACTING SWITCH MB |
0 |
|
- |
MB | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 60gf | - | 0.677" (17.2mm) | 0.354" (9.0mm) | 0.060" (1.5mm) | 0.049" (1.25mm) | -40°C ~ 85°C |
|
|
MBE5ESNAP ACTING SWITCH MB |
0 |
|
- |
MB | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 115gf | - | 0.630" (16.0mm) | 0.178" (4.5mm) | 0.028" (0.72mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
|
|
MBE5E3SNAP ACTING SWITCH MB |
0 |
|
- |
MB | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 50gf | - | 0.697" (17.7mm) | 0.394" (10.0mm) | 0.070" (1.8mm) | 0.059" (1.5mm) | -40°C ~ 85°C |
|
|
MBE5B1SNAP ACTING SWITCH MB |
0 |
|
- |
MB | Bulk | Active | SPST-NC | On-Mom | 10A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 85gf | - | 0.472" (12.0mm) | 0.197" (5.0mm) | 0.047" (1.2mm) | 0.030" (0.76mm) | -40°C ~ 85°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
