Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS0850501F035V1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 35gf | 20gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
|
MS0850501F050P1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 20gf | 0.358" (9.1mm) | 0.140" (3.6mm) | - | - | -25°C ~ 85°C |
|
|
MS0850502F030C1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 30gf | 12gf | 0.358" (9.1mm) | 0.150" (3.8mm) | - | - | -25°C ~ 85°C |
|
|
1478667-1SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478669-2SWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
SM3AQF3502L02SWITCH LIMIT SPST-NO 5A 125V |
0 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 95gf | 30gf | 0.512" (13.00mm) | 0.178" (4.5mm) | 0.035" (0.9mm) | 0.045" (1.1mm) | -40°C ~ 120°C |
|
|
MS0850505F050V1ASwitches |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-On | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 20gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
MS0850505F050V2ASwitches |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-On | 5A (AC) | 125 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 20gf | 0.587" (14.90mm) | 0.157" (4.0mm) | - | - | -25°C ~ 85°C |
|
|
HDT0301SWITCH DETECT SPST-NO 0.001A 5V |
0 |
|
Datasheet |
HDT | Tape & Reel (TR) | Active | SPST-NO | Off-Mom | 1mA (DC) | - | 5 V | Angled Toggle (Detector) | Surface Mount, Right Angle | SMD (SMT) Tab | - | - | 35gf | - | - | 0.012" (0.3mm) | - | 0.026" (0.7mm) | -40°C ~ 85°C |
|

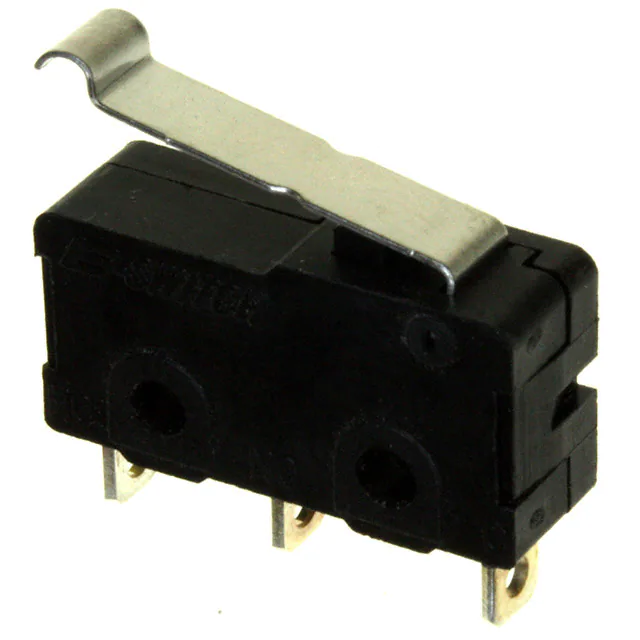

MS0850504F035S1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 35gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850504F020C1CSWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 20gf | 8.000gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850504F045V1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 45gf | 20gf | 0.429" (10.9mm) | 0.125" (3.2mm) | - | - | -25°C ~ 85°C |
|
|
MS0850507F025C1CSWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 12gf | 0.492" (12.5mm) | 0.197" (5.0mm) | - | - | -25°C ~ 85°C |
|
|
MS0850507F045V1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Leaf | Through Hole, Right Angle | PC Pin | - | - | 45gf | 20gf | 0.492" (12.5mm) | 0.197" (5.0mm) | - | - | -25°C ~ 85°C |
|
|
AV36023-ASWITCH SNAP ACTION |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
AV35023-ASWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
AV3 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 50gf | 7.546gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
ZMA03A150L21PCSWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 24 V | Lever, Straight | Through Hole | PC Pin | - | - | 47gf | 7.000gf | 0.330" (8.4mm) | 0.094" (2.4mm) | - | 0.025" (0.6mm) | -40°C ~ 85°C |
|
SM3AQF3501L00SWITCH LIMIT SPST-NO 5A 125V |
0 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 350gf | 170gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
SM3AQF3503L00SWITCH LIMIT SPST-NO 5A 125V |
0 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 350gf | 170gf | 0.413" (10.5mm) | 0.041" (1.05mm) | 0.002" (0.05mm) | 0.015" (0.4mm) | -40°C ~ 120°C |
|
|
SM3AQF3502L04SWITCH LIMIT SPST-NO 5A 125V |
0 |
|
Datasheet |
SM3 | Bag | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Solder Lug | - | - | 50gf | 22gf | 0.413" (10.5mm) | 0.256" (6.5mm) | 0.047" (1.2mm) | 0.059" (1.5mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
