Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MS0850503F025C1CSWITCH SNAP ACT SPST-NO 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 25gf | 12gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
|
MS0850503F010C1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 10gf | 5.000gf | 0.374" (9.5mm) | 0.172" (4.4mm) | - | - | -25°C ~ 85°C |
|
UP3DTANLB04SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 30gf | 5.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 80°C |
|
|
UP3DTANLA04SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC) | 125 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -40°C ~ 80°C |
|
|
ZMA00A080L30PCSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Straight | Through Hole | PC Pin | - | - | 13gf | 2.000gf | 0.374" (9.5mm) | 0.272" (6.9mm) | - | 0.022" (0.55mm) | -40°C ~ 85°C |
|
|
ZMA00A080S06ECSWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ZMA | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 60 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | - | - | 33gf | 5.000gf | 0.421" (10.70mm) | 0.055" (1.4mm) | - | 0.049" (1.25mm) | -40°C ~ 85°C |
|
|
SS075R102F025S1ASWITCH SNAP ACT SPDT 0.4VA 20V |
0 |
|
Datasheet |
SS | Bulk | Active | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 25gf | 10gf | 0.425" (10.8mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|

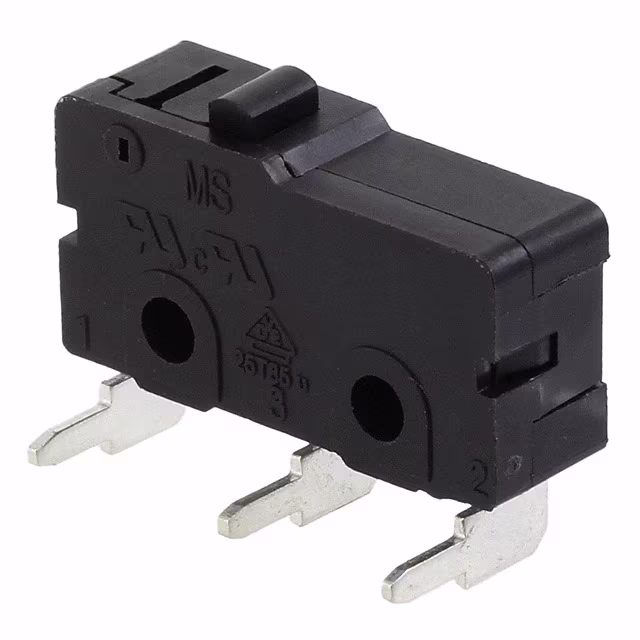

MS0850500F080V2ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 80gf | 25gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
MS0850500F130P1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 130gf | 40gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
|
MS0850500F150V1ASWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
MS | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 150gf | 40gf | 0.335" (8.5mm) | 0.043" (1.1mm) | - | - | -25°C ~ 85°C |
|
|
LS0851500F160V2A MKSwitches |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 160gf | 40gf | 0.579" (14.7mm) | 0.080" (2.0mm) | - | - | -25°C ~ 85°C |
|
1478604-1SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 200gf | 50gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478605-1SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.187" (4.7mm) | - | - | 300gf | 70gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478606-1SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 20gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478607-1SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | 50gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478608-1SWITCH SNAP ACTION SPDT 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 16A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 300gf | 70gf | 0.583" (14.8mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478618-2SWITCH SNAP ACT SPST-NO 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 120gf | 20gf | 0.606" (15.4mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478619-2SWITCH SNAP ACT SPST-NO 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 200gf | 50gf | 0.606" (15.4mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
1478620-2SWITCH SNAP ACT SPST-NO 16A 125V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST-NO | Off-Mom | 16A (AC) | 125 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 330gf | 70gf | 0.606" (15.4mm) | 0.063" (1.6mm) | 0.016" (0.4mm) | 0.030" (0.76mm) | -20°C ~ 130°C |
|
|
SM-10071SWITCH BASIC SUB MINI PLUNGER |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
