Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
602EN226-6BSWITCH AERO SEALED |
0 |
|
Datasheet |
EN | Bulk | Active | - | - | - | - | - | - | Panel Mount | - | - | - | - | - | - | - | - | - | -54°C ~ 85°C |
|
BNS0298SWITCH SNAP ACTION DPST 6A 250V |
4 |
|
Datasheet |
- | Bag | Active | DPST-NO/NC x 3 | On-Mom, Off-Mom | 6A (AC) | 250 V | - | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2039gf | - | 0.472" (12.0mm) | - | - | - | -5°C ~ 85°C |
|
|
LSXYNB4LSWITCH SNAP ACTION DPDT 10A 120V |
2 |
|
Datasheet |
LSX | Bulk | Active | DPDT (DB/DM) | On-On | 10A (AC), 800mA (DC) | 120 V | 115 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | Explosion Proof | 46gfm | - | - | 65° | 35° | 20° | -29°C ~ 121°C |
|
|
WLS1A00AESW SIDE ROTARY WIRELESS |
3 |
|
Datasheet |
WLS | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary, Roller | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | - | - | - | - | - | - | - | -40°C ~ 85°C |
|
EXA-ARSWITCH SNAP ACTION SPDT 20A 125V |
2 |
|
Datasheet |
EX | Bulk | Active | SPDT | On-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | - | Explosion Proof | 340 ~ 907gf | 227gf | - | 0.219" (5.6mm) | 0.012" (0.3mm) | 25° | -40°C ~ 71°C |
|
|
18HM49SWITCH SNAP ACT SPST-NO 0.1A 28V |
0 |
|
Datasheet |
HM | Bulk | Obsolete | SPST-NO | Off-Mom | 100mA (DC) | - | 28 V | Lever, Straight | Chassis Mount | Cable Leads | - | - | 198gf | 28gf | 0.330" (8.4mm) | - | 0.040" (1.0mm) | 0.003" (0.076mm) | -65°C ~ 260°C |
|
WBX1A00ABASWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 17.5° | 7° | 60° | -40°C ~ 70°C |
|
|
WBX1A00ABA4SWITCH SNAP ACTION SPDT |
3 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Actuator Mounted Left Side | 46gfm | - | - | 17.5° | 7° | 60° | -40°C ~ 70°C |
|
WBX1A12ABASWITCH SNAP ACTION SPDT |
4 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | - | 46gfm | - | - | 17.5° | 7° | 60° | -40°C ~ 70°C |
|
|
201LS47SWITCH SNAP ACTION SPDT 10A 120V |
0 |
|
Datasheet |
LS | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC) | 120 V | - | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | IP67 - Dust Tight, Waterproof | - | 19gfm | 4.078gfm | 5° | 5° | - | 30° | -29°C ~ 71°C |
|
WBX1A00ABJ7ASWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Spring, Rod | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 283gf | - | - | 1.000" (25.4mm) | - | - | -40°C ~ 70°C |
|
|
WBX1A00ABA3SWITCH SNAP ACTION SPDT |
3 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Side Rotary - No Lever | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Actuator Mounted Right Side | 46gfm | - | - | 17.5° | 7° | 60° | -40°C ~ 70°C |
|
|
BNS0292SWITCH SNAP ACTION DPST 6A 250V |
4 |
|
Datasheet |
- | Bag | Active | DPST-NO/NC x 3 | On-Mom, Off-Mom | 6A (AC) | 250 V | - | Bevel Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 2039gf | - | 0.472" (12.0mm) | - | - | - | -5°C ~ 85°C |
|
EA170-23100SWITCH LIMIT DPDT 20A 125V |
5 |
|
Datasheet |
EA170 | Box | Active | DPDT | On-On | 20A (AC), 5A (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -20°C ~ 90°C |
|
|
EA170-22100SWITCH LIMIT DPDT 20A 125V |
5 |
|
Datasheet |
EA170 | Box | Active | DPDT | On-Mom | 20A (AC), 5A (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -20°C ~ 90°C |
|
|
EA170-34100SWITCH LIMIT DPDT 20A 125V |
5 |
|
Datasheet |
EA170 | Box | Active | DPDT | On-Mom | 20A (AC), 5A (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -20°C ~ 90°C |
|
|
EA170-13100SWITCH LIMIT DPDT 20A 125V |
3 |
|
Datasheet |
EA170 | Box | Active | DPDT | On-On | 20A (AC), 5A (DC) | 125 V | 125 V | Side Rotary - No Lever | Chassis Mount | Screw Terminal | - | - | - | - | - | - | - | - | -20°C ~ 90°C |
|

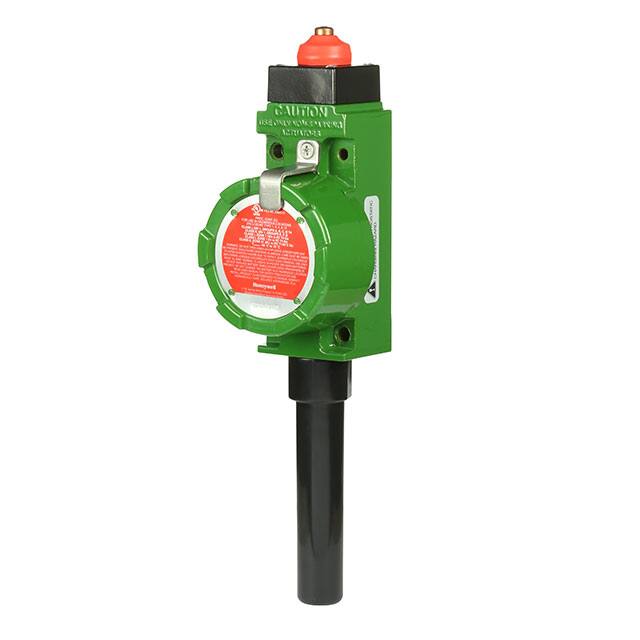

WBX1A00ABCSWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 2041gf | - | 2.281" (57.94mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 70°C |
|
WBX1A14ABCSWITCH SNAP ACTION SPDT |
0 |
|
Datasheet |
WBX | Bulk | Obsolete | SPDT | On-Mom | - | - | - | Round (Pin Plunger) | Chassis Mount | Wireless | IP67 - Dust Tight, Waterproof | - | 2041gf | - | 2.281" (57.94mm) | 0.070" (1.78mm) | 0.020" (0.5mm) | 0.190" (4.8mm) | -40°C ~ 70°C |
|
|
12HM19-5SWITCH SNAP ACTION SPDT 3A 115V |
0 |
|
Datasheet |
HM | Bulk | Active | SPDT | On-Mom | 3A (AC), 1A (DC) | 115 V | 28 V | Lever, Straight | Chassis Mount | Cable Leads | - | - | 198gf | 28gf | - | 0.030" (0.8mm) | 0.006" (0.15mm) | 0.003" (0.076mm) | -65°C ~ 125°C |
