Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E79-40ASWITCH SNAP ACTION DPDT 10A 125V |
0 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.300" (7.6mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.175" (4.5mm) | -40°C ~ 85°C |
|
TMCGD6SA2540CSWITCH SNAP ACTION SPDT 10A 125V |
43 |
|
Datasheet |
TM | Bulk | Active | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 30gf | 5.000gf | 0.812" (20.6mm) | 0.312" (7.9mm) | 0.070" (1.8mm) | 0.125" (3.2mm) | -55°C ~ 150°C |
|
V7-1C33D855-002SWITCH SNAP ACT SPST-NC 15A 125V |
0 |
|
Datasheet |
V7 | Bulk | Active | SPST-NC | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 160gf | - | - | - | - | - | -40°C ~ 85°C |
|
|
1SM35SWITCH SNAP ACTION SPDT 5A 250V |
20 |
|
- |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 198gf | 28gf | 0.330" (8.4mm) | 0.030" (0.8mm) | 0.008" (0.2mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
11SX1-H58SWITCH SNAP ACTION SPDT 3A 250V |
44 |
|
- |
SX | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 250 V | 28 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 99gf | 21gf | 0.320" (8.13mm) | 0.020" (0.5mm) | 0.001" (0.025mm) | 0.004" (0.1mm) | -55°C ~ 125°C |
|
ASGGF5BB4AYSWITCH SNAP ACT SPST-NO 1A 125V |
0 |
|
Datasheet |
A | Bulk | Active | SPST-NO | Off-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | Large Red Button | 227gf | 28gf | - | 0.050" (1.27mm) | - | 0.050" (1.27mm) | -55°C ~ 85°C |
|
TFEEJ6ST1640CSWITCH SNAP ACTION SPDT 15A 277V |
74 |
|
Datasheet |
TF | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 277 V | 125 V | Lever, Straight | Chassis Mount | Quick Connect - 0.187" (4.7mm) | - | - | 120gf | 20gf | 0.600" (15.2mm) | 0.250" (6.35mm) | 0.045" (1.1mm) | 0.125" (3.2mm) | -40°C ~ 85°C |
|
11SM1-T2SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
SM | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 250 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder Turret | - | - | 141gf | 28gf | 0.330" (8.4mm) | 0.020" (0.5mm) | 0.004" (0.1mm) | 0.005" (0.13mm) | -55°C ~ 125°C |
|
BZ-2RWT80SWITCH SNAP ACTION SPDT 15A 125V |
58 |
|
Datasheet |
BZ | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Lever, Straight | Chassis Mount | Screw Terminal | - | - | 71gf | 14gf | 0.750" (19.1mm) | - | 0.050" (1.3mm) | 0.219" (5.6mm) | -55°C ~ 85°C |
|
|
311SM1005-H58SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
SM | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.058" (Round) | - | - | 30gf | 5.099gf | 0.453" (11.5mm) | 0.120" (3.0mm) | 0.027" (0.7mm) | 0.026" (0.7mm) | -55°C ~ 125°C |
|
X0229189SWITCH SNAP ACTION SPDT 6A 250V |
0 |
|
Datasheet |
83180 | Bulk | Obsolete | SPDT | On-Mom | 6A (AC/DC) | 250 V | 24 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | Cable Length 0.5m | 64gf | 20gf | 0.437" (11.1mm) | - | 0.016" (0.4mm) | 0.094" (2.4mm) | -40°C ~ 105°C |
|
|
ZW50F90AW1SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
ZW | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 203gf | 50gf | 0.330" (8.4mm) | 0.047" (1.2mm) | 0.008" (0.2mm) | 0.025" (0.6mm) | -40°C ~ 105°C |
|
|
BA-1R3511SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BA | Bulk | Obsolete | SPDT | On-Mom | 15A (AC), 400mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 78 ~ 184gf | 30gf | 0.680" (17.3mm) | 0.040" (1.0mm) | 0.001" (0.025mm) | - | -55°C ~ 85°C |
|
|
BZ-R173-P4SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
Datasheet |
BZ | Bulk | Obsolete | SPDT | On-Mom | 15A (AC) | 125 V | - | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 198 ~ 283gf | - | 0.625" (15.9mm) | 0.012" (0.3mm) | 0.0005" (0.013mm) | 0.005" (0.13mm) | -55°C ~ 85°C |
|
|
ADPFC2W04ACSWITCH SNAP ACTION DPDT 15A 125V |
47 |
|
Datasheet |
A | Bulk | Active | DPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 624gf | 57gf | 0.718" (18.24mm) | 0.281" (7.14mm) | - | 0.062" (1.6mm) | -55°C ~ 85°C |
|
DS2D6AQ1SWITCH SNAP ACTION DPDT 10A 125V |
21 |
|
Datasheet |
DS | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.350" (8.9mm) | - | - | 0.125" (3.2mm) | -40°C ~ 85°C |
|
|
GPTCRM11SWITCH SNAP ACTION SPDT 15A 125V |
0 |
|
- |
GP | Bulk | Active | SPDT | On-Mom | 15A (AC) | 125 V | - | Lever, Roller | Chassis Mount | Screw Terminal | - | - | 158gf | 43gf | 1.172" (29.8mm) | 0.106" (2.7mm) | 0.020" (0.5mm) | 0.094" (2.4mm) | 0°C ~ 55°C |
|

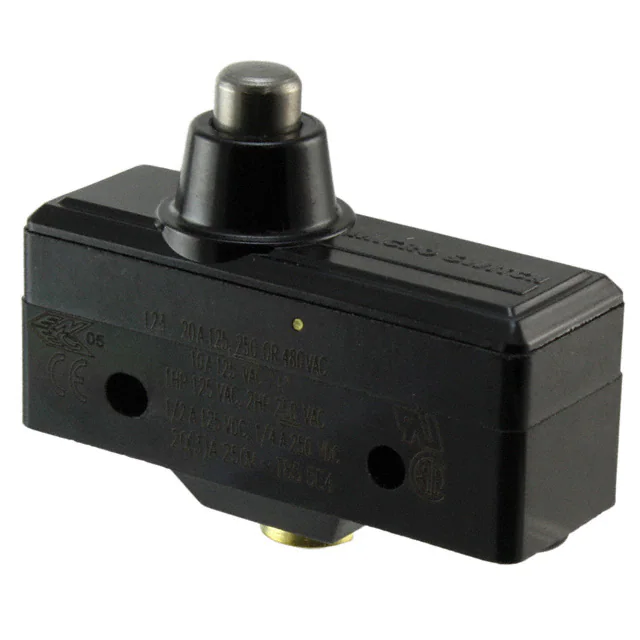

YA-2RB-A2SWITCH SNAP ACT SPST-NO 20A 125V |
0 |
|
Datasheet |
YA | Bulk | Obsolete | SPST-NO | Off-Mom | 20A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | - | - | 397 ~ 624gf | 283gf | 1.030" (26.2mm) | 0.050" (1.27mm) | 0.007" (0.18mm) | 0.094" (2.4mm) | -55°C ~ 85°C |
|
VM3SCQF3003L03SWITCH LIMIT SPDT 10A 125V |
45 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Straight | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 180gf | 80gf | 0.587" (14.90mm) | 0.138" (3.5mm) | 0.060" (1.5mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
|
VM3SCQF1803L02SWITCH LIMIT SPDT 10A 125V |
30 |
|
Datasheet |
VM3S | Box | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 36 V | Lever, Simulated Roller | Chassis Mount | Wire Leads | IP67 - Dust Tight, Waterproof | - | 120gf | 50gf | 0.736" (18.70mm) | 0.118" (3.0mm) | 0.050" (1.3mm) | 0.039" (1.0mm) | -40°C ~ 120°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
