Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

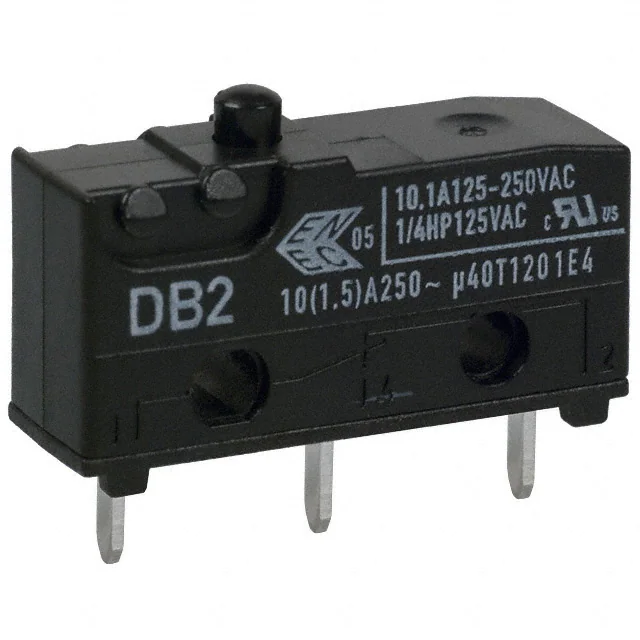

DB2CC1AASWITCH SNAP ACTION SPDT 10A 125V ZF Electronics |
5,876 |
|
- |
DB | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Through Hole | PC Pin | IP50 - Dust Protected | - | 250gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

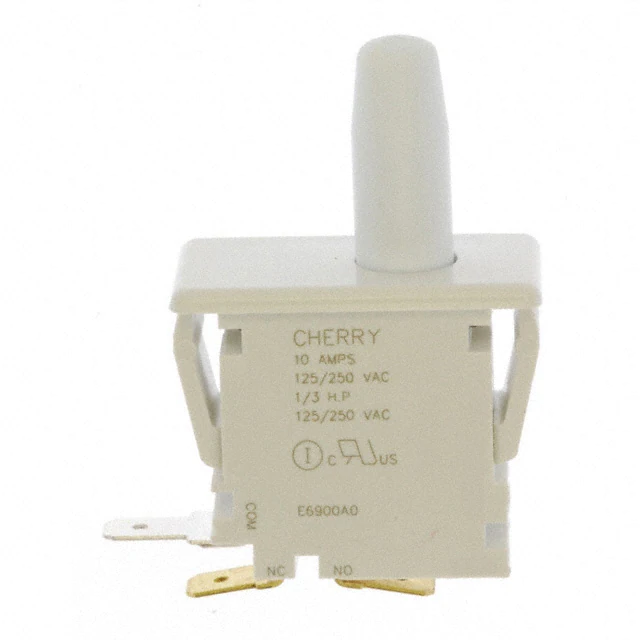

E69-00ASWITCH SNAP ACTION SPDT 10A 125V ZF Electronics |
9,241 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.720" (18.3mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.375" (9.5mm) | -40°C ~ 85°C |
|

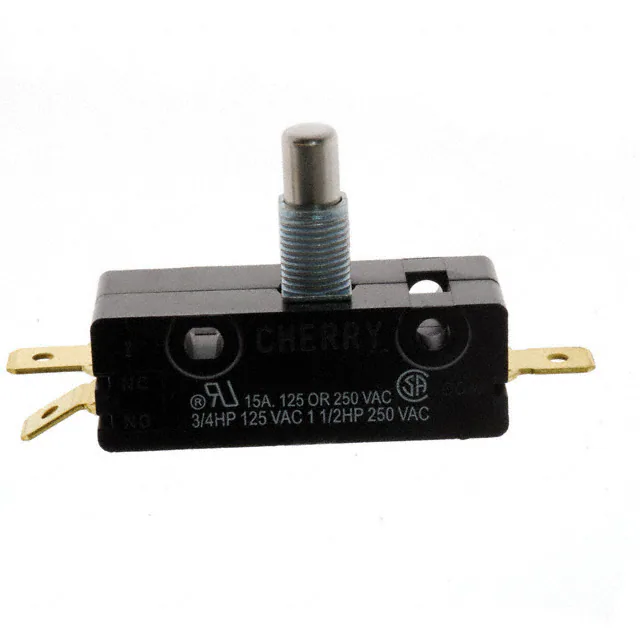

E13-00MSWITCH SNAP ACTION SPDT 15A 125V ZF Electronics |
7,898 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Overtravel Plunger | Panel Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.812" (20.6mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.219" (5.6mm) | -40°C ~ 105°C |
|
E13-00ESWITCH SNAP ACTION SPDT 15A 125V ZF Electronics |
779 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 425gf | - | 0.285" (7.24mm) | 0.050" (1.27mm) | 0.015" (0.38mm) | 0.100" (2.54mm) | -40°C ~ 105°C |
|
DC1C-A1AASWITCH SNAP ACTION SPDT 5A 125V ZF Electronics |
22,044 |
|
Datasheet |
DC | Bulk | Active | SPDT | On-Mom | 5A (AC), 1A (DC) | 125 V | 48 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | IP67 - Dust Tight, Waterproof | - | 204gf | - | 0.330" (8.4mm) | 0.040" (1.0mm) | 0.004" (0.1mm) | 0.025" (0.6mm) | -40°C ~ 120°C |
|

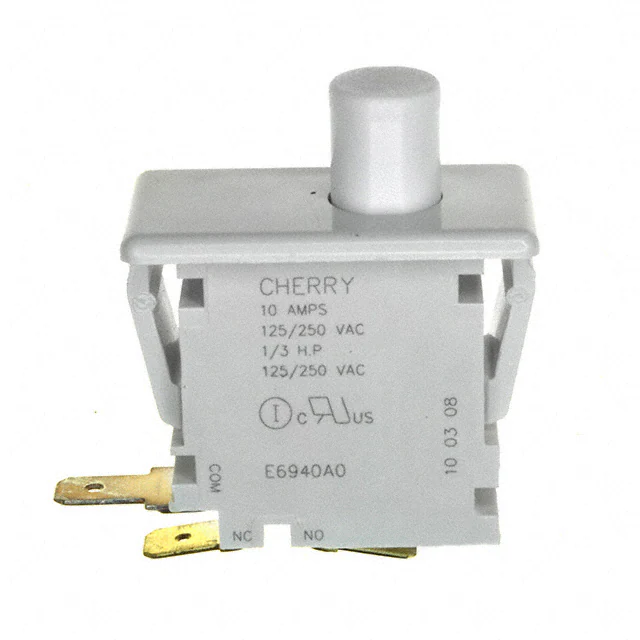

E69-40ASWITCH SNAP ACTION SPDT 10A 125V ZF Electronics |
11,978 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 425gf | - | 0.300" (7.6mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.175" (4.5mm) | -40°C ~ 85°C |
|
E13-00HSWITCH SNAP ACTION SPDT 15A 125V ZF Electronics |
674 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 15A (AC), 2A (DC) | 125 V | 48 V | Lever, Straight | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 100gf | - | 0.312" (7.9mm) | 0.250" (6.35mm) | 0.093" (2.36mm) | 0.187" (4.75mm) | -40°C ~ 105°C |
|

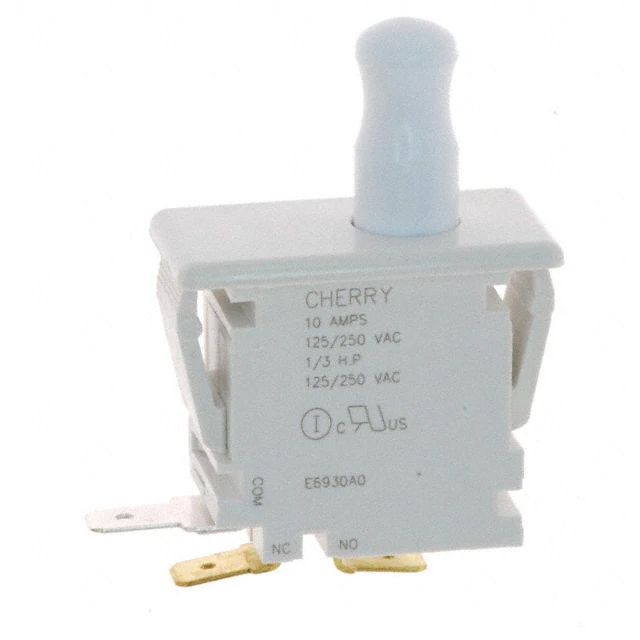

E69-30ASWITCH SNAP ACTION SPDT 10A 125V ZF Electronics |
2,756 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 10A (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 425gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|
E68-30ASWITCH SNAP ACT SPDT 0.1A 125V ZF Electronics |
1,399 |
|
Datasheet |
E | Bulk | Active | SPDT | On-Mom | 100mA (AC) | 125 V | - | Push-Pull Plunger | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | Pull On Lock | 425gf | - | 0.610" (15.5mm) | 0.125" (3.2mm) | 0.045" (1.1mm) | 0.100" (2.54mm) | -40°C ~ 85°C |
|

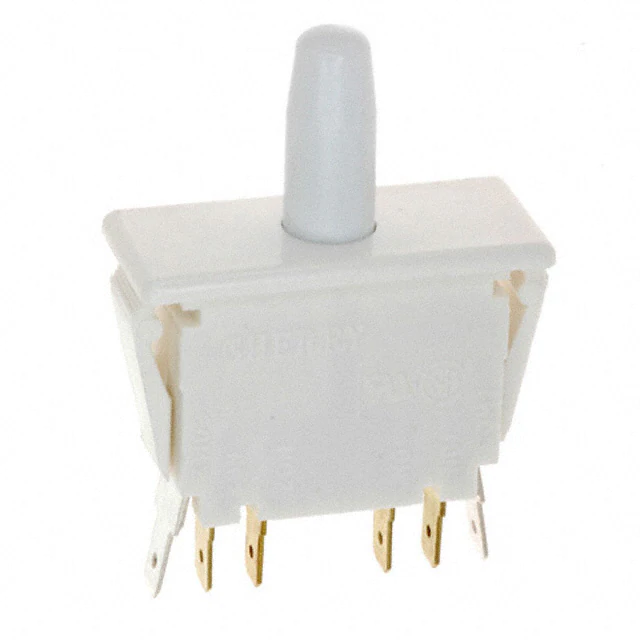

E79-00ASWITCH SNAP ACTION DPDT 10A 125V ZF Electronics |
18,343 |
|
Datasheet |
E | Bulk | Active | DPDT | On-Mom | 10A (AC) | 125 V | - | Round (Pin Plunger) | Panel Mount, Snap-In | Quick Connect - 0.187" (4.7mm) | - | - | 680gf | - | 0.720" (18.3mm) | 0.125" (3.2mm) | 0.075" (1.9mm) | 0.375" (9.5mm) | -40°C ~ 85°C |
