Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XCSD3918N12SWITCH SAFETY LMT 3PST 1.5A 240V |
3 |
|
Datasheet |
XCSD | Box | Active | 3PST-2NC/1NO | On-Mom, Off-Mom | 1.5A (AC), 100mA (DC) | 240 V | 250 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
D4C-6403SWITCH SNAP ACTION SPDT 0.1A 30V |
2 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (DC) | - | 30 V | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

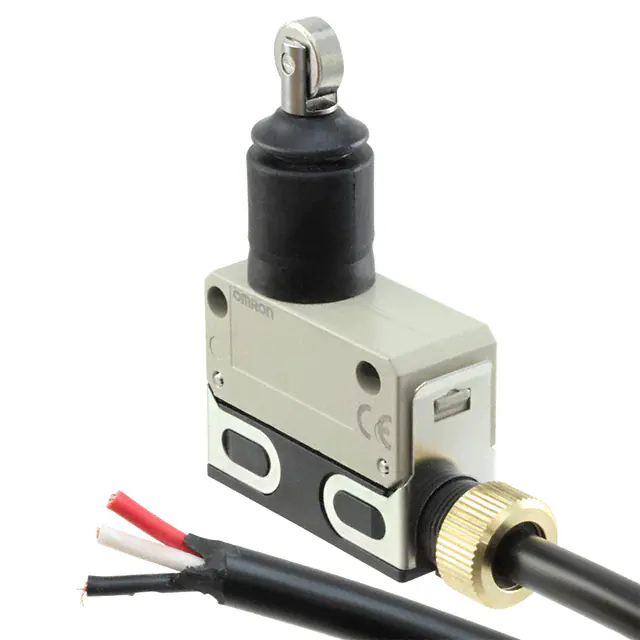

D4E-1D21NSWITCH SNAP ACTION SPDT 5A 125V |
2 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.625" (41.3mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
3SE52320HK50SWITCH LIMIT DPST 6A 125V |
6 |
|
Datasheet |
3SE5 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | - |
|
D4C-2203SWITCH SNAP ACTION SPDT 5A 125V |
10 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Cross Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4C-3502SWITCH SNAP ACTION SPDT 4A 30V |
2 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 4A (DC) | - | 30 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
WLNJLENSWITCH SNAP ACTION SPDT 10A 125V |
5 |
|
Datasheet |
WL-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Spring, Coil | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 150gf | - | - | 0.787" (20.0mm) | - | - | -10°C ~ 80°C |
|

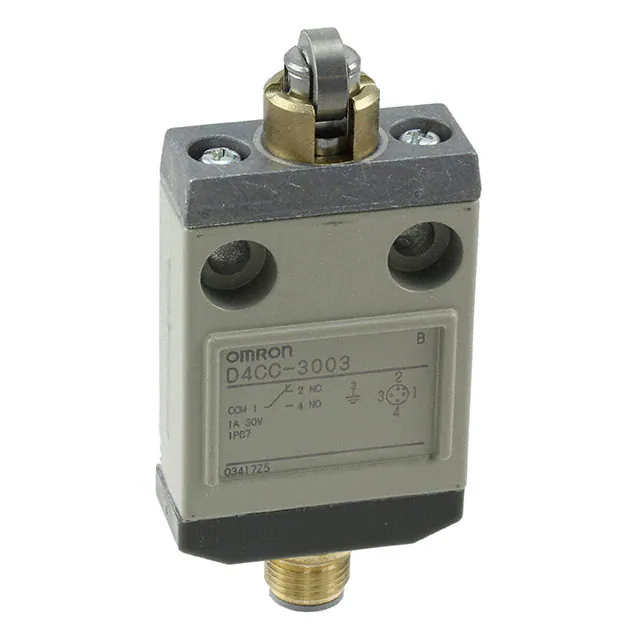

D4CC-3003SWITCH SNAP ACTION SPDT 1A 30V |
4 |
|
Datasheet |
D4CC | Bulk | Active | SPDT | On-Mom | 1A (DC) | - | 30 V | Cross Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|

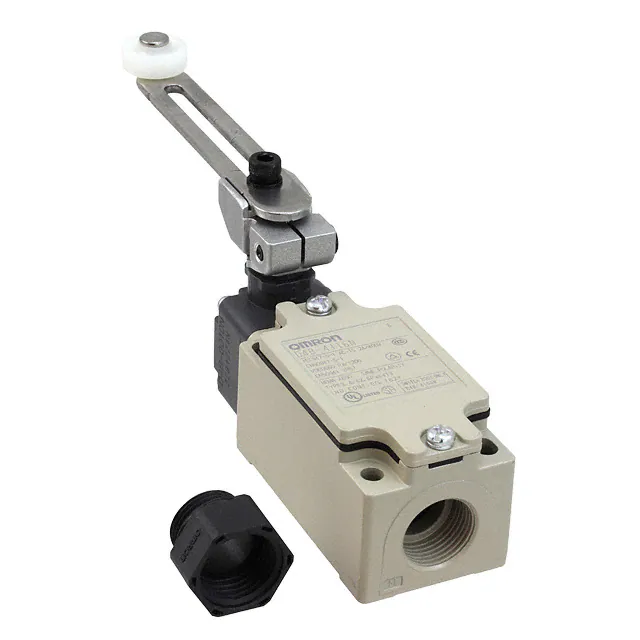

D4B-4A16NNPTSWITCH SNAP ACT DPST-NC 10A 120V |
2 |
|
Datasheet |
D4B-N | Bulk | Active | DPST-NC | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 960gf | 150gf | 21° | 21° | - | 50° | -40°C ~ 80°C |
|
WLCA2-G1LD-NSWITCH LIMIT SPDT 10A 125V |
3 |
|
Datasheet |
WL-N | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1360gf | 120gf | - | 15° | 12° | 70° | -10°C ~ 80°C |
|
ZC-Q2255-L4SWITCH SNAP ACTION SPDT 10A 125V |
3 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Status Indicator | 1200gf | 500gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
3SE54130CD201EA2SWITCH LIMIT DPST 6A 125V |
4 |
|
Datasheet |
3SE5 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1530gf | - | - | - | - | - | - |
|
D4C-4241SWITCH SNAP ACT SPDT 0.1A 125V |
2 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Oil Resistant Cable 3m | 1200gf | 450gf | 1.228" (31.2mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
|
D4C-1450SWITCH SNAP ACTION SPDT 5A 250V |
4 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC), 4A (DC) | 250 V | 30 V | Spring, Rod | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 150gf | - | - | 15° | - | - | -10°C ~ 70°C |
|
|
D4B-4116N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
4 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 960gf | 150gf | 21° | 21° | 12° | 50° | -40°C ~ 80°C |
|

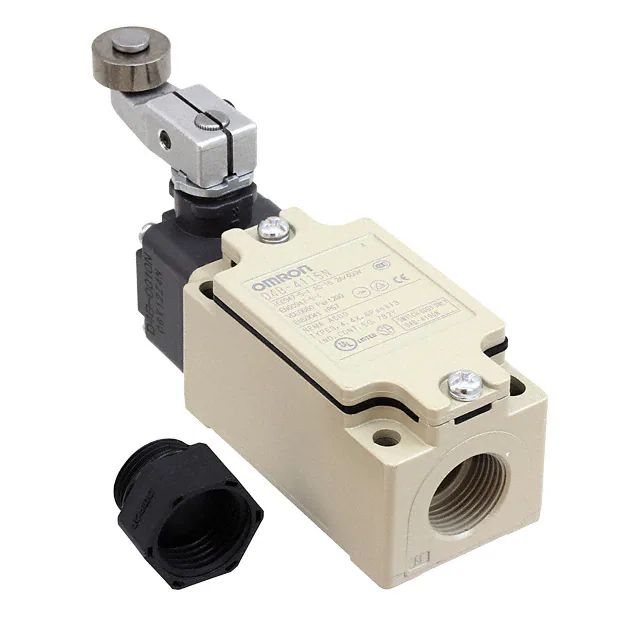

D4B-4115N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
2 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Side Rotary, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | Stainless Steel Roller | 960gf | 150gf | 21° | 21° | 12° | 50° | -40°C ~ 80°C |
|
3SE51120BD02SWITCH LIMIT DPST 6A 125V |
8 |
|
Datasheet |
3SE5 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Roller Plunger | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | - |
|
D4B-4171NSWITCH LIMIT DPST 10A 125V |
2 |
|
Datasheet |
D4B-N | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.890" (48.0mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.197" (5.0mm) | -40°C ~ 85°C |
|
3SE51220CB01SWITCH LIMIT DPST 6A 125V |
7 |
|
Datasheet |
3SE5 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | - | 2039gf | - | - | - | - | - | - |
|
D4C-2502SWITCH SNAP ACTION SPDT 5A 125V |
5 |
|
Datasheet |
D4C | Bulk | Active | SPDT | On-Mom | 5A (AC) | 125 V | - | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 5m, Status Indicator | 1200gf | 450gf | 1.122" (28.5mm) | 0.071" (1.8mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 70°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
