Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

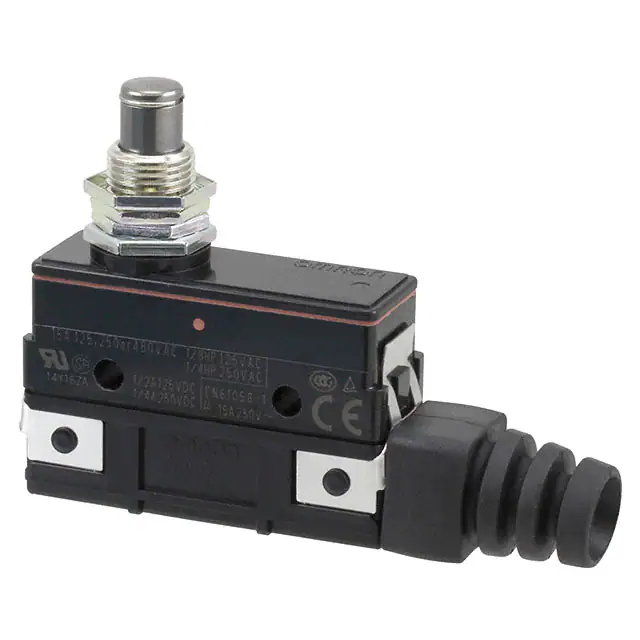

Z-15GQA55-B5VSWITCH SNAP ACTION SPDT 15A 125V |
6 |
|
Datasheet |
Z | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Overtravel Plunger | Panel Mount | Screw Terminal | IP62 | - | 540gf | 114gf | 0.859" (21.8mm) | 0.071" (1.8mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -15°C ~ 80°C |
|
83870102SWITCH SNAP ACTION DPST 6A 120V |
11 |
|
Datasheet |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 2m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
83873101SWITCH SNAP ACTION DPST 6A 120V |
10 |
|
Datasheet |
83870 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 1m | 15gfm | - | - | - | - | - | -25°C ~ 70°C |
|

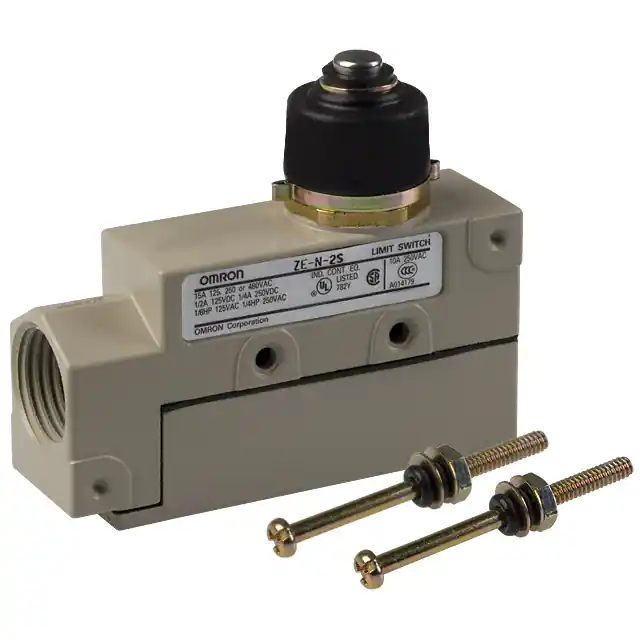

ZE-N-2SSWITCH SNAP ACTION SPDT 15A 125V |
4 |
|
Datasheet |
ZE | Bulk | Active | SPDT | On-Mom | 15A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP65 - Dust Tight, Water Resistant | - | 800gf | 240gf | 1.805" (45.8mm) | 0.080" (2.0mm) | 0.004" (0.1mm) | 0.197" (5.0mm) | -10°C ~ 80°C |
|
SHL-D55SWITCH SNAP ACTION SPDT 10A 125V |
17 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 10A (AC), 5A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 200gf | 1.339" (34.0mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|

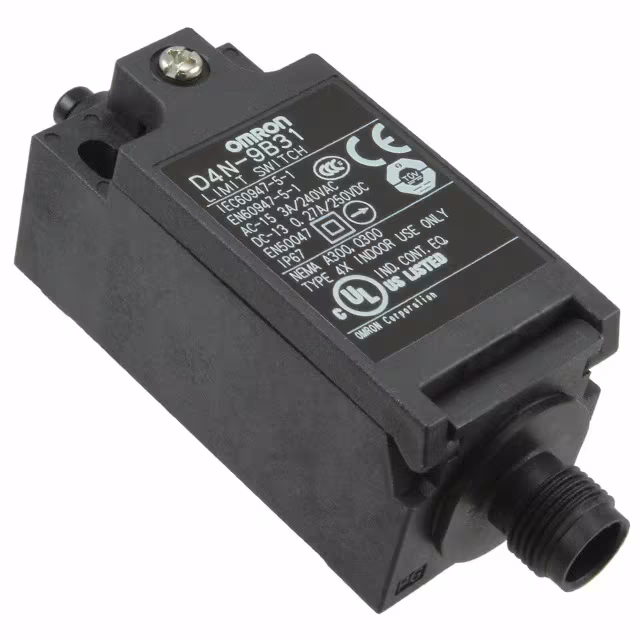

D4N-9B31SWITCH SNAP ACT DPST-NC 3A 240V |
9 |
|
Datasheet |
D4N | Bulk | Active | DPST-NC | On-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 663gf | 153gf | 0.715" (18.2mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.158" (4.0mm) | -30°C ~ 70°C |
|
83732327SWITCH SNAP ACTION SPDT 5A 250V |
12 |
|
Datasheet |
83732 | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Roller Plunger | Panel Mount | Cable Leads | IP66 - Dust Tight, Water Resistant | Cable Length 2m | 1530gf | - | - | - | 0.008" (0.2mm) | - | -5°C ~ 70°C |
|
83881101SWITCH SNAP ACTION DPST 6A 250V |
17 |
|
Datasheet |
83880 | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 8A (DC) | 250 V | 24 V | Roller Plunger | Chassis Mount | Cable Leads | IP66/IP67 - Dust Tight, Water Resistant, Waterproof | Cable Length 1m | 1020gf | - | - | - | - | - | -25°C ~ 70°C |
|
XCMD2102M12SWITCH LIMIT DPDT 1A 24V |
6 |
|
Datasheet |
XCMD | Box | Active | DPDT (DB/DM) | On-Mom, Off-Mom | 1A (DC) | - | 24 V | Lever, Roller | Chassis Mount | Connector | IP66/IP69 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|
SHL-Q-2255-01SWITCH SNAP ACT SPDT 0.1A 125V |
13 |
|
Datasheet |
SHL | Bulk | Active | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1000gf | 200gf | 1.695" (43.05mm) | 0.060" (1.5mm) | 0.020" (0.5mm) | 0.079" (2.0mm) | -10°C ~ 80°C |
|

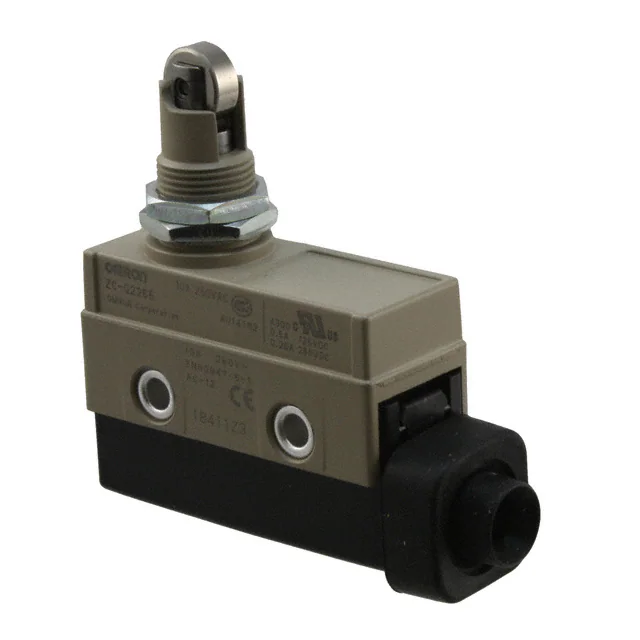

ZC-Q2255SWITCH SNAP ACTION SPDT 10A 125V |
9 |
|
Datasheet |
ZC | Bulk | Active | SPDT | On-Mom | 10A (AC), 6A (DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.866" (47.4mm) | 0.060" (1.5mm) | 0.008" (0.2mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
XCKM110H7SWITCH SNAP ACTION DPST 3A 240V |
10 |
|
Datasheet |
- | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

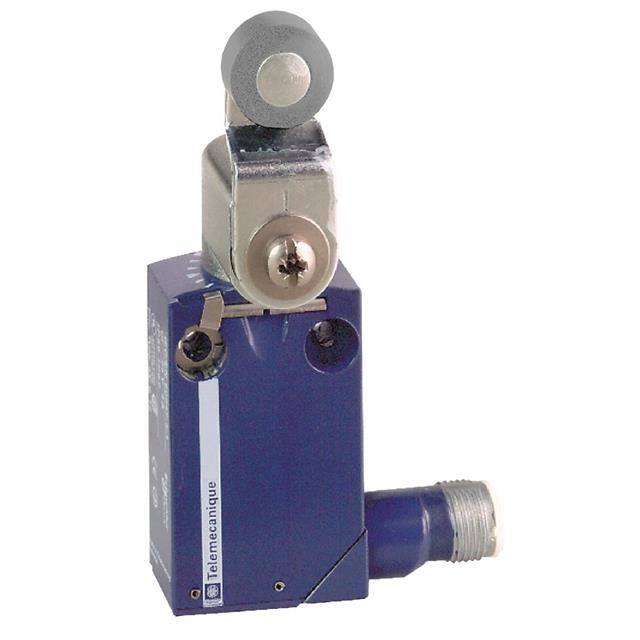

XCMD2116C12SWITCH LIMIT DPST 3A 50V |
4 |
|
Datasheet |
XCMD | Box | Active | DPST-NO/NC | On-Mom, Off-Mom | 3A (AC), 220mA (DC) | 50 V | 50 V | Side Rotary, Roller | Chassis Mount | Connector | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - | - | - | - | - | - | - | -25°C ~ 70°C |
|

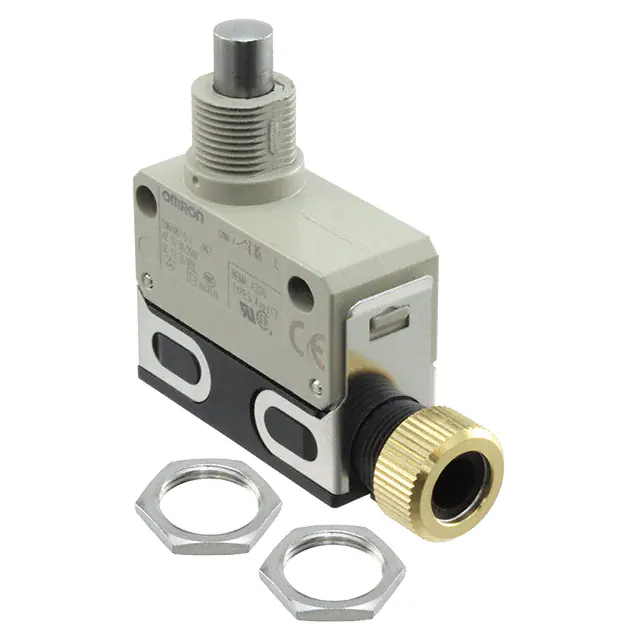

D4E-1C20NSWITCH SNAP ACTION SPDT 5A 125V |
3 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.000" (25.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4E-1C10NSWITCH SNAP ACTION SPDT 1A 125V |
5 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.000" (25.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D4E-1F10NSWITCH SNAP ACTION SPDT 1A 125V |
18 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.180" (30.0mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|
D5B-1533SWITCH SNP ACT SPST-NC 0.03A 30V |
6 |
|
Datasheet |
D5B | Bulk | Active | SPST-NC | On-Mom | 30mA (DC) | - | 30 V | Spring, Wire | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Cable Length 3m | 5.000gf | - | - | 0.551" (14.0mm) | - | - | -10°C ~ 70°C |
|

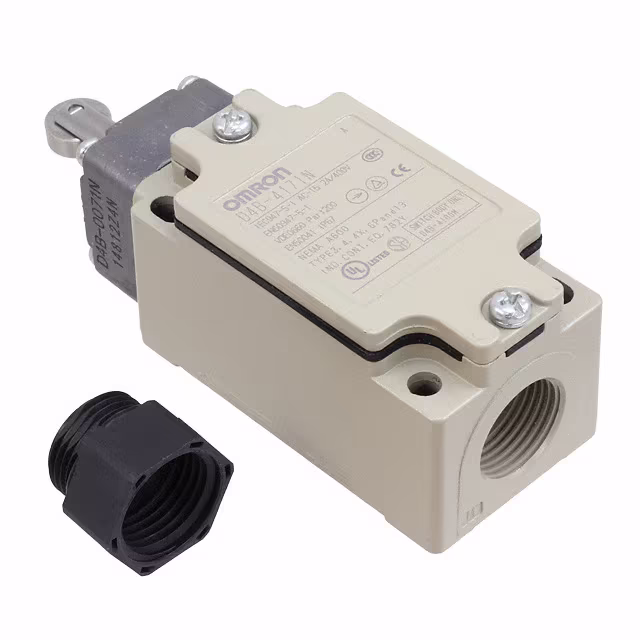

D4B-4171N-NPTSWITCH SNAP ACTION SPDT 10A 120V |
2 |
|
Datasheet |
D4B-N | Bulk | Active | SPDT (DB/DM) | On-Mom | 10A (AC), 6A (DC) | 120 V | 30 V | Roller Plunger | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1900gf | 200gf | 1.890" (48.0mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.197" (5.0mm) | -40°C ~ 80°C |
|
BME6-2RQ173SWITCH SNAP ACTION SPDT 22A 125V |
8 |
|
Datasheet |
E6 | Bulk | Active | SPDT | On-Mom | 22A (AC), 500mA (DC) | 125 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Steel Plunger | 255 ~ 368gf | 113gf | 1.500" (38.1mm) | 0.015" (0.4mm) | 0.002" (0.05mm) | 0.219" (5.6mm) | -32°C ~ 71°C |
|
D4E-1A10NSWITCH SNAP ACTION SPDT 1A 125V |
2 |
|
Datasheet |
D4E-xN | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 1.235" (31.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
Limit Switches Electronic Components
Frequently Asked Questions
Q1: What products are included in Limit Switches?
This category includes related Limit Switches subcategories and electronic components from multiple manufacturers. Select a lower-level category to view available part numbers.
Q2: Can I request a quotation for Limit Switches components?
Yes. Send us the part numbers and required quantities, and our team will provide sourcing and quotation support.
Q3: Are datasheets and technical information available?
Yes. Datasheets and technical information are available on supported final product pages and product listings.
Q4: Do you support BOM sourcing?
Yes. We support BOM matching, component procurement and alternative sourcing for Limit Switches and other electronic components.
