Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E14-01MSWITCH SNAP ACT SPST-NO 25A 125V |
3,431 |
|
- |
E | Bulk | Obsolete | SPST-NO | Off-Mom | 25A (AC), 2A (DC) | 125 V | 48 V | Overtravel Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | - | - | 850gf | - | 0.775" (19.69mm) | 0.100" (2.54mm) | 0.015" (0.38mm) | 0.168" (4.27mm) | -40°C ~ 105°C |
|

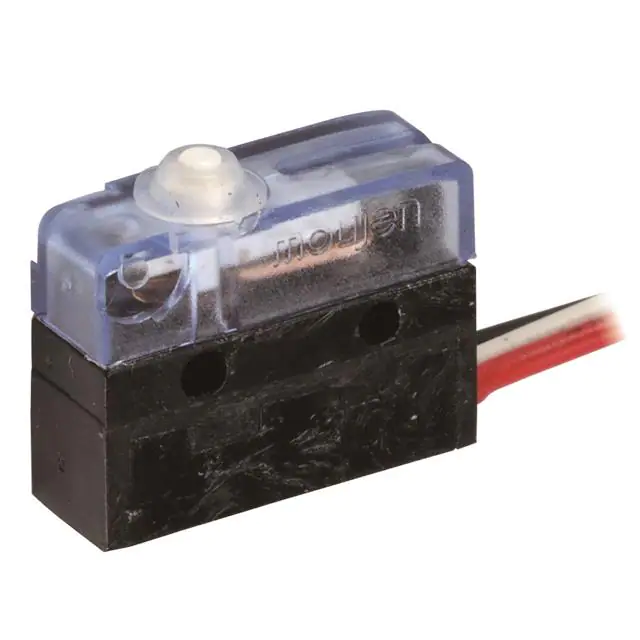

MZ-7513-RUSWITCH SNAP ACT SPDT 0.75A 240V |
360 |
|
Datasheet |
MZ-7 | Bulk | Active | SPDT | On-Mom | 750mA (AC), 270mA (DC) | 240 V | 250 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 171gf | 145gf | - | 0.015" (0.4mm) | 0.012" (0.3mm) | 0.035" (0.9mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1734 PH-20--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 20A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 200gf | 42gf | - | 0.138" (3.5mm) | 0.020" (0.5mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1733 PH-20--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 20A (AC), 0.5A (DC) | 250 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 130gf | 21gf | - | 0.280" (7.1mm) | 0.062" (1.6mm) | 0.157" (4.0mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1326--T2SPDT Snap-Act Basic Switch |
16,500 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | PTFE Roller | 450gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
|
|
MJG--MJ2-1326 PH--T2SPDT Snap-Act Basic Switch |
16,500 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | PTFE Roller | 450gf | 114gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521132--T2SPDT Pos-Open 2-contact Switch |
5,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Roller Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 300gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|
|
MJG--MJ3-521133--T2SPDT Pos-Open 2-contact Switch |
5,000 |
|
- |
MJ3 | Bulk | Active | SPDT | On-Mom | 5A (AC), 0.4A (DC) | 250 V | 250 V | Cross Roller Plunger | Chassis Mount | Quick Connect - 0.250" (6.3mm) | IP40 | - | 400gf | 300gf | - | 0.020" (0.5mm) | 0.002" (0.05mm) | 0.217" (5.5mm) | -25°C ~ 80°C |
|
|
KH-9012-5HLLCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Lever, Straight | Chassis Mount | Quick Connect | IP40 | - | 150gf | - | 0.602" (15.3mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
|
|
KH-9012-5PBCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Round (Pin Plunger) | Chassis Mount | Quick Connect | IP40 | - | 250gf | - | 0.579" (14.7mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-5HRSCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Lever, Roller | Chassis Mount | Quick Connect | IP40 | - | 250gf | - | 0.812" (20.6mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-5HLCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Lever, Straight | Chassis Mount | Quick Connect | IP40 | - | 250gf | - | 0.579" (14.7mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-PBFCSWITCH SNAP ACTION SPDT 15A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Quick Connect | IP40 | - | 500gf | - | 0.579" (14.7mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-5PBFCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Round (Pin Plunger) | Chassis Mount | Quick Connect | IP40 | - | 250gf | - | 0.579" (14.7mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-5HRMCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Lever, Roller | Chassis Mount | Quick Connect | IP40 | - | 150gf | - | 0.812" (20.6mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
|
|
KH-9012-HLCSWITCH SNAP ACTION SPDT 15A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Quick Connect | IP40 | - | 600gf | - | 0.579" (14.7mm) | 0.063" (1.6mm) | - | 0.012" (0.3mm) | -25°C ~ 80°C |
|
|
KH-9012-HRMCSWITCH SNAP ACTION SPDT 15A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 15A (AC), 6A (DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Quick Connect | IP40 | - | 400gf | - | 0.812" (20.6mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
|
|
KH-9012-5HLRCSWITCH SNAP ACTION SPDT 5A 125V |
2,000 |
|
Datasheet |
* | Bulk | Active | SPDT | On-Mom | 5A (AC/DC) | 125 V | 14 V | Lever, Simulated Roller | Chassis Mount | Quick Connect | IP40 | - | 150gf | - | 0.720" (18.3mm) | 0.157" (4.0mm) | - | 0.024" (0.6mm) | -25°C ~ 80°C |
|
LCGHX1A10RCESWITCH SNAP ACTION SPDT 1A 125V |
2,080 |
|
Datasheet |
LC | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 250 V | 30 V | Lever, Roller | Through Hole, Right Angle | PC Pin | - | - | 57gf | 12gf | 0.571" (14.5mm) | 0.140" (3.6mm) | 0.034" (0.86mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|
|
MJG--MJ2-1315--T3SPDT Snap-Act Basic Switch |
50,000 |
|
- |
MJ2 | Bulk | Active | SPDT | On-Mom | 15A (AC), 0.5A (DC) | 250 V | 125 V | Round (Pin Plunger) | Chassis Mount | Screw Terminal | IP40 | Oil Resist Boot Seal | 540gf | 114gf | - | 0.075" (1.9mm) | 0.002" (0.06mm) | 0.063" (1.6mm) | -25°C ~ 80°C |
Limit Switches Electronic Components
Explore Limit Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
