Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UP3DTCOLB04SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 125 V | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 80gf | 21gf | 0.272" (6.9mm) | 0.024" (0.6mm) | 0.005" (0.13mm) | 0.008" (0.2mm) | -25°C ~ 80°C |
|
|
UP3DTCNLA04SWITCH SNAP ACTION SPDT 3A 125V |
0 |
|
Datasheet |
UP03 | Bulk | Active | SPDT | On-Mom | 3A (AC/DC) | 125 V | 125 V | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 50gf | 8.000gf | 0.312" (7.9mm) | 0.120" (3.0mm) | 0.031" (0.8mm) | 0.025" (0.6mm) | -25°C ~ 80°C |
|
|
1977816-1SWITCH SNAP ACTION PCB MOUNT |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | Through Hole | PC Pin | - | - | - | - | - | - | - | - | - |
|
|
1517266-1SWITCH SNAP ACTION SPDT 10A 250V |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | On-Mom | 10A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole, Right Angle | PC Pin | - | - | 200gf | 50gf | 0.579" (14.7mm) | 0.055" (1.4mm) | 0.020" (0.5mm) | 0.031" (0.8mm) | - |
|
NGCMA00PX01A1ASWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | Nylon Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|
NGCMA10AX01A1ASWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | Nylon Roller | 18gfm | 2.534gfm | 25° | 25° | 15° | 65° | -25°C ~ 75°C |
|
NGCMB10AX01NSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|

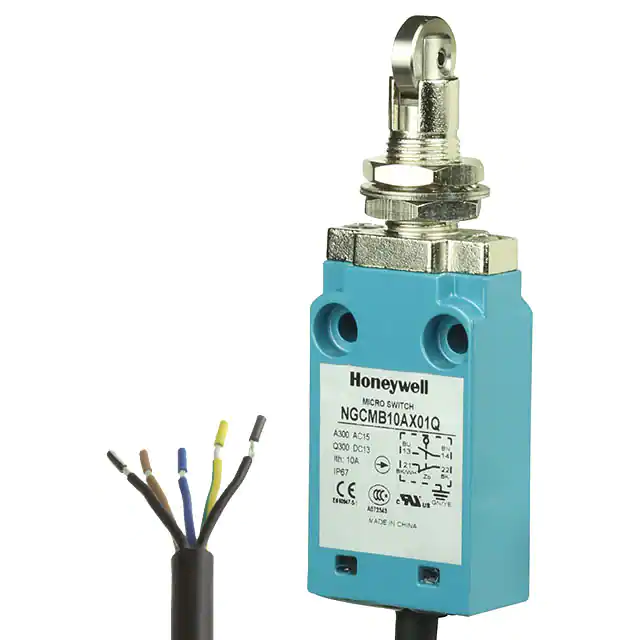

NGCMB10AX01QSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
NGC | Bulk | Obsolete | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Cross Roller Plunger | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
NGCMB10AX07CSWITCH SNAP ACT DPST 10MA 30MV |
0 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 10mA (DC) | - | 30 mV | Roller Plunger | Chassis Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|

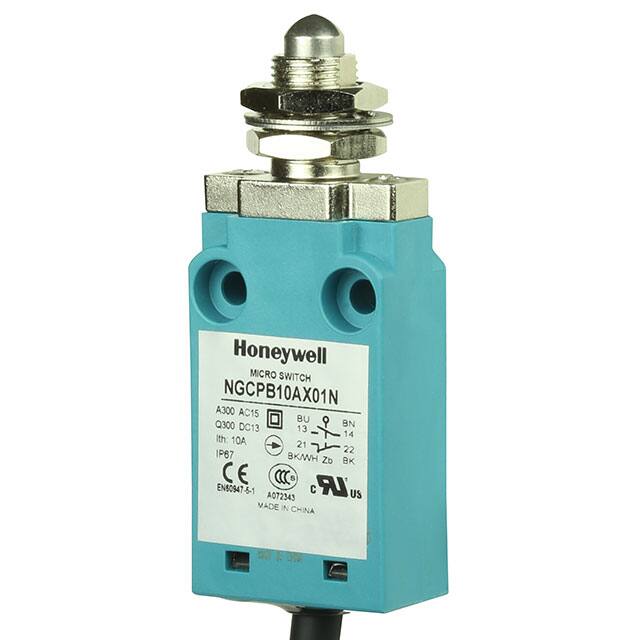

NGCPB10AX01NSWITCH SNAP ACTION DPST 6A 120V |
0 |
|
Datasheet |
NGC | Bulk | Active | DPST-NO/NC | On-Mom, Off-Mom | 6A (AC), 550mA (DC) | 120 V | 125 V | Round (Pin Plunger) | Panel Mount | Cable Leads | IP67 - Dust Tight, Waterproof | - | 1122gf | 306gf | 0.083" (2.1mm) | 0.083" (2.1mm) | 0.047" (1.2mm) | 0.193" (4.9mm) | -25°C ~ 75°C |
|
|
AM1504FSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
AM1 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | Cadmium Free | 160gf | 43gf | 1.188" (30.2mm) | 0.178" (4.5mm) | 0.027" (0.7mm) | 0.094" (2.4mm) | -25°C ~ 80°C |
|
|
ABJ2414619SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 65gf | 5.099gf | 0.445" (11.3mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
AM1503FSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
AM1 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Solder Lug | - | Cadmium Free | 100gf | 20gf | 1.188" (30.2mm) | 0.296" (7.5mm) | 0.050" (1.3mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
|
AM1713FSWITCH SNAP ACTION SPDT 10A 125V |
0 |
|
Datasheet |
AM1 | Bulk | Obsolete | SPDT | On-Mom | 10A (AC), 500mA (DC) | 125 V | 125 V | Lever, Roller | Chassis Mount | Screw Terminal | Oil Resistant | - | 100gf | 20gf | 1.188" (30.2mm) | 0.296" (7.5mm) | 0.050" (1.3mm) | 0.141" (3.6mm) | -25°C ~ 80°C |
|
|
ABJ241440SWITCH SNAP ACTION SPDT 1A 125V |
0 |
|
Datasheet |
ABJ | Bulk | Active | SPDT | On-Mom | 1A (AC/DC) | 125 V | 30 V | Lever, Simulated Roller | Chassis Mount | Solder Lug | IP50 - Dust Protected | - | 40gf | 3.059gf | 0.445" (11.3mm) | 0.120" (3.0mm) | 0.020" (0.5mm) | 0.020" (0.5mm) | -40°C ~ 85°C |
|
|
AV62251264SWITCH SNAP ACT SPST-NC 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 102gf | 10gf | 0.362" (9.2mm) | 0.055" (1.4mm) | 0.025" (0.6mm) | 0.026" (0.7mm) | -25°C ~ 85°C |
|
|
AV624564SWITCH SNAP ACT SPST-NC 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NC | On-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 51gf | 6.118gf | 0.480" (12.2mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
AV630264SWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Round (Pin Plunger) | Chassis Mount | Connector | IP40 | - | 51gf | 4.079gf | 0.330" (8.4mm) | 0.024" (0.6mm) | 0.004" (0.1mm) | 0.015" (0.4mm) | -25°C ~ 85°C |
|
|
AV632264SWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Straight | Chassis Mount | Connector | IP40 | - | 20gf | 2.039gf | 0.394" (10.0mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
|
|
AV634264SWITCH SNAP ACT SPST-NO 0.1A 30V |
0 |
|
Datasheet |
AV6 | Bulk | Active | SPST-NO | Off-Mom | 100mA (DC) | - | 30 V | Lever, Simulated Roller | Chassis Mount | Connector | IP40 | - | 20gf | 2.039gf | 0.480" (12.2mm) | 0.102" (2.6mm) | 0.031" (0.8mm) | 0.047" (1.2mm) | -25°C ~ 85°C |
