Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AZ37269SWITCH SNAP ACTION SPDT 4A 125V |
0 |
|
- |
AZ3 | Bulk | Obsolete | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Cable Leads | IP64 - Dust Tight, Water Resistant | - | 300gf | 60gf | 1.091" (27.7mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.138" (3.5mm) | -20°C ~ 60°C |
|

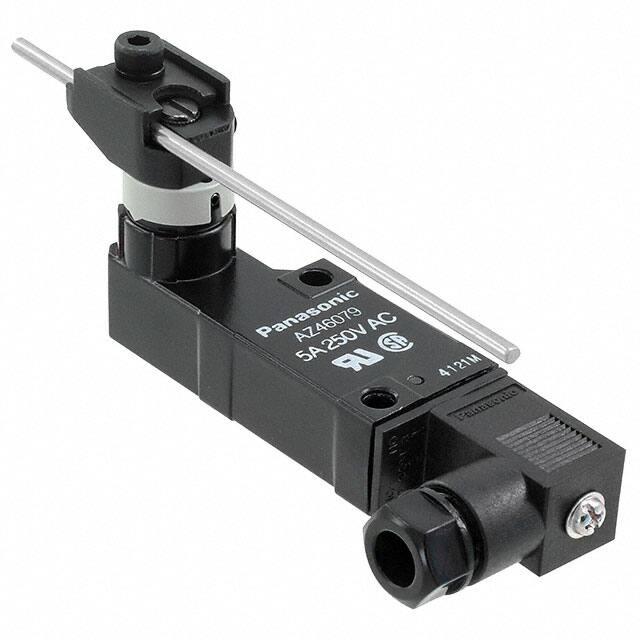

AZ46079SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Plug In | IP64 - Dust Tight, Water Resistant | - | 113 ~ 450gf | 6.118 ~ 25gf | - | 15° | 3° | - | -20°C ~ 60°C |
|

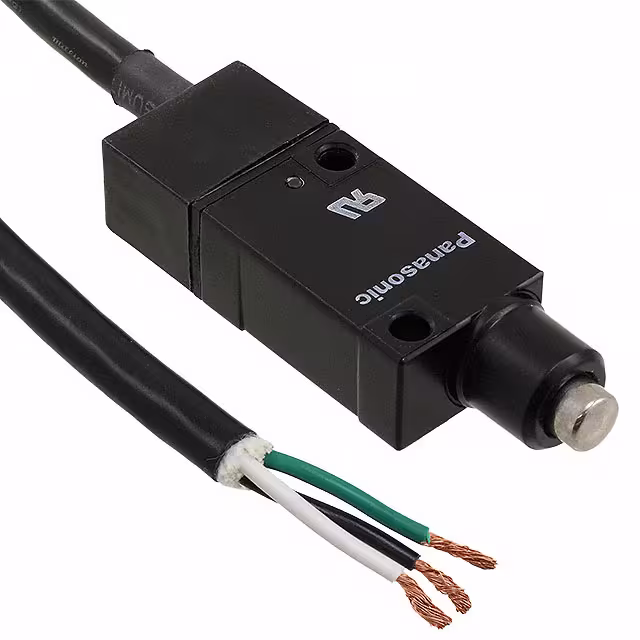

AZ47019SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Cable Leads | IP64 - Dust Tight, Water Resistant | - | 700gf | 70gf | - | 0.040" (1.0mm) | 0.006" (0.15mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|

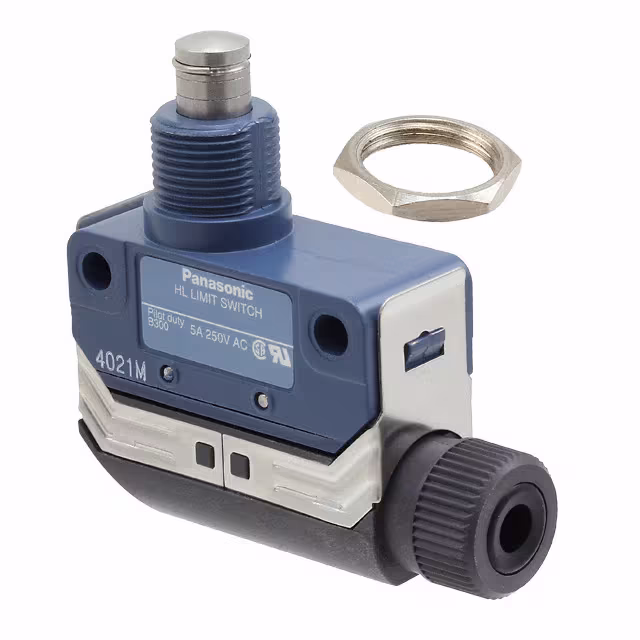

AZH2031SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Panel Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 0.685" (17.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

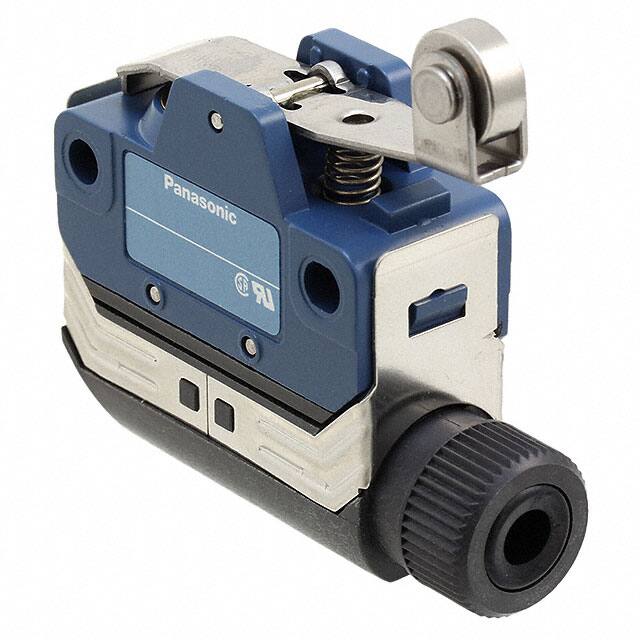

AZH2241SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
AZ35269SWITCH SNAP ACTION SPDT 4A 125V |
0 |
|
- |
AZ3 | Bulk | Obsolete | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | Terminal Cover | 300gf | 60gf | 1.091" (27.7mm) | 0.080" (2.0mm) | 0.040" (1.0mm) | 0.138" (3.5mm) | -20°C ~ 60°C |
|

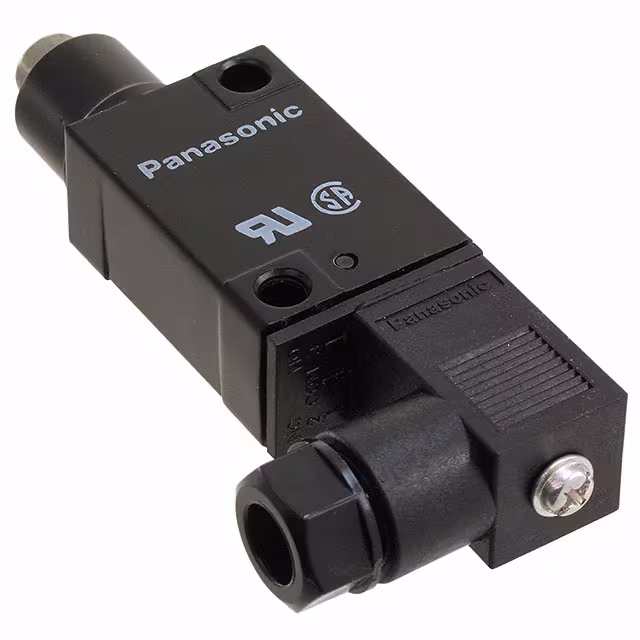

AZ46019SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Plug In | IP64 - Dust Tight, Water Resistant | - | 700gf | 70gf | - | 0.040" (1.0mm) | 0.006" (0.15mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|

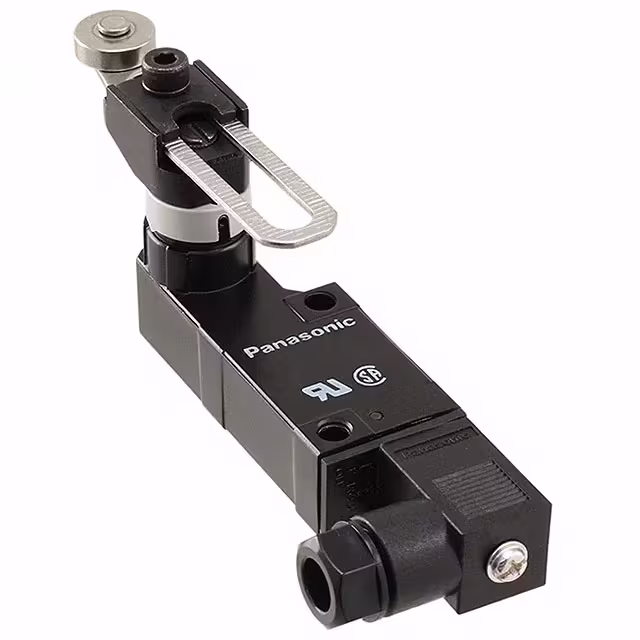

AZ46089SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Roller | Chassis Mount | Plug In | IP64 - Dust Tight, Water Resistant | - | 205 ~ 450gf | 11 ~ 25gf | - | 15° | 3° | - | -20°C ~ 60°C |
|
AZ47049SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Side Rotary, Roller | Chassis Mount | Cable Leads | IP64 - Dust Tight, Water Resistant | - | 450gf | 25gf | - | 15° | 3° | - | -20°C ~ 60°C |
|

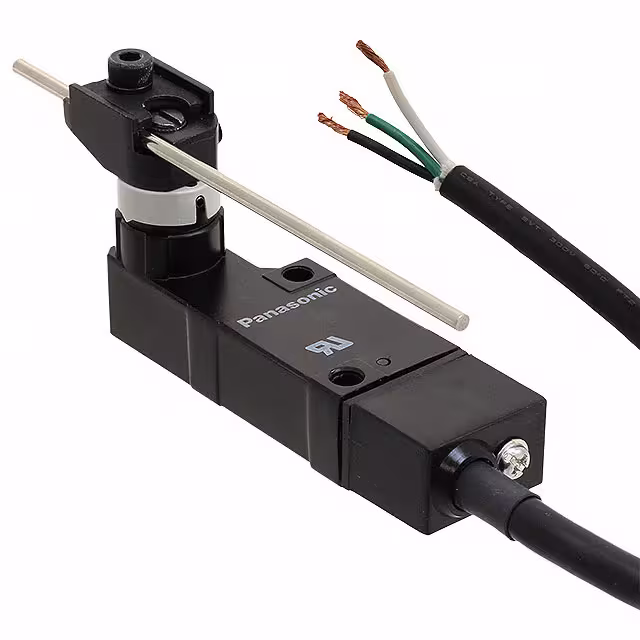

AZ47079SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Side Rotary, Adjustable Rod | Chassis Mount | Cable Leads | IP64 - Dust Tight, Water Resistant | - | 113 ~ 450gf | 6.118 ~ 25gf | - | 15° | 3° | - | -20°C ~ 60°C |
|

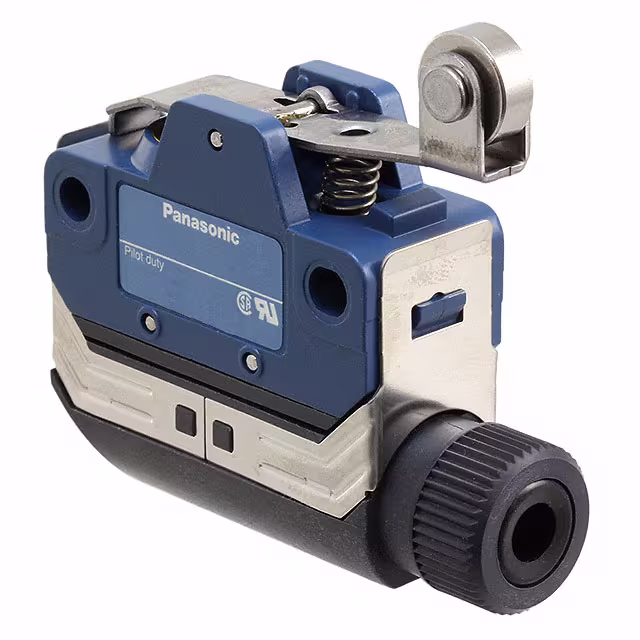

AZH2041SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|

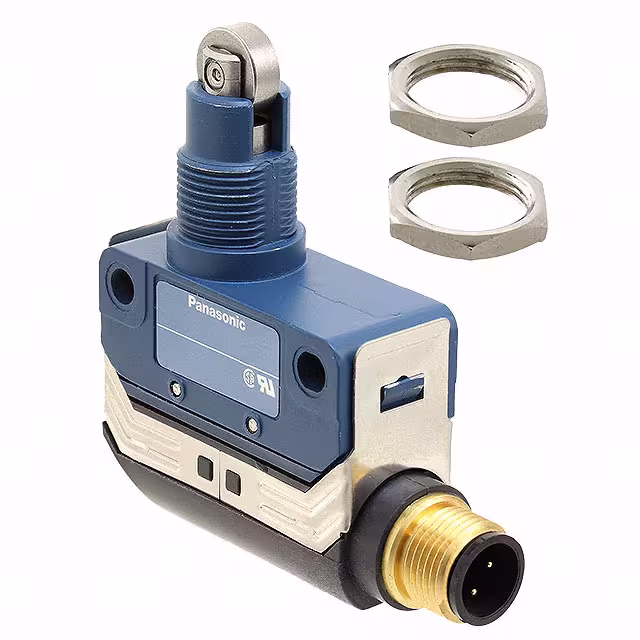

AZH2332SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 0.922" (23.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

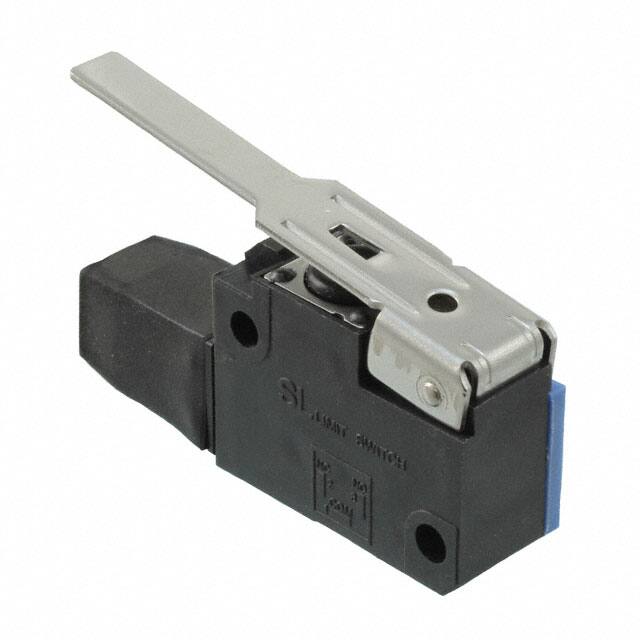

AZ35229SWITCH SNAP ACTION SPDT 4A 125V |
0 |
|
- |
AZ3 | Bulk | Obsolete | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Lever, Straight | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | Terminal Cover | 200gf | 50gf | 0.657" (16.7mm) | 0.120" (3.0mm) | 0.060" (1.5mm) | 0.235" (6.0mm) | -20°C ~ 60°C |
|
AZ40019SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZ4 | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Round (Pin Plunger) | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | IP64 - Dust Tight, Water Resistant | - | 700gf | 70gf | - | 0.040" (1.0mm) | 0.006" (0.15mm) | 0.158" (4.0mm) | -20°C ~ 60°C |
|
AZH1041SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP64 - Dust Tight, Water Resistant | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|

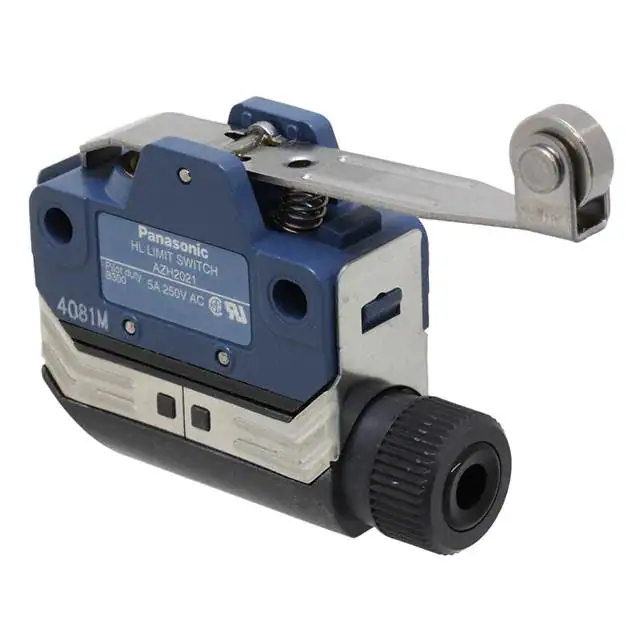

AZH2021SWITCH SNAP ACTION SPDT 5A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 5A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Screw Terminal | IP67 - Dust Tight, Waterproof | - | 250gf | 40gf | 0.909" (23.1mm) | 0.157" (4.0mm) | 0.025" (0.6mm) | 0.276" (7.0mm) | -10°C ~ 80°C |
|
AZH2333SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Cross Roller Plunger | Panel Mount | Connector | IP67 - Dust Tight, Waterproof | - | 1200gf | 500gf | 0.922" (23.4mm) | 0.060" (1.5mm) | 0.004" (0.1mm) | 0.118" (3.0mm) | -10°C ~ 80°C |
|

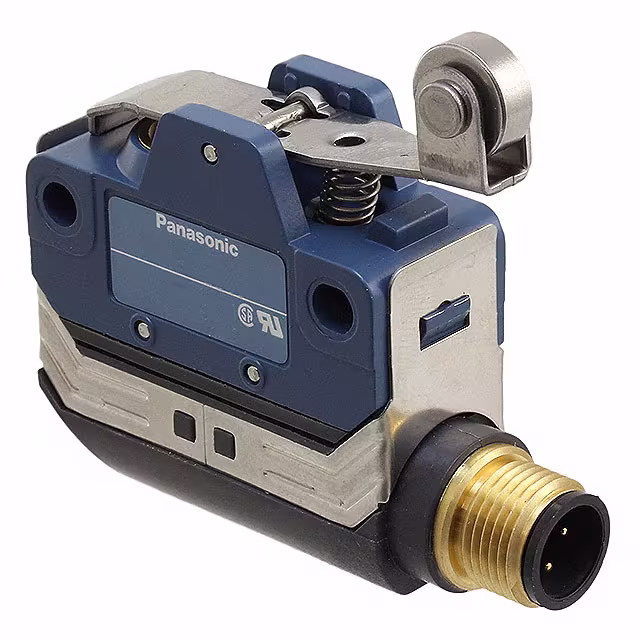

AZH2341SWITCH SNAP ACT SPDT 0.1A 125V |
0 |
|
Datasheet |
AZH | Bulk | Obsolete | SPDT | On-Mom | 100mA (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Connector | IP67 - Dust Tight, Waterproof | - | 400gf | 80gf | 0.909" (23.1mm) | 0.080" (2.0mm) | 0.012" (0.3mm) | 0.158" (4.0mm) | -10°C ~ 80°C |
|
61-2124CSWITCH LIMIT |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AZ35139SWITCH SNAP ACTION SPDT 4A 125V |
0 |
|
- |
AZ3 | Bulk | Obsolete | SPDT | On-Mom | 4A (AC/DC) | 125 V | 30 V | Lever, Roller | Chassis Mount | Solder, Quick Connect - 0.110" (2.8mm) | IP60 - Dust Tight | Terminal Cover | 120gf | 25gf | 1.209" (30.7mm) | 0.120" (3.0mm) | 0.060" (1.5mm) | 0.235" (6.0mm) | -20°C ~ 60°C |
