Limit Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Mounting Type | Termination Style | Ingress Protection | Features | Operating Force | Release Force | Operating Position | Pretravel | Differential Travel | Overtravel | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
83272007SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Solder Lug | - | - | 46gf | 8.158gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.035" (0.9mm) | -20°C ~ 125°C |
|
|
83272011SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
|
83272012SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 51gf | 9.177gf | 0.380" (9.7mm) | - | 0.025" (0.6mm) | 0.030" (0.76mm) | -20°C ~ 125°C |
|
|
83272017SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 46gf | 8.158gf | 0.600" (15.2mm) | - | 0.028" (0.7mm) | 0.035" (0.9mm) | -20°C ~ 125°C |
|
|
83272021SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Through Hole | PC Pin | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
|
83272022SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 51gf | 9.177gf | 0.380" (9.7mm) | - | 0.025" (0.6mm) | 0.030" (0.76mm) | -20°C ~ 125°C |
|
|
83272024SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 20gf | 3.059gf | 0.437" (11.1mm) | - | 0.083" (2.1mm) | 0.122" (3.1mm) | -20°C ~ 125°C |
|
|
83272025SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole | PC Pin | - | - | 13gf | 2.039gf | 0.455" (11.6mm) | - | 0.138" (3.5mm) | 0.141" (3.6mm) | -20°C ~ 125°C |
|
|
83272046SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Simulated Roller | Through Hole, Right Angle | PC Pin | - | - | 46gf | 8.158gf | 0.497" (12.6mm) | - | 0.028" (0.7mm) | 0.030" (0.76mm) | -20°C ~ 125°C |
|
|
83272081SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
|
83272611SWITCH SNAP ACT SPST-NC 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
|
83272616SWITCH SNAP ACT SPST-NC 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Lever, Simulated Roller | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 46gf | 8.158gf | 0.497" (12.6mm) | - | 0.028" (0.7mm) | 0.030" (0.76mm) | -20°C ~ 125°C |
|
|
83272811SWITCH SNAP ACT SPST-NO 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPST-NO | Off-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Quick Connect - 0.110" (2.8mm) | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|

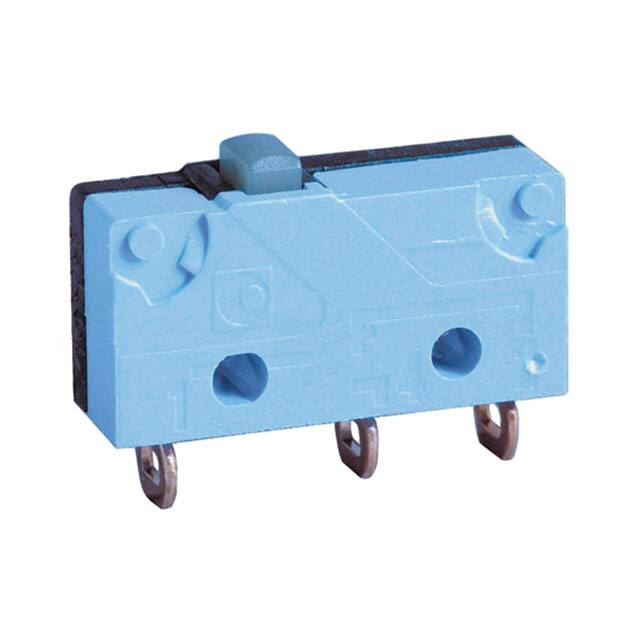

83274001SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 51gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
|
83274045SWITCH SNAP ACTION SPDT 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 5A (AC) | 250 V | - | Lever, Straight | Through Hole, Right Angle | PC Pin | - | - | 5.099gf | 1.020gf | 0.551" (14.0mm) | - | 0.090" (2.3mm) | 0.235" (6.0mm) | -20°C ~ 125°C |
|
|
83274601SWITCH SNAP ACT SPST-NC 5A 250V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPST-NC | On-Mom | 5A (AC) | 250 V | - | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 51gf | 10gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 125°C |
|
|
83278001SWITCH SNAP ACT SPDT 0.05A 24V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 50mA (AC/DC) | 24 V | 24 V | Round (Pin Plunger) | Chassis Mount | Solder Lug | - | - | 153gf | 31gf | 0.330" (8.4mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 150°C |
|
|
83278002SWITCH SNAP ACT SPDT 0.05A 24V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 50mA (AC/DC) | 24 V | 24 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 51gf | 9.177gf | 0.380" (9.7mm) | - | 0.025" (0.6mm) | 0.030" (0.76mm) | -20°C ~ 150°C |
|
|
83278005SWITCH SNAP ACT SPDT 0.05A 24V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 50mA (AC/DC) | 24 V | 24 V | Lever, Straight | Chassis Mount | Solder Lug | - | - | 13gf | 2.039gf | 0.455" (11.6mm) | - | 0.138" (3.5mm) | 0.141" (3.6mm) | -20°C ~ 150°C |
|
|
83278009SWITCH SNAP ACT SPDT 0.05A 24V |
0 |
|
Datasheet |
V4D | Bulk | Active | SPDT | On-Mom | 50mA (AC/DC) | 24 V | 24 V | Mushroom Button | Chassis Mount | Solder Lug | - | - | 153gf | 31gf | 0.390" (9.9mm) | - | 0.006" (0.15mm) | 0.020" (0.5mm) | -20°C ~ 150°C |
