Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LW6MJ-32C34VRRCSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LW | Bulk | Active | 3PDT | 3 | Mom-Off-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center and Right | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 25.30mm Dia | IP65 | -25°C ~ 50°C |
|
|
LW6MJ-32C34VRGHSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LW | Bulk | Active | 3PDT | 3 | Mom-Off-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Right | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 25.30mm Dia | IP65 | -25°C ~ 50°C |
|
|
LW6MJ-32C34VRRHSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LW | Bulk | Active | 3PDT | 3 | Mom-Off-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Right | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 25.30mm Dia | IP65 | -25°C ~ 50°C |
|
|
LW6MJ-32C34VRRDSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LW | Bulk | Active | 3PDT | 3 | Mom-Off-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 25.30mm Dia | IP65 | -25°C ~ 50°C |
|
|
44L45-02-1-03NSWITCH KEYLOCK 3POS SP3T 5A 115V |
0 |
|
Datasheet |
44L | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
|
44L45-01-2-02NSWITCH KEYLOCK 2POS DPDT 5A 115V |
0 |
|
Datasheet |
44L | Bulk | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
|
AML27ABK2BC26BASWITCH KEYLOCK |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AML27ABK2BC30BASWITCH KEYLOCK |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AML27ABK2BC24BAUNSEALED OI-PB SWITCH |
0 |
|
- |
AML27 | Bulk | Active | DPDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 125 V | Flat Key | Center | 60° | - | Gold | Panel Mount, Snap-In | Solder, Quick Connect - 0.110" (2.8mm) | Square - 19.05mm² | - | - |
|

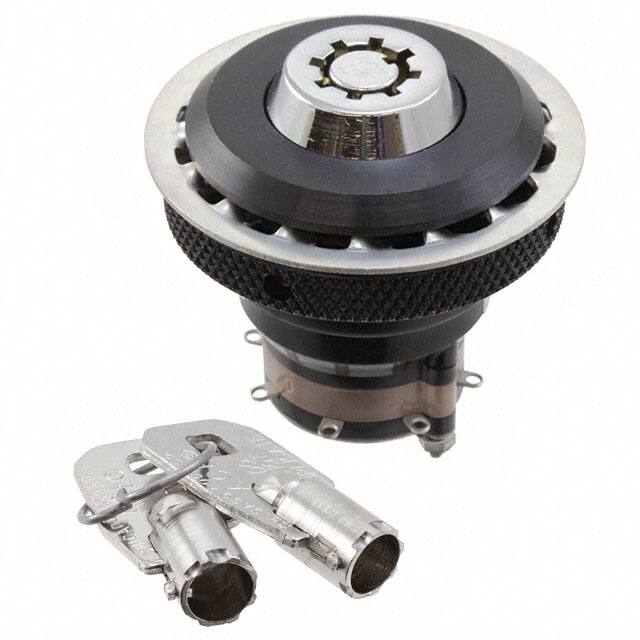

44L45-01-1-07NSWITCH KEYLOCK 7POS SP7T 5A 115V |
0 |
|
Datasheet |
44L | Bulk | Active | SP7T | 7 | - | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
|
14-336.025KSWITCH KEYLOCK 2POS 4PST 5A 250V |
0 |
|
Datasheet |
14 | Bulk | Active | 4PST-2NO/2NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 22.30mm Dia | IP65 | -25°C ~ 55°C |
|
|
XB4FG33SWITCH KEYLOCK 3POS DPST 6A 120V |
0 |
|
Datasheet |
Harmony XB4 | Box | Active | DPST-NO | 3 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left and Right | 45° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 30.00mm Dia | - | -40°C ~ 70°C |
|
|
44L45-02-1-04SSWITCH KEYLOCKPOS SP4T 5A 115V |
0 |
|
Datasheet |
44L | Bulk | Active | SP4T | - | On-On-On-On | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
|
LW6K-21C3VBSWITCH KEY 2POS 3PDT 100MA 125V |
0 |
|
- |
LW | Bulk | Active | 3PDT | 2 | On-Mom | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 25.30mm Dia | - | -25°C ~ 60°C |
|
|
LW6K-33C3VDSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LW | Bulk | Active | 3PDT | 3 | Mom-Off-Mom | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 25.30mm Dia | - | -25°C ~ 60°C |
|
|
44L45-01-2-03NSWITCH KEYLOCK 3POS DP3T 5A 115V |
0 |
|
Datasheet |
44L | Bulk | Active | DP3T | 3 | On-On-On | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
|
44L45-01-2-03SSWITCH KEYLOCK 3POS DP3T 5A 115V |
0 |
|
Datasheet |
44L | Bulk | Active | DP3T | 3 | On-On-On | Shorting (MBB) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
|
44L45-01-4-02NSWITCH KEYLOCK 2POS 4PDT 5A 115V |
0 |
|
Datasheet |
44L | Bulk | Active | 4PDT | 2 | On-On | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
|
ACSNK-4103-HBSWITCH KEYLOCK 10POS |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ACSNK-446-C4001SWITCH KEYLOCK 4POS |
0 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
