Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
Y1011U2CFWCNQESWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
Y | Bulk | Active | SPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
K1-101S1S1N2T45SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K2-102S1S1N2 01SWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
A1161U2A1NZRQSWITCH KEYLK 4POS SP4T 2.5A 125V |
0 |
|
Datasheet |
A | Tray | Active | SP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 and 4 | 30° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|
|
K1-118S1S1N1 01SWITCH KEYLOCK 4POS SP4T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP4T | 4 | On-On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
Y2001U2C203NQSWITCH KEYLOCK 3POS DP3T 4A 125V |
0 |
|
Datasheet |
Y | Tray | Active | DP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|

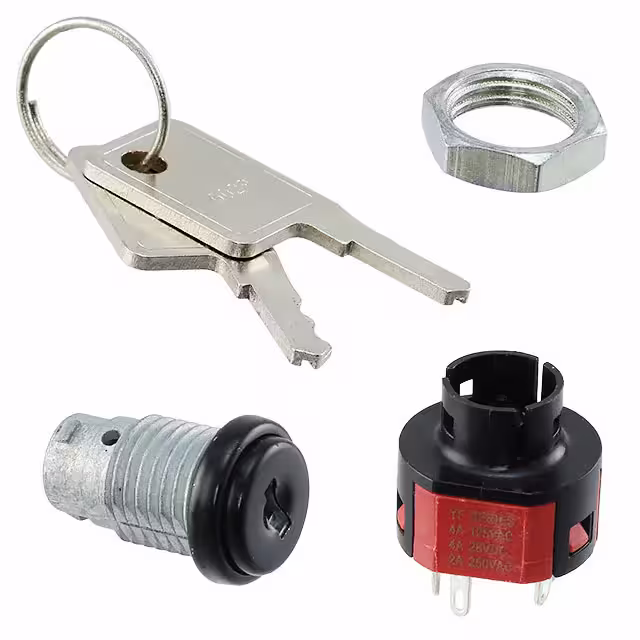

YF21132C803NQSWITCH KEYLOCK 2POS DPDT 4A 125V |
0 |
|
Datasheet |
YF | Tray | Active | DPDT | 2 | On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 11.99mm Dia | Epoxy Sealed Terminals | - |
|
|
Y200AA2CF03NQSWITCH KEYLOCK |
0 |
|
Datasheet |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
K2-101S1S1N1 06SWITCH KEYLOCK 5POS SP5T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP5T | 5 | On-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | Left | 45°, 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K2-101S1S1N1 01SWITCH KEYLOCK 5POS SP5T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP5T | 5 | On-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | Left | 45°, 90° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
K1-100S1S4N2 01SWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 and 3 | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.18mm Dia | - | - |
|
|
SK13EDW01-002SWITCH KEYLOCK 3POS SPDT 3A 125V |
0 |
|
Datasheet |
SK | Bulk | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
SK13EDW01-003SWITCH KEYLOCK 3POS SPDT 3A 125V |
0 |
|
Datasheet |
SK | Bulk | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
SK13EDW01-008SWITCH KEYLOCK 3POS SPDT 3A 125V |
0 |
|
Datasheet |
SK | Bulk | Last Time Buy | SPDT | 3 | On-Off-On | Non-Shorting (BBM) | 3A (AC) | 125 V | - | Flat Key | 2 only | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 12.00mm Dia | Epoxy Sealed Terminals | -25°C ~ 70°C |
|
|
PVK4K22B0SSSWITCH KEYLOCK 2POS SPDT 2A 24V |
0 |
|
Datasheet |
PVK4 | Bulk | Active | SPDT | 2 | On-Mom | Not Specified | 2A (DC) | - | 24 V | Flat Key | All | 45° | Silver (Ag) | - | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -20°C ~ 55°C |
|
|
LK57GB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
LK | Bulk | Active | SP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
LK5EGB126M3KEYLOCK SWITCH LK 19MM |
0 |
|
- |
LK | Bulk | Active | SP3T | 3 | Mom-On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 2 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
Y1417U2C2WCNQSWITCH KEYLOCK 3POS SP3T 4A 125V |
0 |
|
Datasheet |
Y | Bulk | Active | SP3T | 3 | On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 90° | Copper | Silver | Panel Mount | Wire Leads | Circular - 19.30mm Dia | - | - |
|
|
K2-102S1S1C2 01SWITCH KEYLOCK 2POS SPDT 4A 125V |
0 |
|
Datasheet |
K | Tray | Active | SPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.18mm Dia | - | - |
|
|
89703-001-08SWITCH KEYLOCK |
0 |
|
- |
* | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Keylock Switches Electronic Components
Explore Keylock Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
