Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
A22NK-2ML-01BA-G100SWITCH KEYLCK 2POS SPST 10A 120V |
20 |
|
Datasheet |
A22NK | Bulk | Active | SPST-NO | 2 | Off-Mom | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
Y100AB2C203NQSWITCH KEYLOCK 4POS SP4T 4A 125V |
41 |
|
Datasheet |
Y | Tray | Active | SP4T | 4 | On-On-On-On | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | All | 45° | Copper | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | - |
|
|
A22NK-2MM-01BA-G100SWITCH KEYLCK 2POS SPST 10A 120V |
11 |
|
Datasheet |
A22NK | Bulk | Active | SPST-NO | 2 | Off-On | Not Specified | 10A (AC), 8A (DC) | 120 V | 24 V | Flat Key | Left | 90° | - | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66 | -25°C ~ 70°C |
|
SK14EG13SWITCH KEYLK 3POS SP3T 0.4VA 28V |
82 |
|
Datasheet |
SK | Bulk | Active | SP3T | 3 | On-On-On | Non-Shorting (BBM) | 0.4VA (AC/DC) | 28 V | 28 V | Flat Key | 2 only | 45° | Beryllium Copper | Gold | Through Hole | PC Pin | - | Process Sealed | -25°C ~ 70°C |
|
LK5ANB126N3SWITCH KEYLOCK 2POS SPDT 4A 125V |
28 |
|
Datasheet |
LK | Bulk | Active | SPDT | 2 | On-Mom | Not Specified | 4A (AC/DC) | 125 V | 28 V | Flat Key | 1 only | 45° | Copper Alloy | Gold | Panel Mount | Solder Lug | Circular - 19.00mm Dia | - | -30°C ~ 85°C |
|
|
95060-21SWITCH KEYLOCK 3POS 5A 24V |
74 |
|
Datasheet |
95060 | Bulk | Active | - | 3 | Off-On-Mom | Not Specified | 5A (DC) | - | 24 V | Flat Key | 1 only | - | Brass | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|
A314132A1NZRQSWITCH KEYLK 2POS 3PDT 2.5A 125V |
95 |
|
Datasheet |
A | Tray | Active | 3PDT | 2 | On-On | Non-Shorting (BBM) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 90° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | - | -30°C ~ 85°C |
|

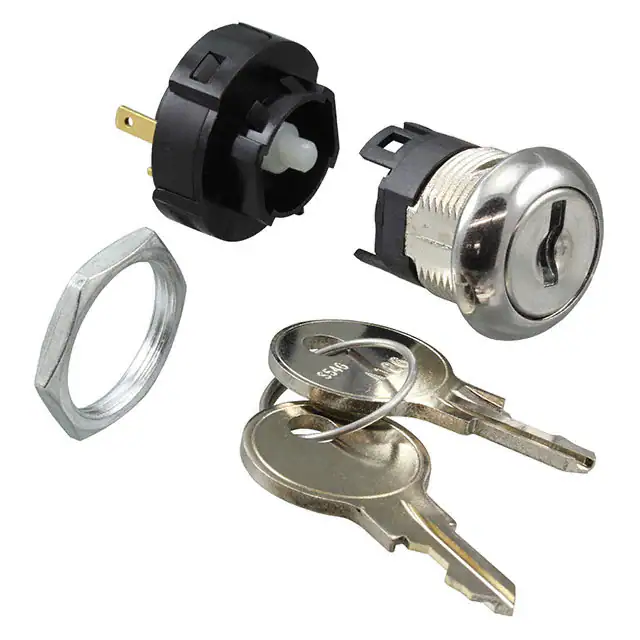

H101132F205NBSWITCH KEYLK 2POS SPDT 0.4VA 20V |
100 |
|
Datasheet |
H | Bulk | Active | SPDT | 2 | On-On | Not Specified | 0.4VA (AC/DC) | 20 V | 20 V | Flat Key | 1 only | 90° | Copper | Gold | Panel Mount | Quick Connect - 0.110" (2.8mm) | Circular - 19.30mm Dia | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
A315132Y2SZNQSWITCH KEYLK 3POS 3P3T 2.5A 125V |
45 |
|
Datasheet |
A | Tray | Active | 3P3T | 3 | On-On-On | Shorting (MBB) | 2.5A (AC), 350mA (DC) | 125 V | 125 V | Flat Key | 1 only | 45° | Silver (Ag) | Silver | Panel Mount | Solder Lug | Circular - 19.30mm Dia | Antistatic | -30°C ~ 85°C |
.jpg)
|
95060-04SWITCH KEYLOCK 3POS 5A 24V |
54 |
|
Datasheet |
95060 | Bulk | Active | - | 3 | Off-On-On | Not Specified | 5A (DC) | - | 24 V | Flat Key | 1 only | 30° | - | - | Panel Mount | Connector | Circular - 21.84mm Dia | - | - |
|
AS6M-2KT2PASWITCH KEYLOCK 2POS DPDT 1A 120V |
46 |
|
Datasheet |
A6 | Bulk | Active | DPDT | 2 | On-On | Not Specified | 1A (AC/DC) | 120 V | 24 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.20mm Dia | IP65, Oil-Resistant | -25°C ~ 55°C |
|
51-255.025DSWITCH KEYLOCK 2POS DPST 5A 250V |
10 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder Lug | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
51-295.022DSWITCH KEYLOCK 2POS DPST 5A 250V |
8 |
|
Datasheet |
51 | Bulk | Active | DPST-NO/NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | - | Flat Key | 1 only | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65 | -25°C ~ 55°C |
|
45-190H.1000.111.101SWITCH KEYLCK 2POS SPST 10A 500V |
16 |
|
Datasheet |
45 | Bulk | Active | SPST-NO | 2 | Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver (Ag) | - | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | IP66, IP67, IP69K | -25°C ~ 70°C |
|
A165K-A2ML-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
6 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Left | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
A165K-T2ML-2SWITCH KEYLOCK 2POS DPDT 5A 125V |
4 |
|
Datasheet |
A165K | Bulk | Active | DPDT | 2 | On-On | Not Specified | 5A (AC), 3A (DC) | 125 V | 30 V | Flat Key | Left | 90° | - | - | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 16.00mm Dia | IP65, Oil-Resistant | -10°C ~ 55°C |
|
3SU11504BF111BA0SWITCH KEYLCK 2POS SPST 10A 500V |
6 |
|
Datasheet |
3SU1 | Bulk | Active | SPST-NO | 2 | Off-On | Not Specified | 10A (AC/DC) | 500 V | 500 V | Flat Key | All | 90° | Silver Alloy | Silver | Panel Mount | Screw Terminal | Circular - 22.30mm Dia | - | -25°C ~ 70°C |
|
|
44L45-02-2-02NSWITCH KEYLOCK 2POS DPDT 5A 115V |
4 |
|
Datasheet |
44L | Bulk | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 5A (AC), 1A (DC) | 115 V | 28 V | Tubular Key | All | 45° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 34.93mm Dia | - | - |
|
XB4BG61SWITCH KEYLOCK 2POS SPST 6A 120V |
4 |
|
Datasheet |
Altivar | Box | Active | SPST-NO | 2 | Off-On | Not Specified | 6A (AC), 550mA (DC) | 120 V | 125 V | Flat Key | Left | 90° | Silver Alloy | - | Panel Mount | Screw Terminal | Circular - 22.00mm Dia | - | -40°C ~ 70°C |
|
|
51-238.025D2ACTUATOR, 18 MM, 4 NC / 4 NO, R |
2 |
|
Datasheet |
51 | Bag | Active | 8PST-4NO/4NC | 2 | On-Off, Off-On | Not Specified | 5A (AC) | 250 V | 24 V | Flat Key | Right | 90° | Silver | Gold | Panel Mount | Solder Lug | Circular - 16.20mm Dia | - | -25°C ~ 55°C |
