Keylock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Switch Function | Contact Timing | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Key Removable Positions | Angle of Throw | Contact Material | Contact Finish | Mounting Type | Termination Style | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

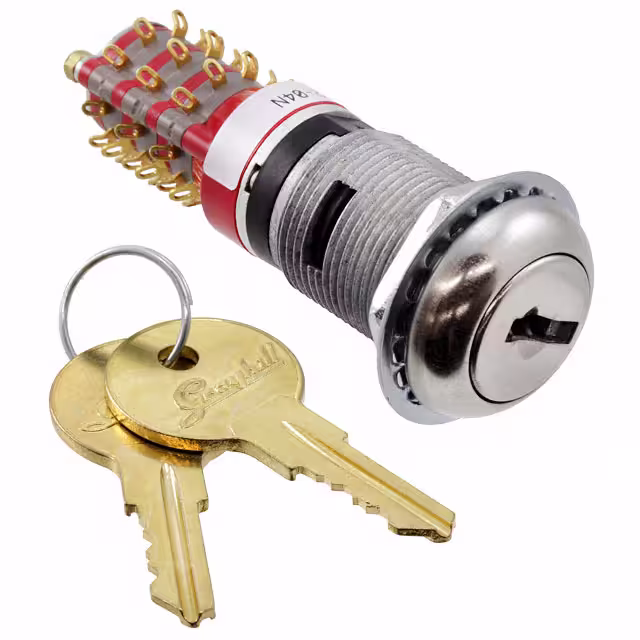

71L36-03-2-04NSWITCH KEY 4POS DP4T 250MA 115V |
0 |
|
Datasheet |
71L | Bulk | Active | DP4T | 4 | On-On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
71L36-03-2-02NSWITCH KEY 2POS DPDT 250MA 115V |
0 |
|
Datasheet |
71L | Bulk | Active | DPDT | 2 | On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
71L36-03-2-03NSWITCH KEY 3POS DP3T 250MA 115V |
0 |
|
Datasheet |
71L | Bulk | Active | DP3T | 3 | On-On-On | Non-Shorting (BBM) | 250mA (AC/DC) | 115 V | 30 V | Flat Key | All | 36° | Silver Alloy | - | Panel Mount | Solder Lug | Circular - 19.05mm Dia | - | - |
|
|
ASN3K00-RLSWITCH KEYLOCK |
0 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
RM220SWITCH KEYLOCK 3POS 6A 120V |
0 |
|
Datasheet |
Reliant'22 | Bulk | Obsolete | - | 3 | On-On-On | Not Specified | 6A (AC) | 120 V | - | Flat Key | Center and Right | 60° | Silver (Ag) | - | Panel Mount | - | Circular - 22.22mm Dia | IP65, Oil-Resistant | - |
|
|
RM230SWITCH KEYLOCK 3POS 6A 120V |
0 |
|
Datasheet |
Reliant'22 | Bulk | Obsolete | - | 3 | On-On-On | Not Specified | 6A (AC) | 120 V | - | Flat Key | All | 60° | Silver (Ag) | - | Panel Mount | - | Circular - 22.22mm Dia | IP65, Oil-Resistant | - |
|
|
RM232SWITCH KEYLOCK 3POS 6A 120V |
0 |
|
Datasheet |
Reliant'22 | Bulk | Obsolete | - | 3 | On-On-On | Not Specified | 6A (AC) | 120 V | - | Flat Key | All | 60° | Silver (Ag) | - | Panel Mount | - | Circular - 22.22mm Dia | IP65, Oil-Resistant | - |
|
|
LBW6MK-2T3ASWITCH KEY 2POS 3PDT 100MA 125V |
0 |
|
Datasheet |
LBW | Box | Active | 3PDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-2T3BSWITCH KEY 2POS 3PDT 100MA 125V |
0 |
|
Datasheet |
LBW | Box | Active | 3PDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-2T3VASWITCH KEY 2POS 3PDT 100MA 125V |
0 |
|
Datasheet |
LBW | Box | Active | 3PDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-2T3VBSWITCH KEY 2POS 3PDT 100MA 125V |
0 |
|
Datasheet |
LBW | Box | Active | 3PDT | 2 | On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-2T7ASWITCH KEYLOCK 2POS 3PDT 5A 125V |
0 |
|
Datasheet |
LBW | Box | Active | 3PDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | All | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-2T7BSWITCH KEYLOCK 2POS 3PDT 5A 125V |
0 |
|
Datasheet |
LBW | Box | Active | 3PDT | 2 | On-On | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | Left | 90° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-33T3DSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LBW | Box | Active | 3PDT | 3 | Mom-On-Mom | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center | 45° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-33T3VDSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LBW | Box | Active | 3PDT | 3 | Mom-On-Mom | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-33T7DSWITCH KEYLOCK 3POS 3PDT 5A 125V |
0 |
|
- |
LBW | Box | Active | 3PDT | 3 | Mom-On-Mom | Not Specified | 5A (AC/DC) | 125 V | 30 V | Flat Key | Center | 45° | Silver (Ag) | Silver | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-3T3ASWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LBW | Box | Active | 3PDT | 3 | On-On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 45° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-3T3DSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LBW | Box | Active | 3PDT | 3 | On-On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center | 45° | Silver (Ag) | Gold | Panel Mount | Solder, Quick Connect - 0.110" (2.8mm) | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-3T3VASWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LBW | Box | Active | 3PDT | 3 | On-On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | All | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
|
|
LBW6MK-3T3VDSWITCH KEY 3POS 3PDT 100MA 125V |
0 |
|
- |
LBW | Box | Active | 3PDT | 3 | On-On-On | Not Specified | 100mA (AC/DC) | 125 V | 30 V | Flat Key | Center | 45° | Silver (Ag) | Gold | Panel Mount | PC Pin | Circular - 22.30mm Dia | - | -25°C ~ 60°C |
