Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8275DA-IM1DGTL ISO 2.5KV 2CH GT DVR 14QFN |
48 |
|
Datasheet |
Si827x | 14-VDFN | Tray | Obsolete | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 4.2V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-QFN (5x5) | CQC, CSA, UL, VDE |
|
SI82395BD-IS3DGT ISO 3.25KV 2CH GT DVR 14SOIC |
46 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 3250Vrms | 35kV/µs | 40ns, 40ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 10V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UR, VDE |
|
FOD3150OPTOISO 5KV 1CH GATE DVR 8DIP |
800 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Obsolete | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | - |
|
FOD3120SVOPTOISO 5KV 1CH GATE DVR 8SMD |
450 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | IEC, UL |
|
|
FOD3120SOPTOISO 5KV 1CH GATE DVR 8SMD |
436 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 35kV/µs | 400ns, 400ns | 100ns | 60ns, 60ns | 2A, 2A | 3A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | UL |
|
FOD3150VOPTOISO 5KV 1CH GATE DVR 8DIP |
1,000 |
|
Datasheet |
- | 8-DIP (0.300", 7.62mm) | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | IEC, UL |
|
|
FOD3150SVOPTOISO 5KV 1CH GATE DVR 8SMD |
1,000 |
|
Datasheet |
- | 8-SMD, Gull Wing | Bulk | Active | Optical Coupling | 1 | 5000Vrms | 20kV/µs | 500ns, 500ns | 300ns | 60ns, 60ns | 1A, 1A | 1.5A | 1.5V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SMD | IEC, UL |
|
SI8261BAC-C-ISDGTL ISO 3.75KV 1CH GT DVR 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 3750Vrms | 35kV/µs | 60ns, 50ns | 28ns | 5.5ns, 8.5ns | 500mA, 1.2A | 4A | 2.8V (Max) | 30 mA | 6.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
BM6112FV-CE2DGT ISO 3.75KV 1CH GT DVR 28SSOP |
0 |
|
Datasheet |
- | 28-SSOP (0.315", 8.00mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 3750Vrms | 100kV/µs | 150ns, 150ns | 30ns | 30ns, 30ns | - | - | - | - | 14V ~ 20V | - | - | -40°C ~ 125°C | Surface Mount | 28-SSOP-BW | - |
.JPG)
|
TLP152(EOPTOISO 3.75KV 1CH GT DVR 6SO-5 |
0 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tube | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 170ns, 190ns | 50ns | 18ns, 22ns | 2A, 2A | 2.5A | 1.57V | 15 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 6-SO, 5 Lead | CQC, cUL, UL |
|
|
TLP151A(TPR,E)OPTOISO 3.75KV 1CH GT DVR 6SO-5 |
0 |
|
Datasheet |
- | 6-SOIC (0.179", 4.55mm Width), 5 Leads | Tape & Reel (TR) | Active | Optical Coupling | 1 | 3750Vrms | 20kV/µs | 500ns, 500ns | 350ns | 50ns, 50ns | 400mA, 400mA | 600mA | 1.55V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 6-SO, 5 Lead | cUL, UL |
|
HCPL-0314-000EOPTOISO 3.75KV 1CH GATE DVR 8SO |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Optical Coupling | 1 | 3750Vrms | 25kV/µs | 700ns, 700ns | - | 50ns, 50ns | 400mA, 400mA | 600mA | 1.5V | 25 mA | 10V ~ 30V | - | - | -40°C ~ 100°C | Surface Mount | 8-SO | CSA, UR |
|
|
NCD57101DWR2GISOLATED GATE DRIVER IN SOIC16WB |
0 |
|
Datasheet |
- | 16-SOIC (0.295", 7.50mm Width) | Tape & Reel (TR) | Active | Capacitive Coupling | 1 | 5000Vrms | 150kV/µs | 90ns, 90ns | 15ns | 15ns, 15ns (Max) | 7.8A, 7.1A | 7A | - | - | 0V ~ 32V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | UL, VDE |
|
|
SI8751AB-ISDGTL ISO 2.5KV 1CH GT DVR 8SOIC |
0 |
|
Datasheet |
- | 8-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 1 | 2500Vrms | 20kV/µs | - | - | - | - | - | - | - | - | - | - | -40°C ~ 105°C | Surface Mount | 8-SOIC | CQC, CSA, UR, VDE |
|
|
MP18831-A4BGLU-PDGTL ISO 2.5KV 2CH GT DVR 13LGA |
0 |
|
Datasheet |
- | 13-VFLGA | Tape & Reel (TR) | Active | Capacitive Coupling | 2 | 2500Vrms | 100kV/µs | 65ns, 65ns | 6ns | 10ns, 10ns | 4A, 4A | 4A | - | - | 0V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 13-LGA (5x5) | CQC, UL, VDE |
|

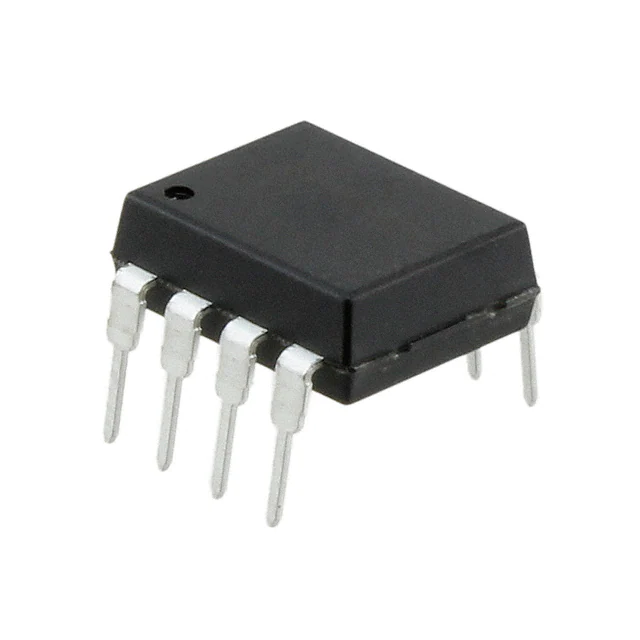

ACNW3190-000EOPTOISO 5KV 1CH GATE DVR 8DIP |
24 |
|
Datasheet |
- | 8-DIP (0.400", 10.16mm) | Tube | Active | Optical Coupling | 1 | 5000Vrms | 15kV/µs | 500ns, 500ns | 300ns | 100ns, 100ns | 4A, 4A | 5A | 1.6V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 100°C | Through Hole | 8-DIP | CSA, IEC/EN/DIN, UR |
|
SI8232BC-D-IS1DGT ISO 3.75KV 2CH GT DVR 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 3750Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 20ns, 20ns (Max) | 250mA, 500mA | 500mA | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8273BBD-IS1DGTL ISO 2.5KV 2CH GT DVR 16SOIC |
0 |
|
Datasheet |
Si827x | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | RF Coupling | 2 | 2500Vrms | 150kV/µs | 60ns, 60ns | 8ns | 10.5ns, 13.3ns | 1.8A, 4A | 4A | - | - | 9.6V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI8238AC-D-IS1DGT ISO 3.75KV 2CH GT DVR 16SOIC |
0 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tube | Active | Capacitive Coupling | 2 | 3750Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 16-SOIC | CQC, CSA, UR, VDE |
|
|
SI82520BD-IS3DGTL ISO 5KV 1CH GATE DVR 14SOIC |
1 |
|
Datasheet |
Si8252x | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5.6ns | 12ns, 12ns (Max) | 4A, 4A | 4A | - | - | 5.5V ~ 30V | - | - | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
