Isolators - Gate Drivers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Technology | Number of Channels | Voltage - Isolation | Common Mode Transient Immunity (Min) | Propagation Delay tpLH / tpHL (Max) | Pulse Width Distortion (Max) | Rise / Fall Time (Typ) | Current - Output High, Low | Current - Peak Output | Voltage - Forward (Vf) (Typ) | Current - DC Forward (If) (Max) | Voltage - Output Supply | Grade | Qualification | Operating Temperature | Mounting Type | Supplier Device Package | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI8235BD-AS3DGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI8238BD-AS3DGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI8235AD-AS3DGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 20kV/µs | 45ns, 45ns | 5.6ns | 12ns, 12ns (Max) | 2A, 4A | 4A | - | - | 6.5V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
SI8283BC-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 2.8V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
|
SI8283CC-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 2.8V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
|
SI8284BC-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | 2.8V ~ 5.5V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
|
SI8283EC-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 16V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
|
SI8284EC-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 16V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
|
SI8283DC-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 14V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|
|
SI8284DC-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 125kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2A, 4.1A | 4A | - | - | 14V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UL, VDE |
|

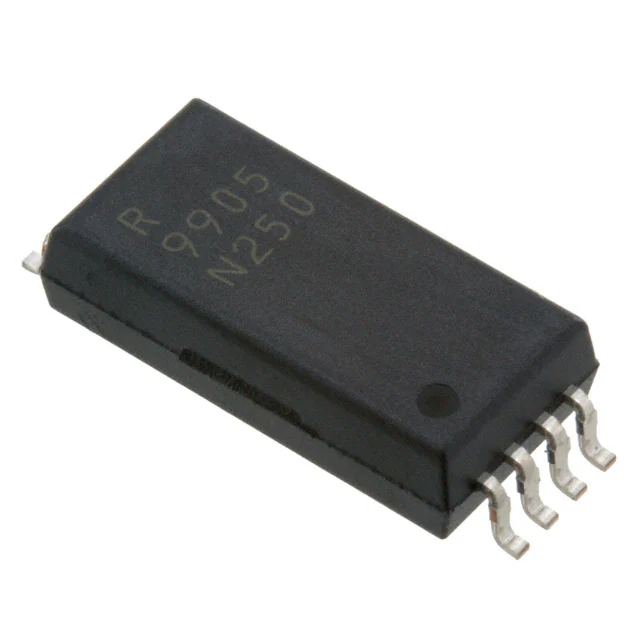

PS9905-Y-V-AXOPTOISO 7.5KV 1CH GT DVR 8LSDIP |
0 |
|
Datasheet |
- | 8-SOIC (0.543", 13.80mm Width) | Strip | Discontinued at Digi-Key | Optical Coupling | 1 | 7500Vrms | 25kV/µs | 150ns, 150ns | 75ns | 50ns, 50ns | 2A, 2A | 2.5A | 1.56V | 25 mA | 15V ~ 30V | - | - | -40°C ~ 110°C | Surface Mount | 8-LSDIP | CSA, SEMKO, UL, VDE |
|
|
SI823H6CD-AS3DGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H6AD-AS3DGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H6BD-AS3DGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
|
SI823H2AD-AS3DGTL ISO 5KV 2CH GATE DVR 14SOIC |
0 |
|
Datasheet |
- | 14-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 2 | 5000Vrms | 125kV/µs | 30ns, 30ns | 5ns | 12ns, 12ns (Max) | 4A, 4A | 6A | - | - | 5.5V ~ 30V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 14-SOIC | CQC, CSA, UL, VDE |
|
1EDI20I12SVXUMA1DIGITAL ISO 5KV 1CH GATE DVR |
0 |
|
Datasheet |
EiceDRIVER™ | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 5000Vrms | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | Surface Mount | - | - |
|
1EDU20I12SVXUMA1DIGITAL ISO 5KV 1CH GATE DVR |
0 |
|
Datasheet |
EiceDRIVER™ | - | Tape & Reel (TR) | Obsolete | Magnetic Coupling | 1 | 5000Vrms | - | - | - | - | - | - | - | - | - | - | - | -40°C ~ 125°C (TJ) | Surface Mount | - | - |
|
|
SI8287CD-IS4.0 AMP DRIVER WITH DESAT DETECT |
0 |
|
- |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
BM6101FV-CE2DGTL ISO 2.5KV 1CH GT DVR 20SSOP |
0 |
|
Datasheet |
- | 20-SSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Magnetic Coupling | 1 | 2500Vrms | 100V/µs | 350ns, 350ns | - | 50ns, 50ns | - | 5A, 1A | - | - | 14V ~ 24V | Automotive | AEC-Q100 | -40°C ~ 125°C | Surface Mount | 20-SSOP-B | UR |
|
|
SI8283BD-ISDGTL ISO 5KV 1CH GATE DVR 24SOIC |
0 |
|
Datasheet |
- | 24-SOIC (0.295", 7.50mm Width) | Tube | Active | Capacitive Coupling | 1 | 5000Vrms | 35kV/µs | 50ns, 50ns | 5ns | 5.5ns, 8.5ns | 2.5A, 3A | 4A | - | - | - | - | - | -40°C ~ 125°C | Surface Mount | 24-SOIC | CQC, CSA, UR, VDE |
