Interlock Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Circuit | Current Rating (Amps) | Voltage Rating | Voltage - Supply | Holding Force | Actuator Type | Termination Style | Features | Must Operate | Must Release | Conduit Thread Size | Operating Temperature | Ingress Protection | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SI-LS42DMHINTERLOCK SOLENOID LOCKING DPST |
4 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | DPST-NO/NC + DPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
|
SI-LS42DSGINTERLOCK SOLENOID RELEASE DPST |
3 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | DPST-NO/NC x 2 | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

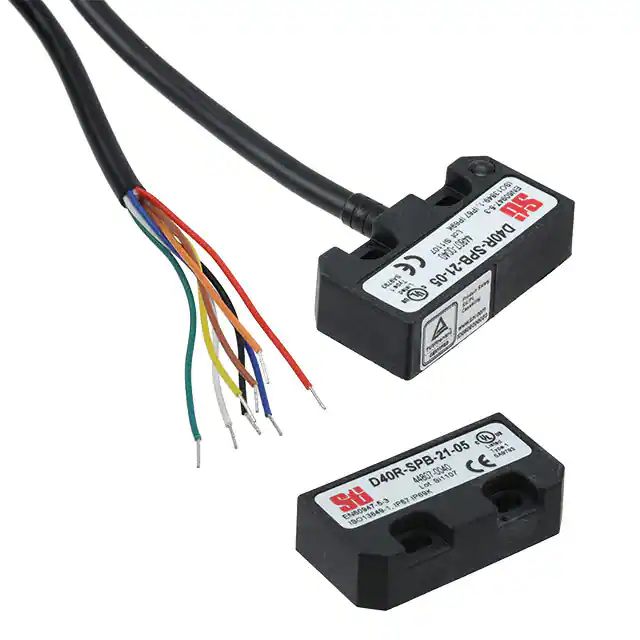

D40R-SPB-21-05INTERLOCK RFID 3PST 5M |
3 |
|
Datasheet |
D40R | Box | Active | RFID | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 10mm | 13mm | - | -25°C ~ 80°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
MA-10APC4INTERLOCK MAGNETIC SPST |
2 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | SPST-NC | 2A (AC) | 110VAC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4NL-4AFA-BINTERLOCK SOLENOID RELEASE DPST |
2 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | DPST-NO/NC (DB/DM) x 2 | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | M20 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|

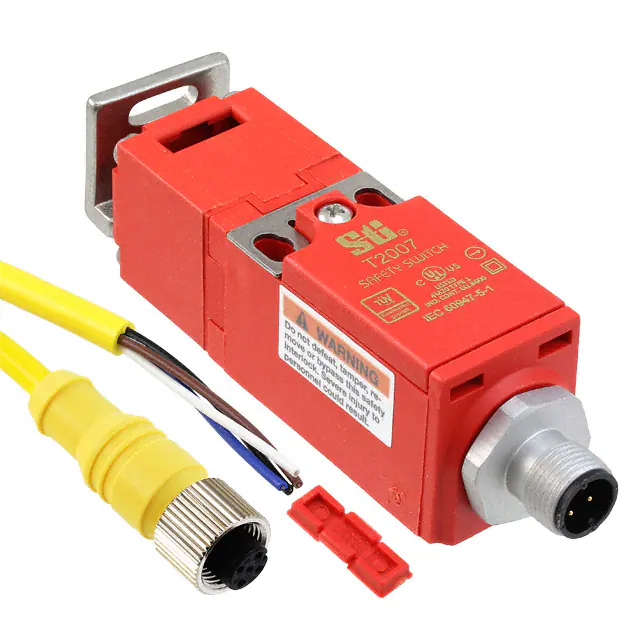

T2007-02SCC5INTERLOCK NON-LOCKING DPST |
18 |
|
Datasheet |
T2007 | Bulk | Active | Non-Locking | DPST-NC | 5A (AC), 2A (DC) | 100VAC, 24VDC | - | 612gf | Panel Disconnect | Cable with Connector (M12) | - | - | - | - | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
6027389INTERLOCK INDUCTIVE PROX 10-15MM |
3 |
|
Datasheet |
IN4000 | Bulk | Active | Inductive | - | - | - | 24VDC | - | Non-Contact | Connector (M12) | Staus Indicator | 10 ~ 15mm | 30mm | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

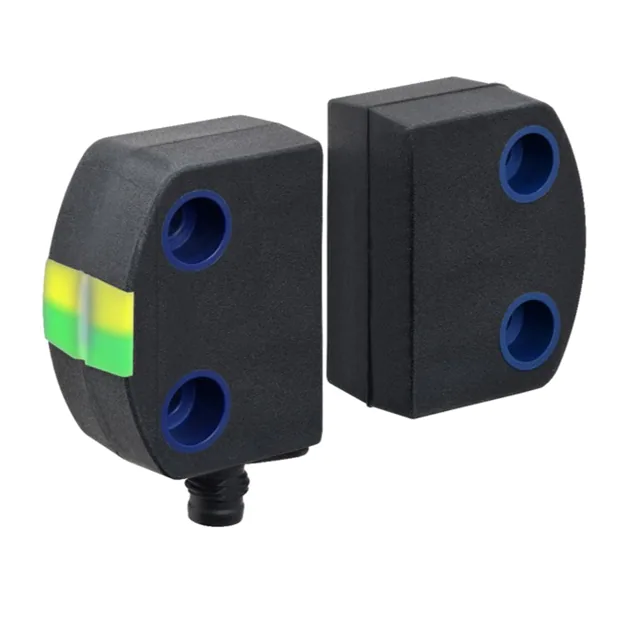

D41D1CDN1INTERLOCK RFID SENSOR |
2 |
|
Datasheet |
D41D | Box | Active | RFID | - | 250mA (DC) | 24VDC | 24VDC | - | Non-Contact | Connector (M8) | Status Indicator | 10mm | 18mm | - | -25°C ~ 65°C | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | CE, cULus |
|
D4NL-2AFA-B4INTERLOCK SOLENOID RELEASE 3PST |
4 |
|
Datasheet |
D4NL | Bulk | Active | Solenoid Release | 3PST-2NC/1NO | 3A (AC), 270mA (DC) | 240VAC, 250VDC | 24VDC | 133kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cULus, TUV |
|
|
SI-LS42DSJINTERLOCK SOLENOID RELEASE 3PST |
3 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Release | 3PST-NC + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|

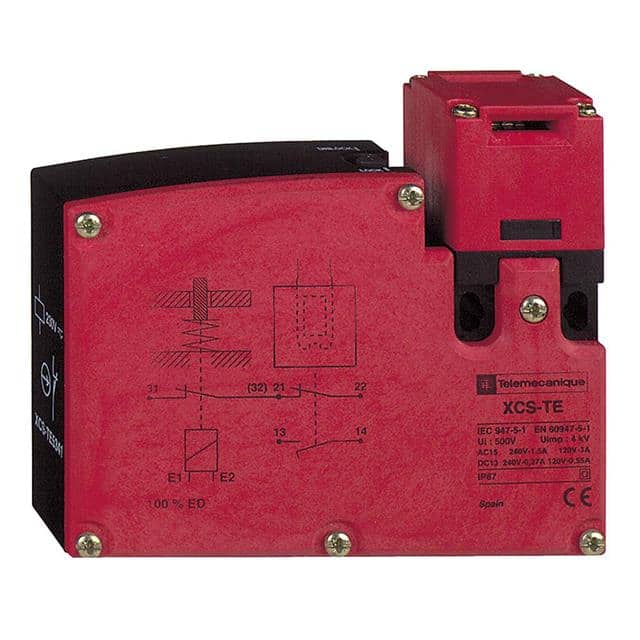

XCSTE7512INTERLOCK SOLENOID LOCKING DPST |
2 |
|
Datasheet |
XCST | Box | Active | Solenoid Locking | DPST-NC | 3A (AC), 550mA (DC) | 120VAC, 125VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | M16 x 1.5 | -25°C ~ 60°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
D40R-SPB-21-10INTERLOCK RFID 3PST |
4 |
|
Datasheet |
D40R | Box | Active | RFID | 3PST-2NC/1NO | 200mA (DC) | 24VDC | 24VDC | - | Non-Contact | Cable Leads | - | 10mm | 13mm | - | -25°C ~ 80°C | IP69K - Dust Tight, High Temp Water Jets, Waterproof | CE, cULus |
|
|
SI-LS42DMMIINTERLOCK SOLENOID LOCKING 3PST |
2 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4SL-N2GFA-DINTERLOCK SOLENOID RELEASE 3PST |
2 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Release | 3PST-NC + DPST-NO/NC | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | G1/2 | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
|

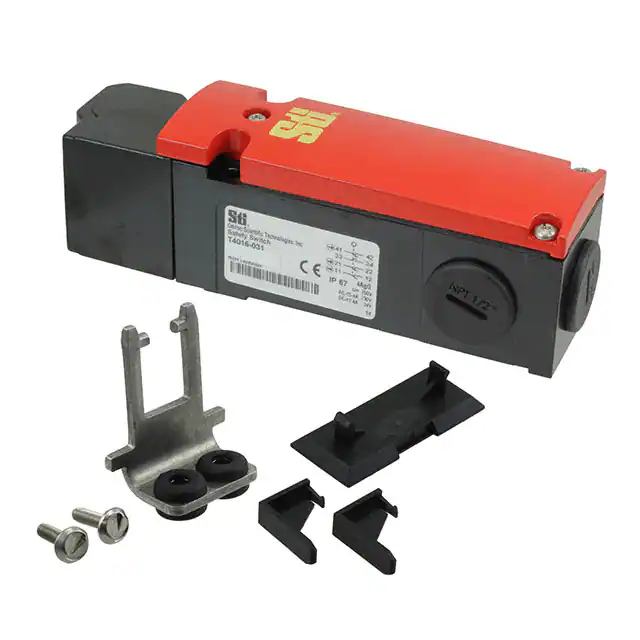

T4016-031TMINTERLOCK NON-LOCKING 3PST |
2 |
|
Datasheet |
T4016 | Bulk | Active | Non-Locking | 3PST-NC + SPST-NO | 4A (AC/DC) | 230VAC, 24VDC | - | 5kgf | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT x3 | -20°C ~ 80°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
SG-B1-MA-G5INTERLOCK SOLENOID RELEASE DPST |
4 |
|
Datasheet |
SG-B1 | Bulk | Active | Solenoid Release | DPST-NC | 2A (AC/DC) | 125VAC, 30VDC | 24VDC | 51kgf | Panel Disconnect | Cable Leads | Manual Override | - | - | - | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus, TUV |
|

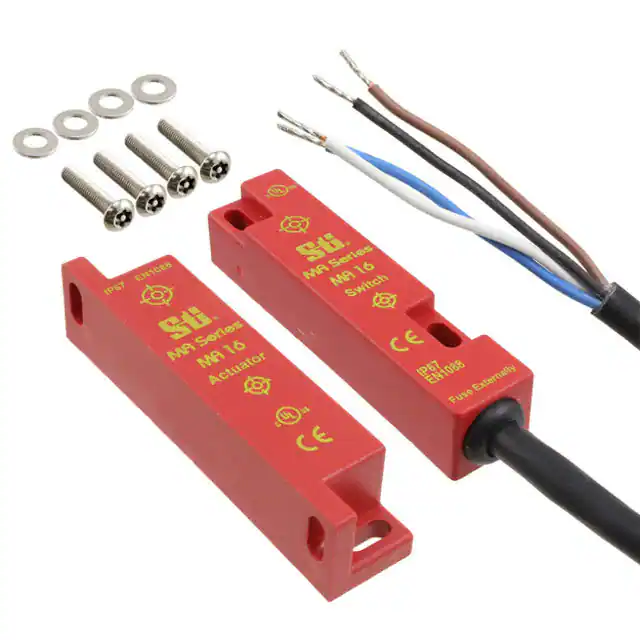

MA16DP20C3INTERLOCK MAGNETIC DPST |
6 |
|
Datasheet |
MA-STI | Bulk | Active | Magnetic | DPST-NC | 1A (DC) | 30VDC | - | - | Non-Contact | Cable Leads | - | 7 ~ 12mm | 12 ~ 25mm | - | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
XCSB713INTERLOCK SOLENOID LOCKING 3PST |
2 |
|
Datasheet |
XCSB | Box | Active | Solenoid Locking | 3PST-2NC/1NO | 6A (AC), 550mA (DC) | 240VAC, 250VDC | - | - | Panel Disconnect | Screw Terminal | - | - | - | 1/2" NPT | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CSA, UL |
|
SI-LS42DMMIFINTERLOCK SOLENOID LOCKING 3PST |
6 |
|
Datasheet |
SI-LS42 | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO + SPST-NC | 1A (AC) | 24VAC | 24VAC/DC | 153kgf | Panel Disconnect | Screw Terminal | Manual Override | - | - | M20 | -25°C ~ 70°C | IP67 - Dust Tight, Waterproof | CE, cULus |
|
D4SL-N3NFG-D4INTERLOCK SOLENOID LOCKING 3PST |
2 |
|
Datasheet |
D4SL-N | Bulk | Active | Solenoid Locking | 3PST-2NC/1NO x 2 | 1.5A (AC), 220mA (DC) | 120VAC, 125VDC | 24VDC | 6kgf | Panel Disconnect | Screw Terminal | Status Indicator | - | - | 1/2" NPT | -10°C ~ 55°C | IP67 - Dust Tight, Waterproof | CCC, CE, cURus, TUV |
Interlock Switches Electronic Components
Explore Interlock Switches electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
