Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TC7USB40MU,LF(S2EIC USB SWITCH SPDT DUAL 10UQFN Toshiba Semiconductor and Storage |
34,185 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 14Ohm | 2.3V ~ 4.3V | - | 1.5GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|
TC7W53FU,LFIC MUX/DEMUX 2:1 100OHM 8SSOP Toshiba Semiconductor and Storage |
14,264 |
|
- |
- | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | - | - | - | 2 | 100Ohm | 2V ~ 6V | ±2V ~ 6V | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SSOP |
|
|
TC4W53FU,LFIC MUX/DEMUX DUAL 1X1 8SOP Toshiba Semiconductor and Storage |
16,426 |
|
Datasheet |
- | 8-TSSOP, 8-MSOP (0.110", 2.80mm Width) | Tape & Reel (TR) | Active | - | - | - | 2 | 160Ohm | 3V ~ 18V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SSOP |
|
TC7USB40FT(EL)IC SWITCH USB DUAL SPDT 14TSSOP Toshiba Semiconductor and Storage |
5,827 |
|
Datasheet |
- | 14-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 14Ohm | 2.3V ~ 4.3V | - | 1.5GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
TC7USB42MU,LF(S2EIC USB SWITCH SPDT DUAL 10UQFN Toshiba Semiconductor and Storage |
18,961 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | SPDT | 2 | 14Ohm | 2.3V ~ 4.3V | - | 1.5GHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|

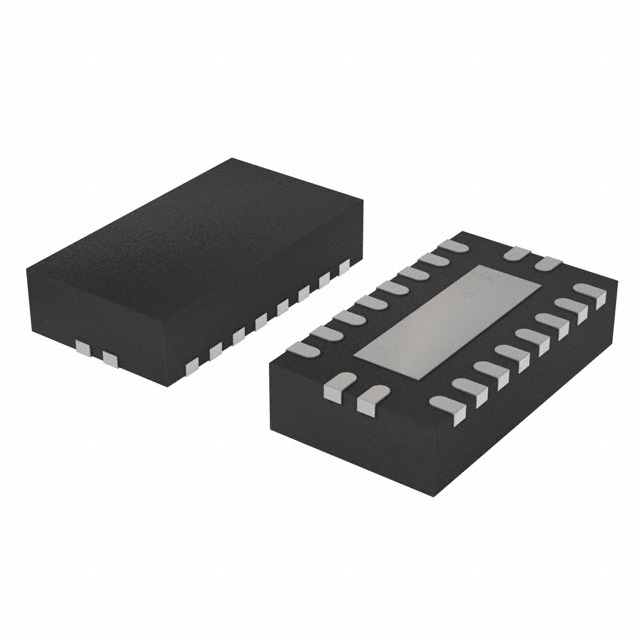

TC7PCI3212MT,LFIC MUX/DEMUX QUAD 1:2 20TQFN Toshiba Semiconductor and Storage |
21,375 |
|
Datasheet |
- | 20-UFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | SPDT | 4 | 13.5Ohm | 3V ~ 3.6V | - | 11.5GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-TQFN (2.5x4.5) |
|
TC7W53FK,LFIC MUX/DEMUX 2:1 100OHM 8SSOP Toshiba Semiconductor and Storage |
24,418 |
|
- |
- | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Active | - | - | - | 2 | 100Ohm | 2V ~ 6V | ±2V ~ 6V | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SSOP |
|
TDS4A212MX,ELFPCIE SWITCH 2:1 MUX/DE-MUX SPDT Toshiba Semiconductor and Storage |
4,931 |
|
Datasheet |
- | 16-XFQFN | Tape & Reel (TR) | Active | DisplayPort, PCIe, Thunderbolt, USB | 2:1 | SPDT | 2 | 15Ohm | 1.6V ~ 3.6V | - | 26.2GHz | Break-Before-Make, USB 3.2 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-XQFN (2.4x1.6) |
|
|
TDS4B212MX,ELFPCIE SWITCH 2:1 MUX/DE-MUX SPDT Toshiba Semiconductor and Storage |
4,884 |
|
Datasheet |
- | 16-XFQFN | Tape & Reel (TR) | Active | DisplayPort, PCIe, Thunderbolt, USB | 2:1 | SPDT | 2 | 15Ohm | 1.6V ~ 3.6V | - | 27.5GHz | Break-Before-Make, USB 3.2 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-XQFN (2.4x1.6) |
|
|
TC7WBL3305CFK,LFIC USB SWITCH SPST DUAL US8 Toshiba Semiconductor and Storage |
300 |
|
- |
- | 8-VFSOP (0.091", 2.30mm Width) | Tape & Reel (TR) | Obsolete | - | - | - | 2 | 19Ohm | 1.65V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SSOP |
