Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

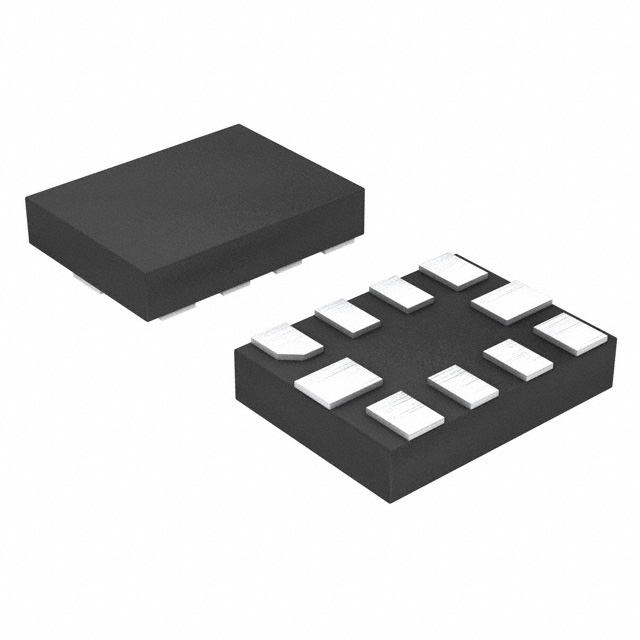

NX3DV221GM,115IC USB 2.0 SWITCH HS 10XQFN NXP USA Inc. |
12,478 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 7Ohm | 2.3V ~ 3.6V | - | 1GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|
NX3DV2567GU,115IC ANLG SWITCH 4PDT 16XQFN NXP USA Inc. |
3,024 |
|
Datasheet |
- | 16-XFQFN | Tape & Reel (TR) | Active | Networking | - | 4PDT | 1 | 700mOhm | 1.4V ~ 4.3V | - | 160MHz | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-XQFN (1.8x2.6) |
|
|
CBTL01023GM,115IC MUX/DEMUX 1CH 10-XQFN NXP USA Inc. |
6,886 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 1 | 6Ohm (Typ) | 3V ~ 3.6V | - | 9GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-XQFN (1.55x2) |
|

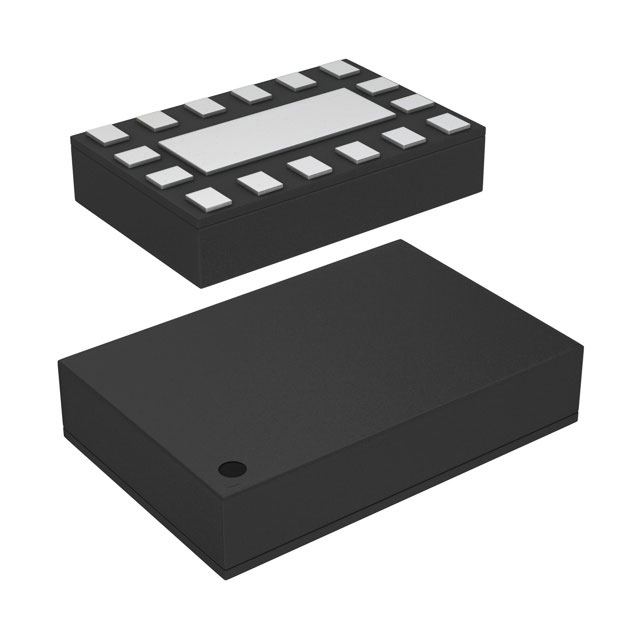

CBTU02043HEJIC DIFF SWITCH 2:1 HUQFN16 NXP USA Inc. |
17,948 |
|
Datasheet |
- | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 2:1 | - | 2 | - | 1.62V ~ 3.63V | - | 12GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-HUQFN (1.6x2.4) |
|
|
CBTU02044HEJSWITCH 1-2 PCIE GEN4 HUQFN16 NXP USA Inc. |
35,637 |
|
Datasheet |
- | 16-UFQFN Exposed Pad | Tape & Reel (TR) | Active | PCIe | 1:2 | SPDT | 2 | 14Ohm | 1.62V ~ 3.63V | - | 17GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-HUQFN (1.6x2.4) |
|
CBTL02043ABQ,115IC MUX/DEMUX 2:1 PCI 20DHVQFN NXP USA Inc. |
11,676 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 2 | 6Ohm (Typ) | 3V ~ 3.6V | - | 10GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DHVQFN (4.5x2.5) |
|
|
CBTL02042ABQ,115IC MUX/DEMUX 2:1 PCI 20DHVQFN NXP USA Inc. |
10,414 |
|
Datasheet |
- | 20-VFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort, PCIe, USB | 2:1 | - | 2 | 6Ohm (Typ) | 3V ~ 3.6V | - | 7GHz | Bi-Directional, SATA | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-DHVQFN (4.5x2.5) |
|
NX3DV42GU10XIC USB 2.0 SWITCH HS 10XQFN NXP USA Inc. |
48,988 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 950MHz | Break-Before-Make, USB 2.0 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.3x1.6) |
|
NX3DV42GU,115IC USB SWITCH DPDT XQFN10 NXP USA Inc. |
21,859 |
|
Datasheet |
- | 10-XFQFN | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6.5Ohm | 3V ~ 4.3V | - | 950MHz | Break-Before-Make, USB 2.0 | -40°C ~ 125°C (TA) | - | - | Surface Mount | 10-XQFN (1.4x1.8) |
|
NX3DV642GU,115IC SWITCH TPDT DIFF XQFN24 NXP USA Inc. |
13,000 |
|
Datasheet |
- | 24-XFQFN | Tape & Reel (TR) | Last Time Buy | MIPI | - | 3PDT | 1 | 14Ohm | 2.65V ~ 4.3V | - | 950MHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-XQFN (2.5x3.4) |
