Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

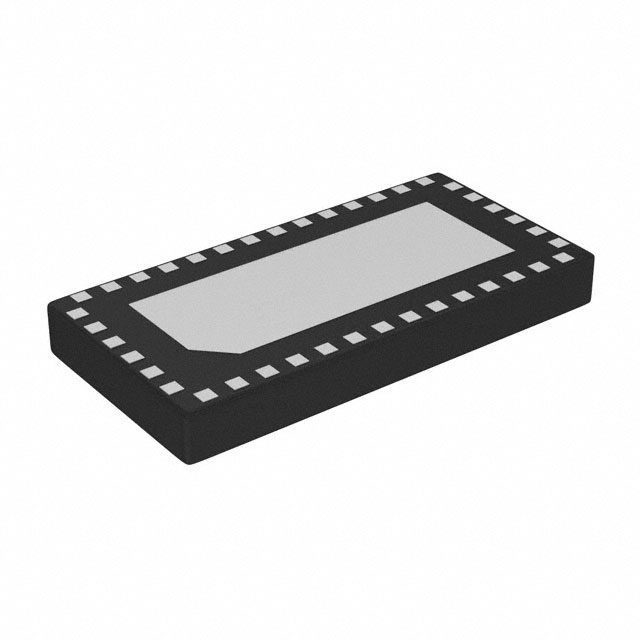

PI3USB31532ZLEIC SWITCH USB 3.1 6:4 40TQFN |
0 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tray | Obsolete | USB | 3:2 | - | 5 | - | 3V ~ 3.6V | - | 8GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-TQFN (3x6) |
|
|
PI3USB31532ZLEXIC SWITCH USB 3.1 6:4 40TQFN |
0 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 3:2 | - | 5 | - | 3V ~ 3.6V | - | 8GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-TQFN (3x6) |
.jpg)
|

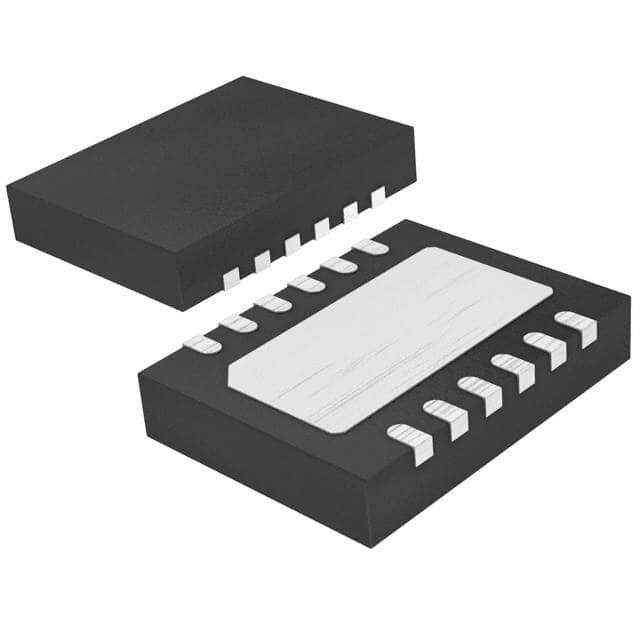

PI3DBV10ZEEXIC VIDEO SWITCH 2X1 12TDFN |
0 |
|
Datasheet |
- | 12-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 1 | 8Ohm | 3V ~ 3.6V | - | 500MHz | - | - | - | - | Surface Mount | 12-TDFN (3.5x3) |
|
PI3VEDP212ZLEIC SWITCH 2:1 DISPLAYPORT 32TQFN |
0 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tray | Obsolete | DisplayPort | 2:1 | SPDT | 6 | - | 3.3V | - | 3.25GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (3x6) |
|
PI3WVR31212AZLEIC MUX/DEMUX 2:1 DP/HDMI 60TQFN |
0 |
|
Datasheet |
- | 60-WFQFN Exposed Pad | Tray | Obsolete | HDMI | 2:1 | SPDT | 1 | 50Ohm | 3V ~ 3.6V | - | 1.5GHz | - | - | - | - | Surface Mount | 60-TQFN (5x9) |
|
|
PI3WVR31212ZLEIC MUX/DEMUX 2:1 DP/HDMI 60TQFN |
0 |
|
Datasheet |
- | 60-WFQFN Exposed Pad | Tray | Obsolete | HDMI | 2:1 | SPDT | 1 | 50Ohm | 3V ~ 3.6V | - | 1.5GHz | - | - | - | - | Surface Mount | 60-TQFN (5x9) |
|
|
PI3WVR31310AZLEIC MUX/DEMUX 3:1 15 OHM 60TQFN |
0 |
|
Datasheet |
- | 60-WFQFN Exposed Pad | Tray | Obsolete | HDMI | 3:1 | - | 1 | 15Ohm | 3V ~ 3.6V | - | 5.4GHz | - | - | - | - | Surface Mount | 60-TQFN (5x9) |
|
|
PI3WVR31313AZLEIC MUX/DEMUX 3:1 15 OHM 60TQFN |
0 |
|
Datasheet |
- | 60-WFQFN Exposed Pad | Tray | Obsolete | HDMI | 3:1 | - | 4 | 50Ohm | 3V ~ 3.6V | - | 5.6GHz | - | - | - | - | Surface Mount | 60-TQFN (5x9) |
|
PI2PCIE2412AEIC SWITCH QUAD 2:1 42TQFN |
0 |
|
Datasheet |
- | 42-VFQFN Exposed Pad | Tube | Active | PCI Express® | 2:1 | - | 4 | - | 1.5V ~ 1.8V | - | 4.1GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
PI3USB32224AXEAEXIC SWITCH USB 1:1 10 OHM |
0 |
|
- |
- | 24-XFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 1:1 | SPST | 2 | 10Ohm | 3V ~ 4.3V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-X1QFN (2x4) |
|
PI3USB304ZHEXIC SWITCH USB DUAL 2:1 42TQFN |
0 |
|
- |
- | 42-VFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1 | - | 2 | - | 3V ~ 3.6V | - | 8.2GHz | Bi-Directional, USB 3.0 | - | - | - | Surface Mount | 42-TQFN (9x3.5) |
|
|
PI3USB30532ZLEXIC MUX/DEMUX USB 6:1 40TQFN |
0 |
|
Datasheet |
- | 40-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 6:1 | - | 1 | - | 3V ~ 3.6V | - | - | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 40-TQFN (3x6) |
|
PI5USB2544AZHEXIC USB CNTRL DETECT SWTCH 16TQFN |
0 |
|
Datasheet |
- | 16-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | - | - | 1 | - | 4.5V ~ 5.5V | - | 2GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|

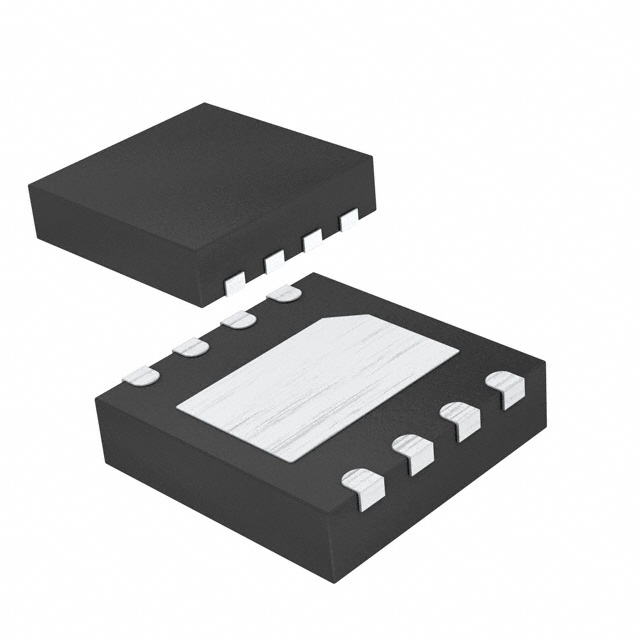

PI5USB1468AZAEXIC USB HOST CONTROLLER 8TDFN |
0 |
|
Datasheet |
- | 8-WFDFN Exposed Pad | Tape & Reel (TR) | Obsolete | USB | 2:1, 3:1 | - | 2 | 10Ohm | 4.75V ~ 5.25V | - | 1.35GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (2x2) |
|
|
PI3V724ZLEIC MUX/DEMUX 2:1 5.6 OHM 32TQFN |
0 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | SPDT | 3 | 5.6Ohm | 3.3V, 5V | - | 1.7GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (3x6) |
|
|
PI3V724ZLEXIC MUX/DEMUX 2:1 5.6 OHM 32TQFN |
0 |
|
Datasheet |
- | 32-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | SPDT | 3 | 5.6Ohm | 3.3V, 5V | - | 1.7GHz | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 32-TQFN (3x6) |
 Exp Pad.jpg)
|

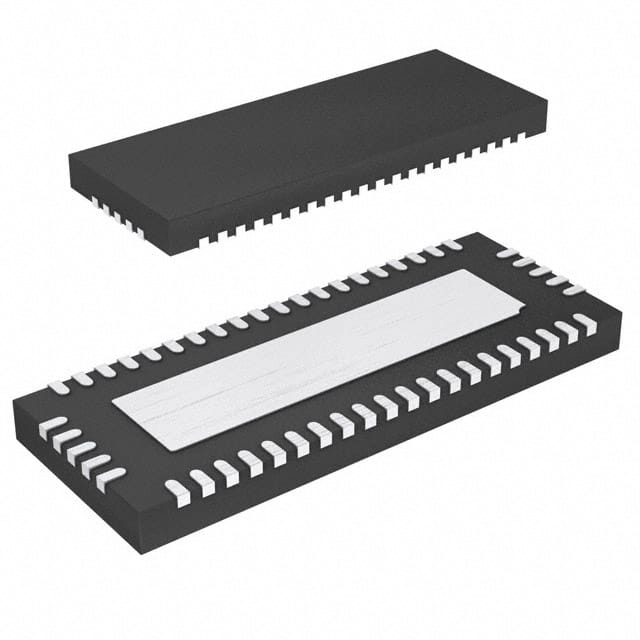

PI3WVR12612ZLEIC VIDEO SWITCH HDMI 52TQFN |
0 |
|
Datasheet |
- | 52-WFQFN Exposed Pad | Tray | Obsolete | Video | 2:1 | - | 1 | - | 3.3V | - | 4.1GHz | HDMI | - | - | - | Surface Mount | 52-TQFN (3.5x9) |
|
|
PI3WVR12612ZLEXIC VIDEO SWITCH HDMI 52TQFN |
0 |
|
- |
- | 52-WFQFN Exposed Pad | Tape & Reel (TR) | Obsolete | Video | 2:1 | - | 1 | - | 3.3V | - | 4.1GHz | HDMI | - | - | - | Surface Mount | 52-TQFN (3.5x9) |
|
|
NAS7820-AABC FIC PERIPHERAL CONTROLLER |
0 |
|
- |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PEX8509-AA25BIIC PCI EXPRESS SWITCH |
0 |
|
Datasheet |
* | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
