Analog Switches - Special Purpose
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | Applications | Multiplexer/Demultiplexer Circuit | Switch Circuit | Number of Channels | On-State Resistance (Max) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | -3db Bandwidth | Features | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NX3DV2567HR-Q100XIC ANLG SWITCH 4PDT 16HXQFN |
1,210 |
|
Datasheet |
- | 16-XFQFN Exposed Pad | Tape & Reel (TR) | Active | Networking | - | 4PDT | 1 | 700mOhm | 1.4V ~ 4.3V | - | 160MHz | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-HXQFN (3x3) |
|
NS5S1153MUTAGIC SW DPDT USB2.0/AUDIO 10UQFN |
1,945 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | Audio, USB | - | DPDT | 1 | 4.6Ohm | 2.7V ~ 5V | - | 900MHz | Noise Reduction | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.4x1.8) |
|
TS3L110PWRIC ETHERNET SWITCH QUAD 16TSSOP |
3,139 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 4 | 8Ohm | 3V ~ 3.6V | - | 500MHz | 10/100 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TS3L110DRIC ETHERNET SWITCH QUAD 16SOIC |
251 |
|
Datasheet |
- | 16-SOIC (0.154", 3.90mm Width) | Tape & Reel (TR) | Active | Networking | 2:1 | SPDT | 4 | 8Ohm | 3V ~ 3.6V | - | 500MHz | 10/100 Base-T | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS3USBCA420IRSVTSBU MUX 4TO1 W/ MIC AND GNDIND T |
709 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Active | USB | 4:1 | - | 1 | 7.1Ohm | 2.4V ~ 5.5V | - | 550MHz | USB 2.0 | -40°C ~ 85°C | - | - | Surface Mount | 16-UQFN (2.6x1.8) |
|
BD11600NUX-E2IC USB SWITCH DPDT 10-VSON |
29,497 |
|
Datasheet |
- | 10-UFDFN Exposed Pad | Tape & Reel (TR) | Active | USB | - | DPDT | 1 | 6Ohm | 2.5V ~ 5.5V | - | - | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | VSON010X3020 |
|
FUSB252UMXTYPE-C USB CC WITH D+D- PORT PR |
26,993 |
|
Datasheet |
- | 16-UFQFN | Tape & Reel (TR) | Active | USB | - | - | 2 | 480mOhm | 2.7V ~ 5.5V | - | 1GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UMLP (1.8x2.6) |
|
PI3USB9201ZTAEXUSB SLEEP CHARGE U-QFN2020-12 |
22,814 |
|
Datasheet |
- | 12-UFQFN | Tape & Reel (TR) | Active | Controller | 1:1 | SPST | 2 | - | 2.75V ~ 5.5V | - | - | - | -40°C ~ 85°C | - | - | Surface Mount | U-QFN2020-12 (Type C) |
|

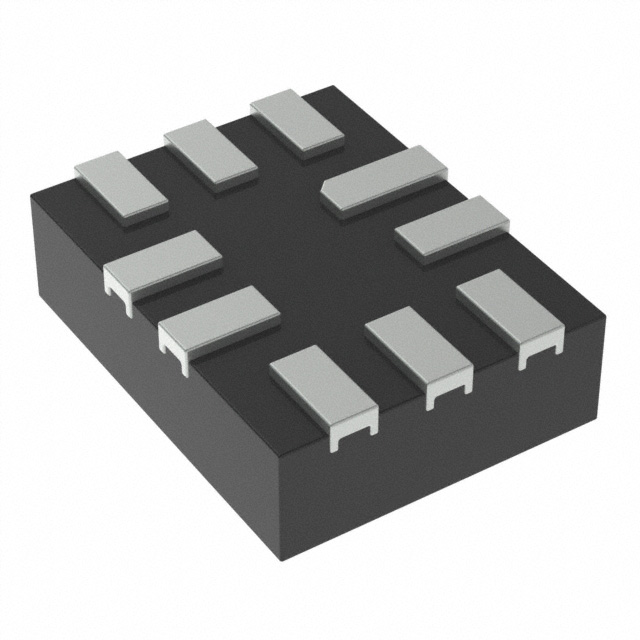

PI3USB102ZMEXIC USB SWITCH DUAL 2X1 10UQFN |
10,321 |
|
Datasheet |
- | 10-UFQFN | Tape & Reel (TR) | Active | USB | 2:1 | - | 1 | 5Ohm | 2.7V ~ 4.2V | - | 810MHz | Bi-Directional, USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UQFN (1.8x1.4) |
|

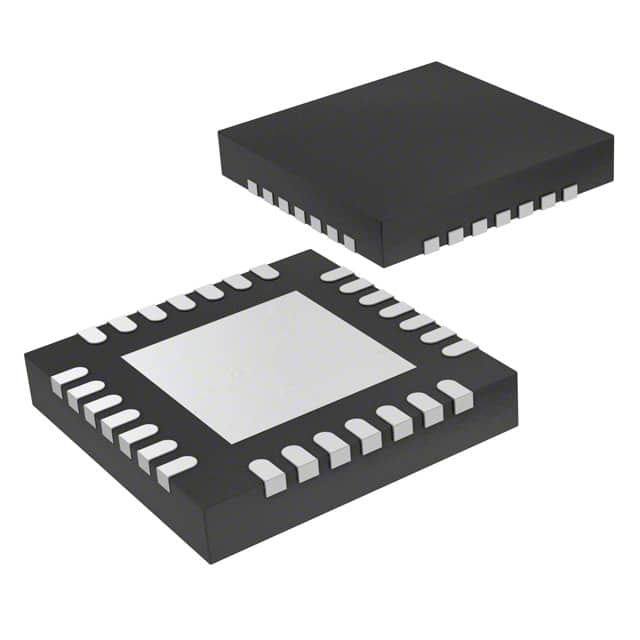

HD3SS460RHRRIC MUX 6:4 14 OHM 28WFQFN |
4,744 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 4:6 | - | 1 | 14Ohm | 3V ~ 3.6V | - | 5.4GHz | Bi-Directional | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-WQFN (5.5x3.5) |
|
HD3SS3415RUATIC MUX 2:1 8 OHM 42WQFN |
17,257 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | - | 4 | 8Ohm | 3V ~ 3.6V | - | 8GHz | Bi-Directional | 0°C ~ 70°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
TS3DV416DGGRIC MUX/DEMUX 16X8 48TSSOP |
593 |
|
Datasheet |
- | 48-TFSOP (0.240", 6.10mm Width) | Tape & Reel (TR) | Active | Video | 16:8 | - | 1 | 8Ohm | 3V ~ 3.6V | - | 900MHz | DVI, HDMI | -40°C ~ 85°C (TA) | - | - | Surface Mount | 48-TSSOP |
|
|
HD3SS460IRHRRIC MUX 6:4 14 OHM 28WFQFN |
6,452 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 4:6 | - | 1 | 14Ohm | 3V ~ 3.6V | - | 5.4GHz | Bi-Directional | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-WQFN (5.5x3.5) |
|

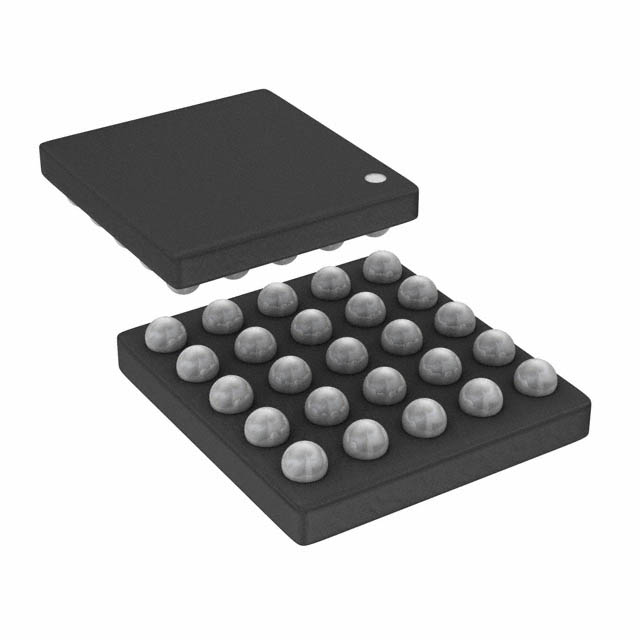

FSA4480UCXANALOG SWITCH |
5,275 |
|
Datasheet |
- | 25-UFBGA, WLCSP | Tape & Reel (TR) | Active | Audio | - | DPDT | 6 | 1Ohm | 2.7V ~ 5.5V | - | 950MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 25-WLCSP (2.24x2.28) |
|

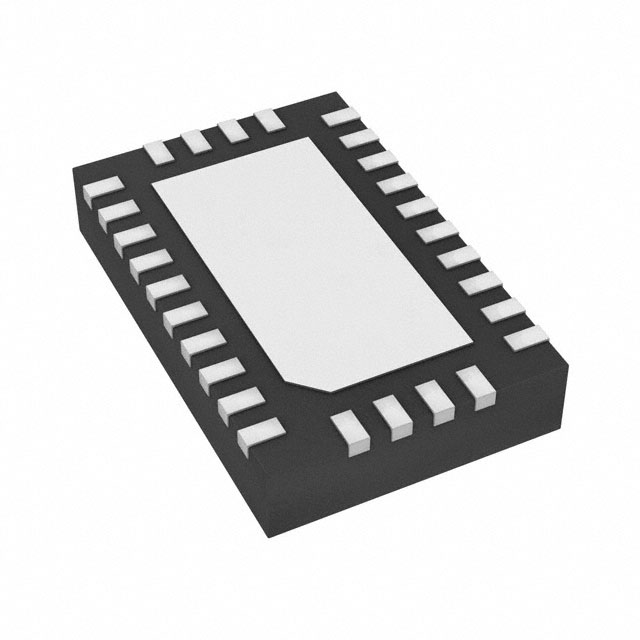

HD3SS460RHRTIC MUX/DEMUX 4CH TYPE C2 28WQFN |
2,316 |
|
Datasheet |
- | 28-WFQFN Exposed Pad | Tape & Reel (TR) | Active | USB | 4:6 | - | 1 | 14Ohm | 3V ~ 3.6V | - | 5.4GHz | Bi-Directional | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-WQFN (5.5x3.5) |
|
|
HD3SS3412RUATIC MUX 4 X 2:1 42WQFN |
1,519 |
|
Datasheet |
- | 42-WFQFN Exposed Pad | Tape & Reel (TR) | Active | PCI Express® | 2:1 | - | 4 | 8Ohm | 3V ~ 3.6V | - | 8GHz | Bi-Directional | 0°C ~ 70°C (TA) | - | - | Surface Mount | 42-WQFN (3.5x9) |
|
FSA646UCX2:1 MIPI D-PHY(2.5GBPS) 4-DATA L |
5,215 |
|
Datasheet |
- | 36-UFBGA, WLCSP | Tape & Reel (TR) | Active | MIPI | 2:1 | SPDT | 4 | 6Ohm (Typ) | 1.5V ~ 5V | - | 2.5GHz | Break-Before-Make | -40°C ~ 85°C (TA) | - | - | Surface Mount | 36-WLCSP (2.43x2.43) |
 Exp Pad.jpg)
|
PI3WVR13612ZLEXDISPLAY SWITCH W-QFN3590-52 |
18,120 |
|
Datasheet |
DisplayPort™ | 52-WFQFN Exposed Pad | Tape & Reel (TR) | Active | DisplayPort | 2:1 | SPDT | 4 | - | 3V ~ 3.6V | - | 7GHz | HDMI | -40°C ~ 105°C | - | - | Surface Mount | 52-TQFN (3.5x9) |
|
CBTL06DP213EE,118IC MUX 6CH DISPLAY PORT 48TFBGA |
9,800 |
|
Datasheet |
- | 48-TFBGA | Tape & Reel (TR) | Active | DisplayPort, PCIe | 2:1, 4:1 | - | 6 | 14Ohm (Typ) | 3V ~ 3.6V | - | 11.1GHz | Bi-Directional | -40°C ~ 105°C (TA) | - | - | Surface Mount | 48-TFBGA (5x5) |
|
PI3USB14-ALEXIC USB SWITCH 4:1 16TSSOP |
2,463 |
|
Datasheet |
- | 16-TSSOP (0.173", 4.40mm Width) | Tape & Reel (TR) | Active | USB | 4:1 | - | 2 | 8Ohm | 3.3V | - | 815MHz | USB 2.0 | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
