Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG401DY-T1-E3IC SWITCH SPST-NOX2 45OHM 16SOIC |
2,373 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 45Ohm | - | 13V ~ 36V | ±7V ~ 22V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -94.8dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MC74HCT4051ADR2GIC MUX 8:1 100OHM 16SOIC |
14,336 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 80MHz | - | 130pF | 200nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC74HCT4051ADGIC MUX 8:1 100OHM 16SOIC |
3,573 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 80MHz | - | 130pF | 200nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|

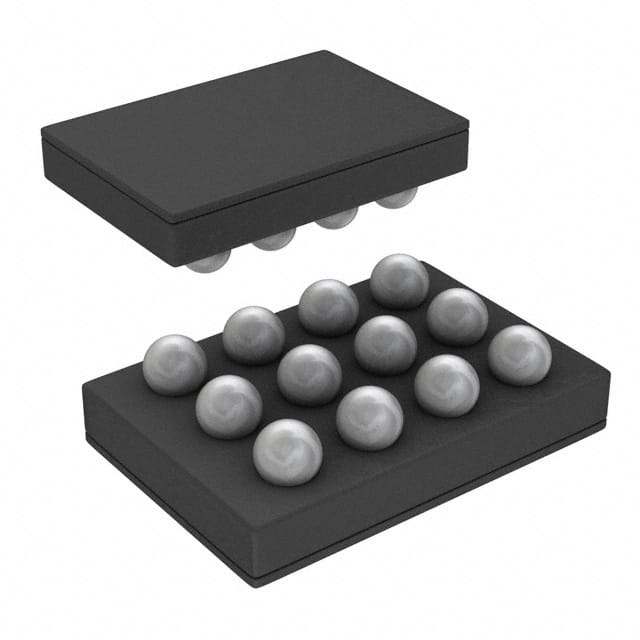

LMS4684ITL/NOPBIC SWITCH SPDTX2 800MOHM 12USMD |
717 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 800mOhm | 1.11mOhm | 1.8V ~ 5.5V | - | 60ns, 40ns | - | 200pC | - | 1nA | -72dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-uSMD (1.59x2.33) |
|
MC74HC4851ADGIC MUX 8:1 400OHM 16SOIC |
231 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 400Ohm | - | 2V ~ 6V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC14053BDGIC SWITCH SPDT X 3 280OHM 16SOIC |
1,036 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 3 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | 7.5pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MC74HC4053ADGIC SWITCH SPDT X 3 100OHM 16SOIC |
1,116 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 3 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 120MHz | - | 50pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG613EEN-T1-GE4IC SWITCH SPST 115OHM 16MINIQFN |
20,022 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 115Ohm | 2.5Ohm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
DG612EEQ-T1-GE4IC SW SPST-NOX4 115OHM 16TSSOP |
12,124 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 115Ohm | 600mOhm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG611EEQ-T1-GE4IC SW SPST-NCX4 115OHM 16TSSOP |
4,740 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 115Ohm | 2.5Ohm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG612EEN-T1-GE4IC SW SPST-NOX4 115OHM 16MINIQFN |
4,509 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 115Ohm | 600mOhm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
DG417LEDQ-T1-GE3IC SWITCH SPST X 1 9OHM 8TSSOP |
2,122 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 1 | 9Ohm | - | 3V ~ 16V | ±3V ~ 8V | 40ns, 35ns | - | 26pC | 11pF, 32pF | 10nA | -72dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
|
DG612EEY-T1-GE4IC SW SPST-NOX4 115OHM 16SOIC |
514 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 115Ohm | 2.5Ohm | 3V ~ 12V | ±3V ~ 5V | 50ns, 35ns | 1GHz | 1.4pC | 3pF, 3pF | 100pA | -74dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG418LEDQ-T1-GE3IC SWITCH SPST X 1 9OHM 8TSSOP |
412 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 1 | 9Ohm | - | 3V ~ 16V | ±3V ~ 8V | 40ns, 35ns | - | 26pC | 11pF, 32pF | 10nA | -72dB @ 1MHz | -40°C ~ 85°C | - | - | Surface Mount | 8-TSSOP |
|
PI5A23157ZUAEXIC SWITCH SPDT X 2 15OHM 10UQFN |
6,487 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 15Ohm | 150mOhm | 1.65V ~ 5.5V | - | 12ns, 8ns | 220MHz | 7pC | 2.8pF | 1µA | -66dB @ 10MHz | -40°C ~ 125°C | - | - | Surface Mount | 10-UQFN (1.5x2) |
|
MC74LVX4051MNTWGIC MUX 8:1 26OHM 16QFN |
3,173 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±2.5V ~ 6V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-QFN (2.5x3.5) |
|
DG2524DN-T1-GE4IC SWITCH SPDT X 4 550MOHM 16QFN |
5,922 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 1:2 | 4 | 550mOhm | 50mOhm | 1.8V ~ 5.5V | - | 60µs, 1µs | 310MHz | -19pC | 14.5pF | 1nA | -89dB @ 100kHz | -40°C ~ 85°C | - | - | Surface Mount | 16-QFN (3x3) |
|
DG2535EDN-T1-GE4IC SWITCH SPDT X 2 500MOHM 10DFN |
1,360 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 500mOhm | 60mOhm | 1.65V ~ 5.5V | - | 78ns, 58ns | 120MHz | - | - | - | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-DFN (3x3) |
|
MC74LVX4051DTR2GIC MUX 8:1 26OHM 16TSSOP |
4,509 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 26Ohm | 10Ohm | 2.5V ~ 6V | ±2.5V ~ 6V | - | 80MHz | 12pC | 10pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG442LEDY-GE3IC SWITCH SPST-NOX4 26OHM 16SOIC |
548 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 26Ohm | 100mOhm | 3V ~ 16V | ±3V ~ 8V | 60ns, 35ns | - | 6.6pC | 5pF, 6pF | 1nA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
