Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG802BRM-R2IC SW SPST-NCX1 300MOHM 8MSOP |
0 |
|
Datasheet |
- | Bulk | Active | SPST - NC | 1:1 | 1 | 300mOhm | - | 1.8V ~ 5.5V | - | 45ns, 15ns | 12MHz | 50pC | 180pF, 180pF | 250pA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
74HCT4351D/C411874HCT4351D - SINGLE-ENDED MUX |
0 |
|
Datasheet |
- | Bulk | Active | SP8T - Open/Closed | 8:1 | 1 | 120Ohm | 6Ohm | 4.5V ~ 5.5V | ±1V ~ 5V | 35ns, 23ns | 170MHz | - | 3.5pF | 100nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-SO |
|

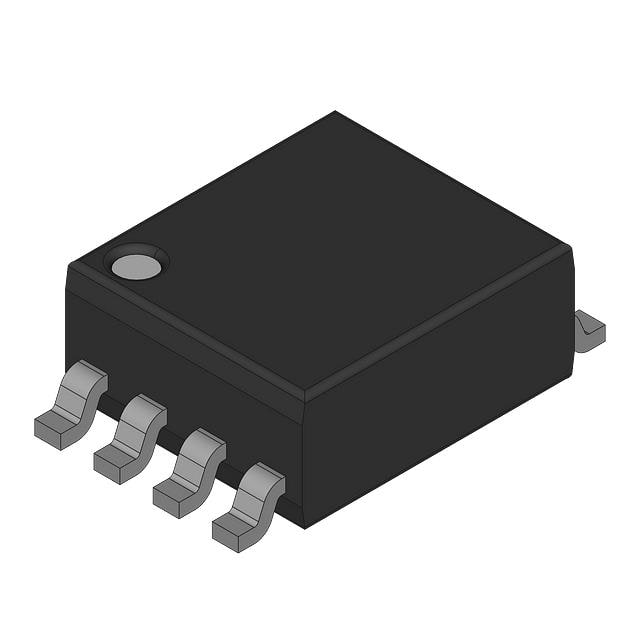

74HC2G66DC-Q10012574HC2G66DC-Q100 - SPST, 2 FUNC |
0 |
|
Datasheet |
74HC | Bulk | Active | SPST - NO | 1:1 | 2 | 70Ohm | 3Ohm | 2V ~ 10V | - | 20ns, 27ns | 200MHz | - | - | 1µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 8-VSSOP |
|
74LVC4066D-Q100118SPST |
0 |
|
Datasheet |
74LVC | Bulk | Active | SPST - NO | 1:1 | 4 | 15Ohm | - | 1.65V ~ 5.5V | - | 5ns, 6.5ns | 500MHz | 7.5pC | 8pF | 20µA | -58dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 14-SO |
|
74HC4051PW/S999118SINGLE-ENDED MUX, 8 CHANNEL |
0 |
|
Datasheet |
74HC | Bulk | Active | SP8T - Open/Closed | 8:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 51ns, 42ns | 180MHz | - | 3.5pF | 400nA | - | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4737EBEIC SW SPST-NOX4 4.5OHM 16UCSP |
0 |
|
- |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 4.5Ohm | 100mOhm | 1.8V ~ 5.5V | - | 80ns, 40ns | 300MHz | 5pC | 9pF | 500pA | -80dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UCSP (2x2) |
|
NX3L1T5157GMAZIC SWITCH SPDT X 1 900MOHM 6XSON |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 900mOhm | 100mOhm | 1.4V ~ 4.3V | - | 40ns, 20ns | 60MHz | 15pC | 35pF | 10nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 6-XSON, SOT886 (1.45x1) |
|
DG413DJIC SW SPST-NO/NCX4 35OHM 16DIP |
0 |
|
Datasheet |
- | Bulk | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C | - | - | Through Hole | 16-PDIP |
|
SCNLVHC4851ADTR2GIC MUX 8:1 400OHM 16TSSOP |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 400Ohm | 60Ohm (Max) | 2V ~ 6V | - | - | - | - | 40pF | 100nA | - | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-TSSOP |
|
NLV14067BDWGIC MUX 16:1 280OHM 24SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | - | - | 100pF | 100nA | - | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-SOIC |
|
|
SLVHC4060ADTR2GIC REG LINEAR |
0 |
|
- |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
ASNT6163-KHCIC SWITCH SPDT X 1 24CQFN |
0 |
|
Datasheet |
- | Bulk | Active | SPDT | 1:2 | 1 | - | - | 3.4V ~ 3.8V | - | 500p, 500p | 32GHz | - | - | - | - | -25°C ~ 85°C | - | - | Surface Mount | 24-CQFN (4x4) |
|
ASNT6164-KMMIC MUX 2:2 44CQFP |
0 |
|
Datasheet |
- | Bulk | Active | - | 2:2 | 1 | - | - | 3.4V ~ 3.8V | - | 500p, 500p | 32GHz | - | - | - | - | -25°C ~ 85°C | - | - | Surface Mount | 44-CQFP (11.4x11.4) |
|
|
ALVC1G66VSE-E-PIC ANALOG SWITCH 5-VSON |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
8100617EA/MLBIC SWITCH DPDTX1 45OHM 16CERDIP |
0 |
|
Datasheet |
- | Bulk | Active | DPDT | 2:2 | 1 | 45Ohm | 10Ohm | 15V | ±15V | - | - | - | 60pF, 60pF | 1nA | - | -55°C ~ 125°C | - | - | Through Hole | 16-CERDIP |
|
HEF4067BT,652NOW NEXPERIA HEF4067BT - SINGLE- |
0 |
|
Datasheet |
- | Bulk | Active | - | 16:1 | 1 | 155Ohm | 5Ohm | 3V ~ 15V | - | - | 70MHz | - | 7.5pF | 200nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-SO |
|
ISL8484IUZIC SWITCH SPDTX2 500MOHM 10MSOP |
0 |
|
Datasheet |
- | Bulk | Active | SPDT | 2:1 | 2 | 500mOhm | 60mOhm | 1.65V ~ 4.5V | - | 40ns, 20ns | - | 170pC | 62pF | 100nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
MAX4577EUA+TIC SW SPST-NO/NCX2 70OHM 8UMAX |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 2 | 70Ohm | 500mOhm | 2V ~ 12V | - | 150ns, 80ns | 300MHz | 4pC | 20pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
DG409DVZ-TR5321IC SWITCH SP4TX2 100OHM 16TSSOP |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 15Ohm (Max) | 5V ~ 34V | ±5V ~ 20V | 150ns, 150ns | - | 20pC | 3pF, 14pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
74LV1G66ACME-EIC UNI-LOGIC GATE BUFFER SMD |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | - | - | - | - | - | 1.65V ~ 5.5V | - | - | - | - | - | - | - | -40°C ~ 85°C | - | - | - | - |
