Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TS3A27518ERTWRIC SWITCH SPDT X 6 6.2OHM 24WQFN |
8,634 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-WQFN (4x4) |
|
TMUX1072RUTRIC SWITCH SPDT X 2 18OHM 12UQFN |
6,132 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 18Ohm | 70mOhm | 2.3V ~ 5.5V | - | 250µs, 10µs | 1.2GHz | - | 4pF, 4pF | 185µA | -90dB @ 100kHz | -40°C ~ 125°C | - | - | Surface Mount | 12-UQFN (1.7x2) |
|
DG470EY-T1-E3IC SWITCH SPDT X 1 6OHM 8SOIC |
13,183 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V ~ 36V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
DG469EQ-T1-E3IC SWITCH SPDT X 1 6OHM 8MSOP |
9,619 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V ~ 36V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
DG469EY-T1-E3IC SWITCH SPDT X 1 6OHM 8SOIC |
7,518 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V ~ 36V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG470EQ-T1-E3IC SWITCH SPDT X 1 6OHM 8MSOP |
5,403 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 6Ohm | 120mOhm | 12V ~ 36V | ±4.5V ~ 15V | 166ns, 108ns | - | 58pC | 37pF, 85pF | 500pA | -63dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 8-MSOP |
|
TS3A4751PWRIC SW SPST-NOX4 900MOHM 14TSSOP |
9,272 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 14ns, 9ns | 125MHz | 3pC | 23pF, 20pF | 2nA | -95dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|

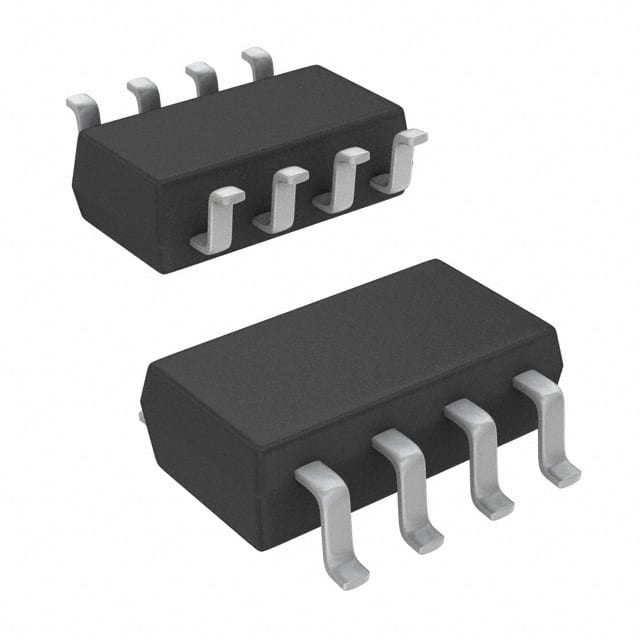

DG449DS-T1-E3IC SWITCH SPDT X 1 45OHM SOT23-8 |
19,458 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 45Ohm | 5Ohm (Max) | 7V ~ 36V | ±4.5V ~ 20V | 146ns, 104ns | - | 5pC | 8pF | 1nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|

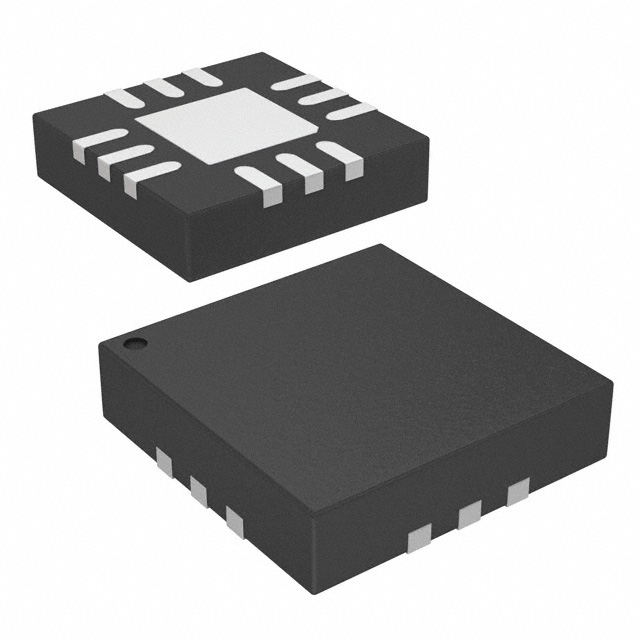

DG2034EDN-T1-GE4IC SWITCH SP4T X 1 2.5OHM 12QFN |
14,297 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | 2.5Ohm | 20mOhm | 1.8V ~ 5.5V | - | 25ns, 20ns | 166MHz | -2.6pC | 7pF, - | 2nA | -71dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 12-QFN (3x3) |
|
DG636EEN-T1-GE4IC SWITCH SPDTX2 96OHM 16MINIQFN |
19,127 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 96Ohm | 300mOhm | 3V ~ 16V | ±3V ~ 8V | 46ns, 55ns | 700MHz | -0.33pC | 3.7pF, 4.4pF | 1nA | -62dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
DG604EEQ-T1-GE4IC SW SPST-NOX2 101OHM 14TSSOP |
14,931 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 101Ohm | 5Ohm | 3V ~ 16V | ±3V ~ 8V | 54ns, 52ns | 414MHz | -0.3pC | 4.2pF, 6.8pF | 1nA | -65dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
|
DG4051EEN-T1-GE4IC MUX 8:1 78OHM 16MINIQFN |
11,877 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 78Ohm | 910mOhm | 3V ~ 16V | ±3V ~ 8V | 75ns, 88ns | 308MHz | 0.3pC | 2.2pF, 9.2pF | 1nA | -105dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
|
DG4053EEN-T1-GE4IC SWITCH SPDTX3 78OHM 16MINIQFN |
9,930 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 78Ohm | 910mOhm | 3V ~ 16V | ±3V ~ 8V | 75ns, 88ns | 930MHz | 0.3pC | 2pF, 3.1pF | 1nA | -105dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-miniQFN (1.8x2.6) |
|
DG2730DN-T1-GE4IC SWITCH DPDTX1 8OHM 10MINIQFN |
9,474 |
|
Datasheet |
- | Tape & Reel (TR) | Active | DPDT | 2:2 | 1 | 8Ohm | 800mOhm | 2.7V ~ 4.3V | - | 30ns, 25ns | 900MHz | 0.5pC | 2.2pF | 100nA | -45dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-miniQFN (1.4x1.8) |
|
DG4051EEQ-T1-GE3IC MUX 8:1 78OHM 16TSSOP |
7,765 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 78Ohm | 910mOhm | 3V ~ 16V | ±3V ~ 8V | 75ns, 88ns | 308MHz | 0.3pC | 2.2pF, 9.2pF | 1nA | -105dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG4053EEQ-T1-GE3IC SWITCH SPDT X 3 78OHM 16TSSOP |
5,683 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 78Ohm | 910mOhm | 3V ~ 16V | ±3V ~ 8V | 75ns, 88ns | 930MHz | 0.3pC | 2pF, 3.1pF | 1nA | -105dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG2723DN-T1-E4IC SWITCH SPDTX2 8OHM 10MINIQFN |
5,568 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 8Ohm | 800mOhm | 2.7V ~ 4.3V | - | 30ns, 25ns | 700MHz | 3pC | 2.5pF | 100nA | -36dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-miniQFN (1.4x1.8) |
|
|
DG636EEQ-T1-GE4IC SWITCH SPDT X 2 96OHM 14TSSOP |
2,387 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 96Ohm | 2Ohm | 3V ~ 16V | ±3V ~ 8V | 56ns, 61ns | 700MHz | -0.33pC | 3.7pF, 4.4pF | 500pA | -62dB @ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
TS3A27518EPWRIC SWITCH SPDTX6 6.2OHM 24TSSOP |
3,407 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 6 | 6.2Ohm | 300mOhm | 1.65V ~ 3.6V | - | 59ns, 60.6ns | 240MHz | 0.81pC | 13pF, 8.5pF | 1µA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
|
DG412DQ-T1-E3IC SW SPST-NOX4 35OHM 16TSSOP |
19,147 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 35Ohm | - | - | ±15V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
