Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ISL43L121IRZIC SW SPST-NCX2 250MOHM 8TDFN |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
ISL43L122IRZIC SW SPST-NO/NCX2 250MOHM 8TDFN |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
|
ISL43L712IRZIC SW SPST-NO/NCX2 250MOHM 8TDFN |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-TDFN (3x3) |
|
ISL43L840IRZIC SWITCH SP4T X 2 750MOHM 16QFN |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | - | - | -96pC | 62pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QFN (3x3) |
|
|
ISL8499IRTZIC SWITCH SPDTX4 250MOHM 16TQFN |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 4 | 250mOhm | 40mOhm | 1.65V ~ 4.5V | - | 25ns, 23ns | - | -120pC | 106pF | 50nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
ISL84582IVZ-TIC SWITCH SP4T X 2 60OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 60Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 50ns, 35ns | - | 0.3pC | 3pF, 12pF | 20pA (Typ) | -110dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
ISL43L120IUZ-TIC SW SPST-NOX2 250MOHM 8MSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ISL43L121IUZ-TIC SW SPST-NCX2 250MOHM 8MSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 2 | 250mOhm | 5mOhm | 1.65V ~ 3.6V | - | 25ns, 25ns | - | -125pC | 182pF, 182pF | 3nA | -94dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ISL43L410IUZ-TIC SWITCH DPDTX1 400MOHM 10MSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 1 | 400mOhm | 30mOhm | 1.65V ~ 3.6V | - | 20ns, 12ns | - | 95pC | 115pF | 2nA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-MSOP |
|
|
ISL43L840IVZ-TIC SWITCH SP4TX2 750MOHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | - | - | -96pC | 62pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
DG211CYZTIC SW SPST-NCX4 175OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 175Ohm | - | - | ±15V | 460ns, 450ns | - | - | 5pF, 5pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG401DVZ-TIC SW SPST-NOX2 45OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 45Ohm | 3Ohm | 5V ~ 34V | ±5V ~ 17V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ISL54056IRUZ-TIC SWITCH SPDTX4 550MOHM 16UTQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 4 | 550mOhm | 50mOhm | 1.65V ~ 4.5V | - | 33ns, 16ns | - | 248pC | 38pF | 70nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UTQFN (2.6x1.8) |
|
ISL54048IRUZ-TIC SW SPST-NOX2 300MOHM 10UTQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 300mOhm (Typ) | 60mOhm | 1.65V ~ 4.5V | - | 40ns, 20ns | - | 170pC | 62pF | 100nA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
ISL54047IRUZ-TIC SW SPST-NOX2 450MOHM 10UTQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 450mOhm (Typ) | 40mOhm | 1.65V ~ 4.5V | - | 40ns, 35ns | - | 192pC | 46pF | 100nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-UTQFN (1.8x1.4) |
|
ISL54057IRUZ-TIC SWITCH SP4TX1 750MOHM 16UTQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 1 | 750mOhm | 90mOhm | 1.6V ~ 3.6V | - | 27ns, 18ns | - | - | 44pF, 149pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UTQFN (2.6x1.8) |
|
ISL54051IRUZ-TIC SW SPST-NOX1 860MOHM 6UTDFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 860mOhm (Typ) | - | 1.8V ~ 5.5V | - | 24ns, 10ns | 190MHz | 26pC | 16pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|

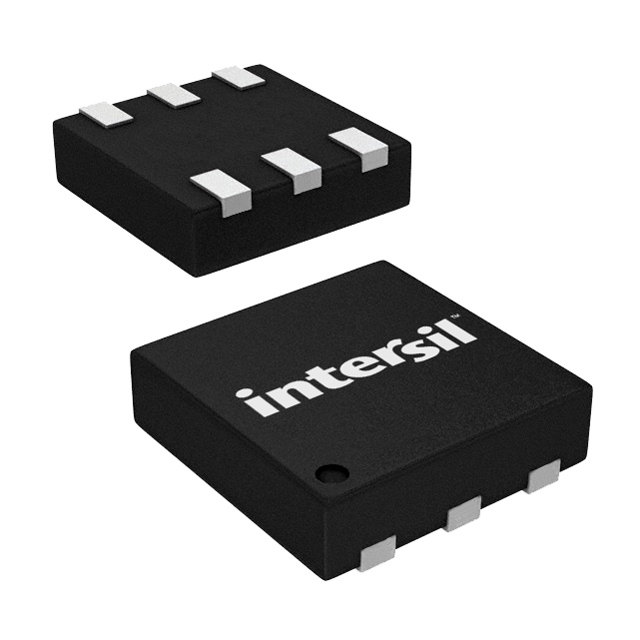

ISL54052IRUZ-TIC SW SPST-NCX1 860MOHM 6UTDFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 860mOhm (Typ) | - | 1.8V ~ 5.5V | - | 24ns, 10ns | 190MHz | 26pC | 16pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|
|
ISL54054IRUZ-TIC SW SPST-NOX1 360MOHM 6UTDFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 1 | 360mOhm (Typ) | - | 1.8V ~ 5.5V | - | 12ns, 12ns | 72MHz | 71pC | 30pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
|
|
ISL54055IRUZ-TIC SW SPST-NCX1 360MOHM 6UTDFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 360mOhm (Typ) | - | 1.8V ~ 5.5V | - | 12ns, 12ns | 72MHz | 71pC | 30pF | 10nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-UTDFN (1.2x1) |
