Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX398ESE+TIC MUX 8:1 100OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 100Ohm | 6Ohm (Max) | 3V ~ 15V | ±3V ~ 8V | 150ns, 150ns | - | 2pC | 11pF, 40pF | 100pA | -92dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX399ESE+TIC SWITCH SP4T X 2 100OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 2 | 100Ohm | 6Ohm (Max) | 3V ~ 15V | ±3V ~ 8V | 150ns, 150ns | - | 2pC | 11pF, 20pF | 100pA | -92dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX361CPE+IC SWITCH SPST-NCX4 85OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX368CPNIC MUX 8:1 1.8KOHM 18DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 1.8kOhm | 180Ohm | - | ±4.5V ~ 18V | 1.5µs, 1µs | - | 55pC | 5pF, 25pF | 5nA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 18-PDIP |
|
|
IH5051CPEIC SWITCH SPDT X 2 75OHM 16DIP |
0 |
|
- |
- | Tube | Obsolete | SPDT | 2:1 | 2 | 75Ohm | 8Ohm | - | ±4.5V ~ 20V | 600ns, 300ns (Typ) | - | 10pC | - | 100nA | - | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
ADG658TRUZ-EP-RL7IC MUX 8:1 75OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 12V | ±2V ~ 6V | 115ns, 45ns | 210MHz | 2pC | 4pF, 28pF | 200pA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|

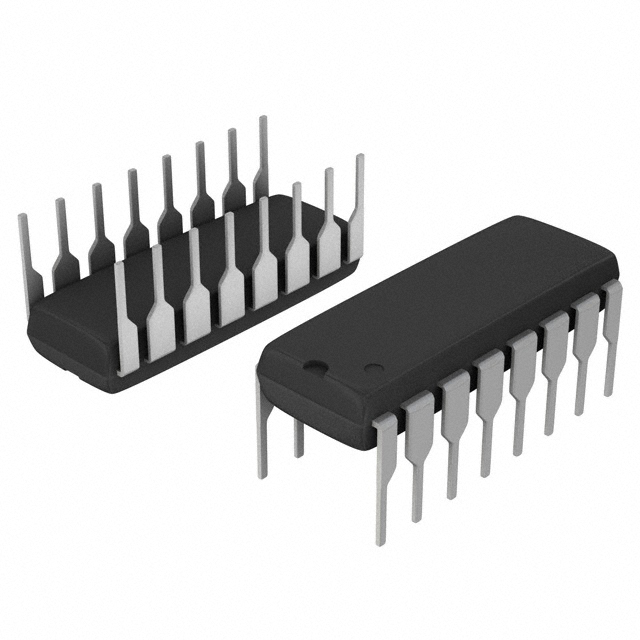

ALD4201PCLIC SWITCH SPST-NCX4 135OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 240ns, 130ns | - | 2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4202MPCLIC SWITCH SPST-NOX4 135OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 240ns, 130ns | - | 2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4211PCLIC SWITCH SPST-NCX4 135OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4212PCLIC SWITCH SPST-NOX4 135OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ALD4213PCLIC SW SPST-NO/NCX4 135OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO/NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
ADG613SRUZ-EP-RL7IC SW SPST-NO/NC 115OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 40ns | 680MHz | -0.5pC | 5pF, 5pF | 100pA | -90dB @ 10MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX396CWIIC MUX 16:1 100OHM 28SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 16:1 | 1 | 100Ohm | 1.8Ohm | 2.7V ~ 16V | ±2.7V ~ 8V | 150ns, 150ns | - | 2pC | 11pF, 80pF | 100pA | -92dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 28-SOIC |
|
|
MAX353CSE+TIC SW SPST-NO/NCX4 35OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX351ESE+TIC SWITCH SPST-NCX4 35OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 35Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX352CSE+TIC SWITCH SPST-NOX4 35OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 35Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX351CSE+TIC SWITCH SPST-NCX4 35OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 35Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX353ESE+TIC SW SPST-NO/NCX4 35OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 35Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG407BDWIC MUX DUAL 8:1 60OHM 28SOIC |
0 |
|
Datasheet |
- | Bulk | Obsolete | - | 8:1 | 2 | 60Ohm | 3Ohm | 7.5V ~ 44V | ±5V ~ 20V | 107ns, 88ns | - | 11pC | 6pF, 54pF | 500pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 28-SOIC |
|
ADG904SCPZ-EP-RL7IC SWITCH SP4T X 1 20LFCSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP4T | 4:1 | 1 | - | - | 1.65V ~ 2.75V | - | 10ns, 16ns | 2.5GHz | - | 2pF | 1µA | -58dB @ 100MHz | -55°C ~ 125°C (TA) | - | - | Surface Mount | 20-LFCSP (4x4) |
