Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG819BRT-500RL7IC SWITCH SPDTX1 600MOHM SOT23-6 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 600mOhm | 60mOhm | 1.8V ~ 5.5V | - | 45ns, 16ns | 17MHz | 20pC | 80pF | 250pA | -72dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | SOT-23-6 |
|
ADG1613BCPZ-REELIC SW SPST-NO/NCX4 1.1OHM 16CSP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 1.1Ohm | 30mOhm | 3.3V ~ 16V | ±3.3V ~ 8V | 156ns, 87ns | 38MHz | 170pC | 60pF, 60pF | 300pA | -110dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-LFCSP-VQ (4x4) |
|
DG405BDY-E3IC SWITCH SPST-NOX4 45OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Last Time Buy | SPST - NO | 1:1 | 4 | 45Ohm | - | 13V ~ 36V | ±7V ~ 22V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -94.8dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG411DJIC SWITCH SPST-NCX4 35OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 35Ohm | - | 5V ~ 44V | ±5V ~ 20V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|

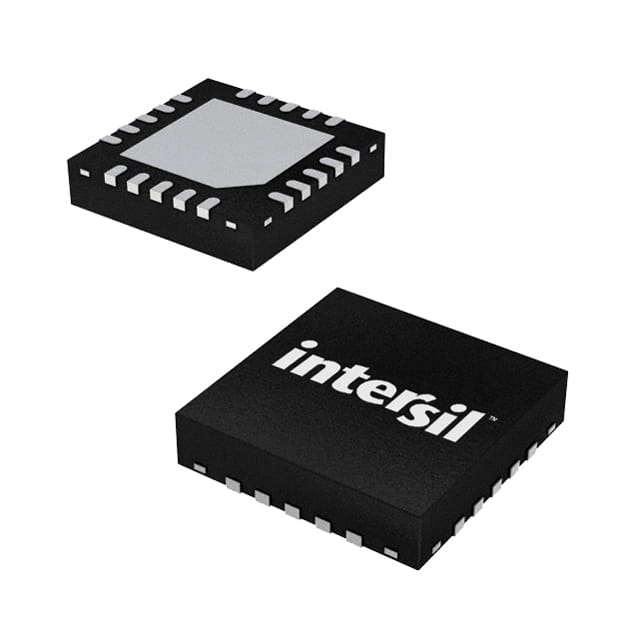

ISL43240IRZIC SWITCH SPDT X 4 25OHM 20QFN |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 10pF | 200pA | -92dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
|
ADG211AKRZ-REELIC SW SPST-NCX4 115OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 115Ohm | 5.75Ohm | 15V | ±15V | 600ns, 450ns | - | 20pC | 5pF, 5pF | 5nA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX320EUA+TIC SWITCH SPST-NOX2 35OHM 8UMAX |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 35Ohm | 300mOhm | - | ±2.7V ~ 8V | 150ns, 100ns | - | 2pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
ISL84714IHZ-T7AIC SWITCH SPDTX1 600MOHM SC70-6 |
11 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 600mOhm | 5mOhm | 1.65V ~ 3.6V | - | 11ns, 7ns | - | 20pC | 40pF | 2nA | -50dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
ADG620BRTZ-REEL7IC SWITCH SPDTX1 6.5OHM SOT23-8 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 6.5Ohm | 700mOhm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 330ns | 190MHz | 110pC | 25pF | 250pA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
DG9425DQ-T1-E3IC SWITCH SPST-NCX4 3OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 3Ohm | - | 3V ~ 16V | ±3V ~ 8V | 51ns, 35ns | - | 38pC | 49pF, 37pF | 1nA | -77dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
DG9426DQ-T1-E3IC SW SPST-NO/NCX4 3OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 3Ohm | - | 3V ~ 16V | ±3V ~ 8V | 51ns, 35ns | - | 38pC | 49pF, 37pF | 1nA | -77dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TMUX6211RUMRIC SW SPST-NOX4 3.1OHM 16WQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
TMUX6212RUMRIC SW SPST-NCX4 3.1OHM 16WQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
TMUX6213RUMRIC SW SPST-NO/NCX4 3.1OHM 16WQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 3.1Ohm | 100mOhm | 4.5V ~ 36V | ±4.5V ~ 18V | 180ns, 200ns | 50MHz | 78pC | 28pF, 45pF | 1nA | -93dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-WQFN (4x4) |
|
|
HI3-0201-5IC SWITCH SPST-NCX4 80OHM 16DIP |
0 |
|
- |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 80Ohm | - | 5V ~ 30V | ±4.5V ~ 18V | 500ns, 350ns | - | 20pC | 5pF, 5pF | 10nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
DG611DY-T1IC SWITCH SPST-NCX4 45OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 4 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG612DY-T1IC SWITCH SPST-NOX4 45OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 5MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
DG613DY-T1IC SWITCH SPST X 4 45OHM 16SOIC |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 45Ohm | 2Ohm | 10V ~ 18V | ±10V ~ 15V | 35ns, 25ns | 500MHz | 4pC | 3pF, 2pF | 250pA | -87dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4522CPE+IC SWITCH SPST-NOX4 100OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
MAX4647EUT-TIC SWITCH SPST-NC X 1 25OHM SOT6 |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 25Ohm | 800mOhm | 9V ~ 36V | ±4.5V ~ 20V | 100ns, 100ns | - | 4pC | 6pF, 6pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-6 |
