Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG445DYIC SWITCH SPST-NOX4 85OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 170ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
DG441DVZ-TIC SW SPST-NCX4 85OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 85Ohm | - | 5V ~ 34V | ±5V ~ 22V | 250ns, 120ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MPQ2735GG-AEC1-PIC SWITCH SPDT X 2 450MOHM 10QFN |
0 |
|
- |
- | Tape & Reel (TR) | Active | SPDT | - | 2 | 450mOhm | 10mOhm (Typ) | 1.65V ~ 5.5V | - | 24ns, 20ns (Typ) | 50MHz | - | 6pF | - | -70dB @ 100kHz | - | Automotive | AEC-Q100 | Surface Mount | 10-QFN (2x2) |
|
STMLS05ACQTRIC SW SPSTX5 125MOHM 16UFQFPN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST | 1:1 | 5 | 125mOhm | - | 1.8V ~ 3.6V | - | 10ms, 1.7ms | - | - | - | 200nA | - | -40°C ~ 70°C (TA) | - | - | Surface Mount | 16-UFQFPN (3x3) |
|
DG2522DN-T1-E4IC SWITCH SP3TX1 1.1OHM 8MINIQFN |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SP3T | 3:1 | 1 | 1.1Ohm | 100mOhm (Max) | 1.6V ~ 5.5V | - | 75ns, 60ns | 105MHz | 27pC | 51pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-miniQFN (1.4x1.4) |
|
MAX4649EKA-TIC SWITCH SPDT X 1 45OHM SOT23-8 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 45Ohm | 600mOhm | 9V ~ 36V | ±4.5V ~ 20V | - | - | 2pC | 6pF | 2nA | -92dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
MAX4613EEE+TIC SW SPST-NO/NCX4 70OHM 16QSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO/NC | 1:1 | 4 | 70Ohm | 4Ohm (Max) | 4.5V ~ 40V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
DG441BDJIC SWITCH SPST-NCX4 80OHM 16DIP |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 4 | 80Ohm | 2Ohm | 13V ~ 36V | ±7V ~ 22V | 220ns, 120ns | - | -1pC | 4pF, 4pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
DG442BDJIC SWITCH SPST-NOX4 80OHM 16DIP |
0 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NO | 1:1 | 4 | 80Ohm | 2Ohm | 13V ~ 36V | ±7V ~ 22V | 220ns, 120ns | - | -1pC | 4pF, 4pF | 500pA | -95dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-DIP |
|
DG442DJIC SWITCH SPST-NOX4 85OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 85Ohm | 4Ohm (Max) | 12V | ±15V | 250ns, 210ns | - | -1pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 16-PDIP |
|
DG417BDYIC SWITCH SPST-NCX1 25OHM 8SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 25Ohm | - | 13V ~ 36V | ±7V ~ 22V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG418BDYIC SWITCH SPST-NOX1 25OHM 8SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 1 | 25Ohm | - | 13V ~ 36V | ±7V ~ 22V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
|
DG419BDYIC SWITCH SPDT X 1 25OHM 8SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 1 | 25Ohm | - | 13V ~ 36V | ±7V ~ 22V | 89ns, 80ns | - | 38pC | 12pF, 12pF | 250pA | -88dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-SOIC |
|
TS12A44513PWRIC SW SPST-NO/NCX4 10OHM 14TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO/NC | 1:1 | 4 | 10Ohm | 2.5Ohm (Max) | 2.7V ~ 12V | - | 75ns, 45ns | 530MHz | -10.5pC | 8pF, 8pF | 1nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
MAX4630EPDIC SWITCH SPST-NCX4 70OHM 14DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 70Ohm | 500mOhm | 2V ~ 12V | - | 150ns, 80ns | 300MHz | 5pC | 20pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 14-PDIP |
|
MAX4630ESDIC SWITCH SPST-NCX4 70OHM 14SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 70Ohm | 500mOhm | 2V ~ 12V | - | 150ns, 80ns | 300MHz | 5pC | 20pF, 12pF | 500pA | -90dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
DG421CJIC SWITCH SPST-NOX2 35OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 35Ohm | 3Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 200ns | - | 10pC | 12pF, 12pF | 500pA | -90dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX4051CEEIC MUX 8:1 100OHM 16QSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 100Ohm | 12Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
|
MAX4053CEEIC SWITCH SPDT X 3 100OHM 16QSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPDT | 2:1 | 3 | 100Ohm | 12Ohm (Max) | 2V ~ 16V | ±2.7V ~ 8V | 175ns, 150ns | - | 2pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|

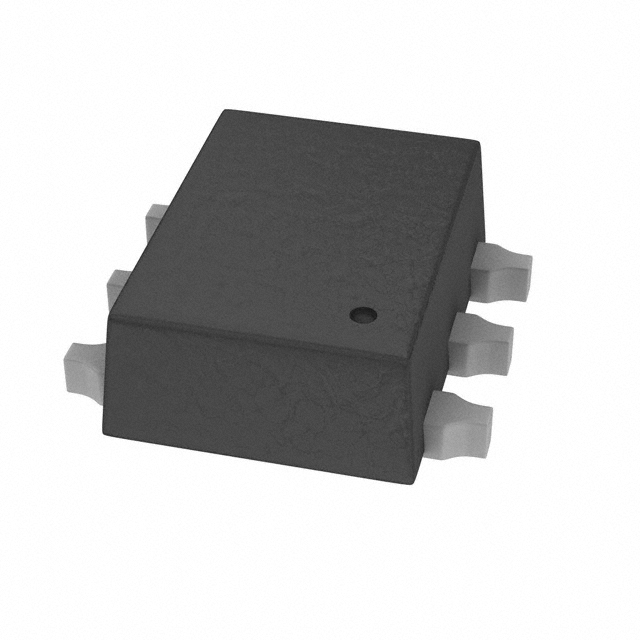

ADG859YRYZ-REEL7IC SWITCH SPDT SOT66 |
0 |
|
Datasheet |
- | Cut Tape (CT) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | SOT-66 |
