Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DG401DYIC SWITCH SPST-NOX2 45OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 2 | 45Ohm | - | 13V ~ 36V | ±7V ~ 22V | 150ns, 100ns | - | 60pC | 12pF, 12pF | 500pA | -94.8dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
TS5A3357DCURG4IC SWITCH SP3T X 1 15OHM 8VSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SP3T | 3:1 | 1 | 15Ohm | 100mOhm | 1.65V ~ 5.5V | - | 6.5ns, 3.7ns | 334MHz | 3.4pC | 4.5pF, 10.5pF | 100nA | -62dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|

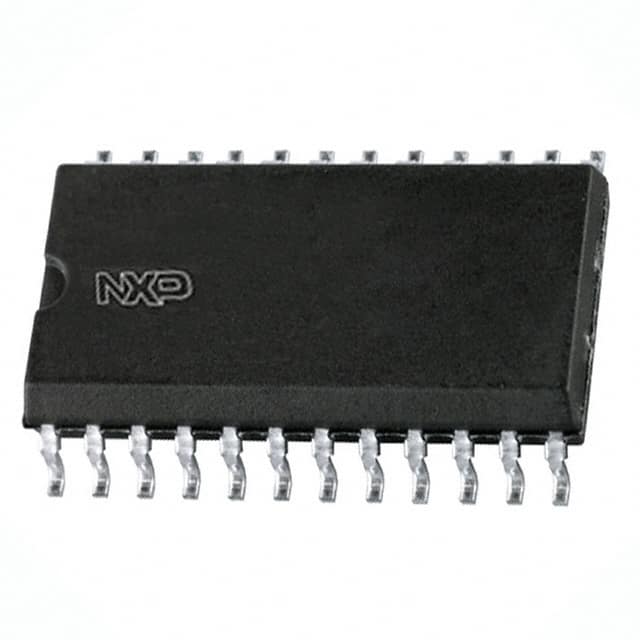

74HC4067D-Q100JIC MUX 16:1 120OHM 24SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 120Ohm | 6Ohm | 2V ~ 10V | - | 45ns, 45ns | 100MHz | - | 3.5pF | 100nA | - | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 24-SO |
|
TS5A23157DGSTG4IC SWITCH SPDT X 2 10OHM 10VSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 2 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 220MHz | 7pC | 5.5pF | 1µA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
CD4067BNSRIC MUX 16:1 240OHM 24SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SO |
|
|
CD4067BNSRE4IC MUX 16:1 240OHM 24SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SO |
|
CD4067BPWRE4IC MUX 16:1 240OHM 24TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
|
CD4067BNSRG4IC MUX 16:1 240OHM 24SO |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-SO |
|
|
CD4067BPWRG4IC MUX 16:1 240OHM 24TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 16:1 | 1 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | 14MHz | - | 0.2pF, 55pF | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 24-TSSOP |
|
SN74LV4051APWG4IC MUX 8:1 75OHM 16TSSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 35MHz | - | 0.5pF, 23.4pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TS5A2053DCTRIC SWITCH SPDT X 1 13.8OHM SM8 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 13.8Ohm | 800mOhm | 1.65V ~ 5.5V | - | 6.8ns, 4.1ns | 330MHz | 3pC | 6pF, 9.5pF | 100nA | -68dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SM8 |
|
|
TS5A2066DCURG4IC SWITCH SPST-NOX2 10OHM 8VSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SPST - NO | 1:1 | 2 | 10Ohm | 1Ohm | 1.65V ~ 5.5V | - | 5.8ns, 3.6ns | 300MHz | 1pC | 5.5pF, 5.5pF | 30nA | -68dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-VSSOP |
|
|
TS5A23157DGSRG4IC SWITCH SPDT X 2 10OHM 10VSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SPDT | 2:1 | 2 | 10Ohm | 150mOhm | 1.65V ~ 5.5V | - | 5.7ns, 3.8ns | 220MHz | 7pC | 5.5pF | 1µA | -66dB @ 10MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
DG4157DL-T1-E3IC SWITCH SPDT X 1 1.2OHM SC70-6 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 1.2Ohm | 120mOhm (Max) | 1.65V ~ 5.5V | - | 37ns, 23ns | 117MHz | 50pC | 20pF | 2nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|

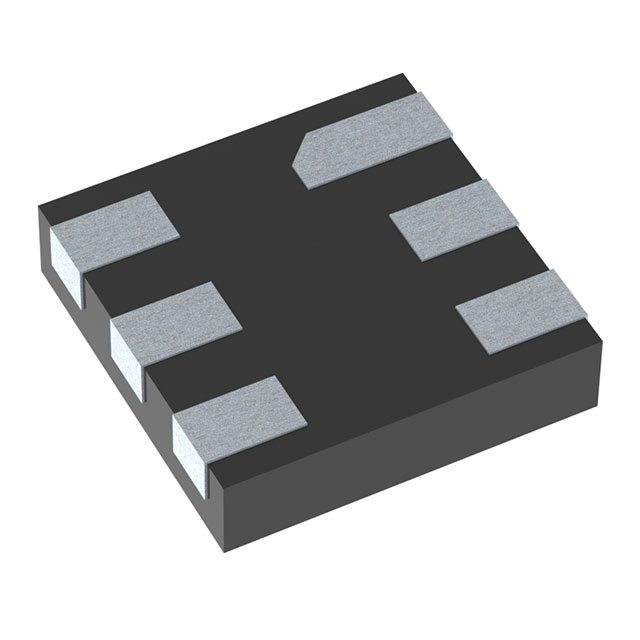

NLAS3157MX3TCGIC SWITCH SPDT X 1 9.9OHM 6ULLGA |
0 |
|
- |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 9.9Ohm | 300mOhm | 1.65V ~ 4.5V | - | 30ns, 25ns | 1GHz | - | 3.8pF | 100nA | -21dB @ 240MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 6-ULLGA (1x1) |
|
DG2037DS-T1IC SWITCH SPST-NOX2 5OHM SOT23-8 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 2 | 5Ohm | 200mOhm (Max) | 1.8V ~ 5.5V | - | 30ns, 22ns | - | 1pC | 15pF, 17pF | 1nA | -67dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
TS5A23160DGSTE4IC SWITCH SPDTX2 900MOHM 10VSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SPDT | 2:1 | 2 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 5.5ns, 10ns | 95MHz | 1pC | 18pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
|
TS5A23160DGSTG4IC SWITCH SPDTX2 900MOHM 10VSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Discontinued at Digi-Key | SPDT | 2:1 | 2 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 5.5ns, 10ns | 95MHz | 1pC | 18pF | 20nA | -64dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-VSSOP |
|
NJU4066BDIC SWITCH SPST-NOX4 240OHM 14DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 4 | 240Ohm | 5Ohm | 3V ~ 18V | - | - | - | - | 7.5pF | 100nA | -50dB @ 8MHz | -40°C ~ 85°C (TA) | - | - | Through Hole | 14-DIP |
|
|
CD74HC4051PWRG4IC MUX 8:1 130OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 130Ohm | 5Ohm | 2V ~ 6V | ±1V ~ 5V | - | 180MHz | - | 25pF | 400nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
