Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5962-88699013ALINEAR, 16-CHANNEL/DIFFERENTIAL, |
8 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
MAX4613CPEIC SW SPST-NO/NCX4 70OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO/NC | 1:1 | 4 | 70Ohm | 4Ohm (Max) | 4.5V ~ 40V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
|
MAX20327EWL+IC SWITCH DPDT X 1 350MOHM 9WLP |
0 |
|
- |
- | Strip | Active | DPDT | 2:1 | 1 | 350mOhm | 2mOhm | 1.6V ~ 5.5V | - | 300µs, 30µs | 100MHz | - | 4pF, 4pF | 1µA | -100dB @ 100kHz | -40°C ~ 85°C | - | - | Surface Mount | 9-WLP (1.61x1.61) |
|
LTC203CN#PBFMICROPOWER, LOW CHARGE INJECTION |
75 |
|
Datasheet |
- | Bulk | Active | SPST - NO/NC | 1:1 | 4 | 125Ohm | 6.25Ohm | 5V | ±15V | 400ns, 300ns | - | 8pC | 5pF, 12pF | 5nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
ISL8393IBZLOW-VOLTAGE, SINGLE AND DUAL SUP |
96 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
ADG408BCHIPSIC SWITCH SP8T X 1 100OHM DIE |
84 |
|
Datasheet |
- | Bulk | Obsolete | SP8T | 8:1 | 1 | 100Ohm | 15Ohm (Max) | 44V | ±22V | 150ns, 150ns | - | 20pC | 11pF, 40pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C | - | - | Surface Mount | Die |
|

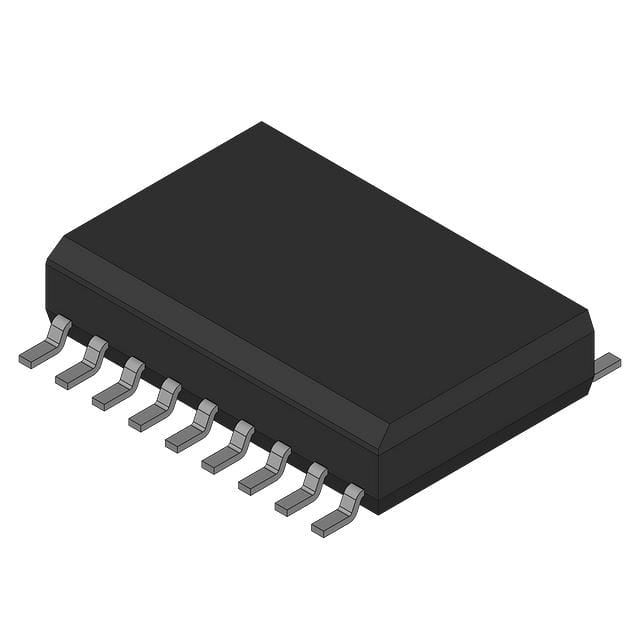

HI9P0518-9DIFFERENTIAL MULTIPLEXER, 1 FUNC |
100 |
|
Datasheet |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
5962-89710023AIC MUX DUAL 8:1 450OHM 28CLCC |
5 |
|
Datasheet |
ADG527A | Bulk | Active | - | 8:1 | 2 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C | - | - | Surface Mount | 28-CLCC |
|
DG4157EDN-T1-GE4IC SWITCH SPDT X 1 1.2OHM 6UDFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 1 | 1.2Ohm | 120mOhm (Max) | 1.65V ~ 5.5V | - | 32ns, 28ns | 152MHz | -5pC | - | 3nA | -41dB @ 10MHz | -40°C ~ 85°C | - | - | Surface Mount | 6-µDFN (1x1) |
|
ISL43120IHZ-TIC SWITCH SPST-NOX2 20OHM SOT23 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 2 | 20Ohm | 800mOhm | 2.7V ~ 12V | - | 35ns, 30ns | - | 5pC | 8pF, 8pF | 100pA | -105dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-8 |
|
|
TMUX4827YBHR+/-12-V BEYOND THE SUPPLY, 2:1 ( |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT - NO/NC | 2:1 | 2 | 160mOhm | 2mOhm | 1.8V ~ 5.5V | - | 175µs, - | 72MHz | 5pC | 70pF | 20nA (Typ) | -100dB @ 100kHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 9-DSBGA (1.6x1.6) |
|
TMUX1108PWRIC MUX 8:1 4OHM 16TSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 4Ohm | 130mOhm | 1.08V ~ 5.5V | - | 12ns, 6ns (Typ) | 90MHz | -1pC | 7pF, 60pF | 80pA | -65dB ~ -45dB @ 1MHz ~ 10MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
MAX4781ETE+TIC MUX 8:1 1OHM 16TQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 1Ohm | 300mOhm | 1.6V ~ 3.6V | - | 25ns, 15ns | - | -110pC | 38pF, 310pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
ALD4213SCLIC SW SPST-NO/NCX4 135OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO/NC | 1:1 | 4 | 135Ohm | 2.7Ohm | 3V ~ 12V | ±1.5V ~ 6V | 130ns, 130ns | - | 0.2pC | 3pF, 3pF | 100pA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
LTC1380IGN#TRPBFIC MUX 8:1 70OHM 16SSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 70Ohm | - | 2.7V | ±5V | 1.5µs, 1.2µs | - | 1pC | 3pF, 26pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SSOP |
|
|
MAX4666CSE+IC SW SPST-NO/NCX4 4OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Active | SPST - NO/NC | 1:1 | 4 | 4Ohm | 200mOhm | 4.5V ~ 36V | ±4.5V ~ 20V | 275ns, 175ns | - | 300pC | 34pF, 34pF | 500pA | -60dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
HI9P0548-9ZIC MUX 8:1 1.8KOHM 16SOIC |
3 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 1.8kOhm | 126Ohm | - | ±15V | 300ns, 300ns (Typ) | - | - | 10pF, 25pF | 30pA (Typ) | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADGM1121BCCZDC TO 16GHZ DPDT MEMS SWITCH |
0 |
|
Datasheet |
- | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
74HCT4066D,118IC SWITCH SPST-NO X 4 20OHM 14SO |
23 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 20Ohm (Typ) | 3Ohm | 4.5V ~ 5.5V | - | 44ns, 30ns | 200MHz | - | 3.5pF | 1µA | -60dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 14-SO |
|
TS5A23157QDGSRQ1IC SWITCH SPDT X 2 15OHM 10VSSOP |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 2 | 15Ohm | 150mOhm | 1.65V ~ 5.5V | - | 8.7ns, 6.8ns | 220MHz | 7pC | 5.5pF | 1µA | -66dB @ 10MHz | -40°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 10-VSSOP |
