Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

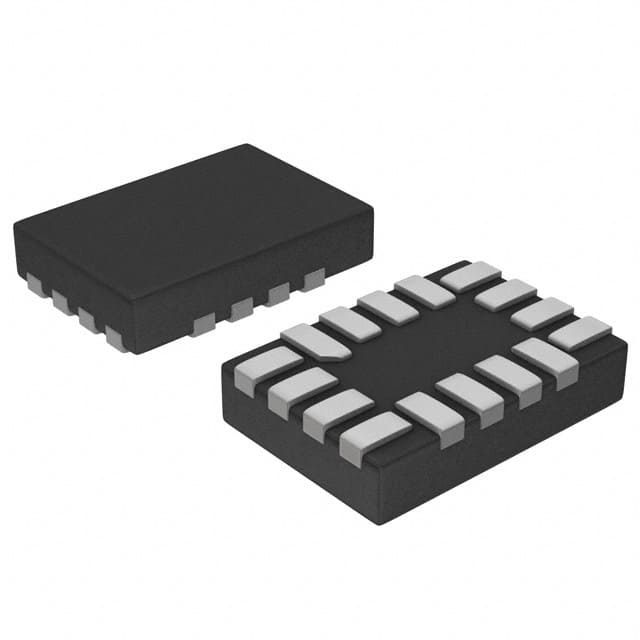

NLAS3799BMUR2GIC SWITCH DPDTX2 400MOHM 16UQFN |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DPDT | 2:2 | 2 | 400mOhm | 50mOhm (Max) | 1.65V ~ 4.5V | - | 50ns, 30ns | 19MHz | 51pC | 3pF | 500nA | -90dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-UQFN (1.8x2.6) |
|
ISL43145IVIC SW SPST-NO/NCX4 25OHM 16TSSOP |
1,815 |
|
Datasheet |
- | Bag | Obsolete | SPST - NO/NC | 1:1 | 4 | 25Ohm | 500mOhm | 2.7V ~ 12V | ±2.6V ~ 6V | 65ns, 50ns | - | 5pC (Max) | 10pF, 26pF | 100pA | -89dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
SN74LV4051APWIC MUX 8:1 75OHM 16TSSOP |
9,600 |
|
Datasheet |
- | Tube | Obsolete | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 35MHz | - | 0.5pF, 23.4pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
SN74LV4051APWTIC MUX 8:1 75OHM 16TSSOP |
9,383 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | - | 8:1 | 1 | 75Ohm | 1.3Ohm | 2V ~ 5.5V | - | 14ns, 14ns | 35MHz | - | 0.5pF, 23.4pF | 100nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
TS5A4624DCKTIC SWITCH SPDTX1 900MOHM SC70-6 |
1,188 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPDT | 2:1 | 1 | 900mOhm | 50mOhm | 1.65V ~ 5.5V | - | 22ns, 8ns | 90MHz | 15.5pC | 18pF | 20nA | -63dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | SC-70-6 |
|
ADG701LBRMIC SWITCH SPST-NO X 1 3OHM 8MSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG702LBRMIC SWITCH SPST-NC X 1 3OHM 8MSOP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
|
ADG702LBRM-REEL7IC SWITCH SPST-NC X 1 3OHM 8MSOP |
9,570 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NC | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 8-MSOP |
|
ISL84780IR-TIC SWITCH SPDTX4 600MOHM 16TQFN |
6,000 |
|
Datasheet |
- | Bulk | Obsolete | SPDT | 2:1 | 4 | 600mOhm | 130mOhm | 1.65V ~ 3.6V | - | 20ns, 14ns | - | -97pC | 62pF | 3nA | -98dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
|
ISL43L740IR-TIC SWITCH SP4TX2 750MOHM 16TQFN |
6,000 |
|
Datasheet |
- | Bulk | Obsolete | SP4T | 4:1 | 2 | 750mOhm | 120mOhm | 1.6V ~ 3.6V | - | 25ns, 23ns | - | -65pC | 62pF, 218pF | 4nA | -100dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
ADG791ABCPZ-500RL7IC MUX/DEMUX QUAD 2X1 24LFCSP |
5,233 |
|
Datasheet |
- | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | Surface Mount | 24-LFCSP-VQ (4x4) |
|
MAX4582ESEIC SWITCH SP4T X 2 80OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SP4T | 4:1 | 2 | 80Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 200ns, 100ns | - | 0.5pC | 4pF, 10pF | 1nA | -96dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
NLHV4052DTR2GIC SWITCH DP4TX2 280OHM 16TSSOP |
2,689 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | DP4T | 4:1 | 2 | 280Ohm | 10Ohm | 3V ~ 18V | - | - | 17MHz | - | - | 100nA | - | -55°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
NLV74HC4052ADR2GIC SWITCH SP4T X 2 100OHM 16SOIC |
2,484 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SP4T | 4:1 | 2 | 100Ohm | 10Ohm | 2V ~ 6V | ±2V ~ 6V | - | 95MHz | - | 80pF | 100nA | -60dB @ 1MHz | -55°C ~ 125°C (TA) | Automotive | AEC-Q100 | Surface Mount | 16-SOIC |
|
|
MAX4521CSEIC SW SPST-NCX4 100OHM 16SOIC |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4521CPEIC SWITCH SPST-NCX4 100OHM 16DIP |
0 |
|
Datasheet |
- | Tube | Obsolete | SPST - NC | 1:1 | 4 | 100Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 80ns, 30ns | - | 1pC | 2pF, 2pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Through Hole | 16-PDIP |
|
SN74HC4066DTIC SWITCH SPST-NOX4 30OHM 14SOIC |
1,314 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 30Ohm (Typ) | - | 2V ~ 6V | - | 31ns, 34ns | 30MHz | - | 0.5pF, 9pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-SOIC |
|
SN74HC4066PWIC SW SPST-NOX4 30OHM 14TSSOP |
497 |
|
Datasheet |
- | Bulk | Obsolete | SPST - NO | 1:1 | 4 | 30Ohm (Typ) | - | 2V ~ 6V | - | 31ns, 34ns | 30MHz | - | 0.5pF, 9pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
MAX4646EUK-TIC SW SPST-NCX1 2.5OHM SOT23-5 |
0 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NC | 1:1 | 1 | 2.5Ohm | 100mOhm | 1.8V ~ 5V | - | 15ns, 10ns | - | 5pC | 17pF, 17pF | 250pA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | SOT-23-5 |
|
|
SN74HC4066PWTIC SW SPST-NOX4 30OHM 14TSSOP |
2,645 |
|
Datasheet |
- | Tape & Reel (TR) | Obsolete | SPST - NO | 1:1 | 4 | 30Ohm (Typ) | - | 2V ~ 6V | - | 31ns, 34ns | 30MHz | - | 0.5pF, 9pF | 100nA | -45dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
