Analog Switches, Multiplexers, Demultiplexers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Switch Circuit | Multiplexer/Demultiplexer Circuit | Number of Circuits | On-State Resistance (Max) | Channel-to-Channel Matching (ΔRon) | Voltage - Supply, Single (V+) | Voltage - Supply, Dual (V±) | Switch Time (Ton, Toff) (Max) | -3db Bandwidth | Charge Injection | Channel Capacitance (CS(off), CD(off)) | Current - Leakage (IS(off)) (Max) | Crosstalk | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG5401FBCPZ-RL7IC SWITCH SPST-NCX1 6OHM 10LFCSP |
5,251 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 1 | 6Ohm (Typ) | - | 8V ~ 44V | ±5V ~ 22V | 10.2µs, 360ns | 395MHz | -230pC | 9pF, 11pF | 100pA (Typ) | - | -40°C ~ 125°C | - | - | Surface Mount | 10-LFCSP (3x2) |
|
MAX4752EUD+IC SW SPST-NOX4 900MOHM 14TSSOP |
260 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 900mOhm | 30mOhm | 1.6V ~ 3.6V | - | 30ns, 25ns | - | 21pC | 31pF, 30pF | 2.5nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 14-TSSOP |
|
ADG728WBRUZ-REEL7IC MUX 8:1 4.5OHM 16TSSOP |
549 |
|
Datasheet |
- | Tape & Reel (TR) | Active | - | 8:1 | 1 | 4.5Ohm | - | 2.7V ~ 5.5V | - | 95ns, 85ns (Typ) | 65MHz | 3pC | 13pF, 85pF | 100pA | -75dB @ 1MHz | -40°C ~ 85°C (TA) | Automotive | - | Surface Mount | 16-TSSOP |
|
ADG201AKRZ-REELIC SWITCH SPST-NCX4 90OHM 16SOIC |
2,444 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 90Ohm | 4.5Ohm | 10V ~ 15V | ±10V ~ 15V | 300ns, 250ns | - | 20pC | 5pF | 2nA | -80dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
MAX4551CEE+IC SW SPST-NCX4 120OHM 16QSOP |
1,095 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 120Ohm | 1Ohm | 2V ~ 12V | ±2V ~ 6V | 110ns, 90ns | - | 2pC | 3.5pF, 3pF | 1nA | -90dB @ 100kHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX4525EUB+IC SWITCH DPDT X 1 150OHM 10UMAX |
48 |
|
Datasheet |
- | Tube | Active | DPDT | 2:1 | 1 | 150Ohm | 2Ohm | 2V ~ 12V | - | 150ns, 120ns | - | 0.8pC | 4pF, 6pF | 1nA | -74dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 10-uMAX/uSOP |
|
MAX4782ETE+IC SWITCH SP4T X 2 1OHM 16TQFN |
200 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 2 | 1Ohm | 300mOhm | 1.6V ~ 3.6V | - | 25ns, 15ns | - | -110pC | 38pF, 158pF | 2nA | -80dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (3x3) |
|
MAX4674ETE+IC SWITCH SPDT X 4 4OHM 16TQFN |
111 |
|
Datasheet |
- | Tube | Active | SPDT | 2:1 | 4 | 4Ohm | 150mOhm | 1.8V ~ 5.5V | - | 18ns, 6ns | - | 10pC | 10pF, 20pF | 500pA | -114dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (4x4) |
|
DG528EWN+IC MUX 8:1 450OHM 18SOIC |
0 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 450Ohm | 27Ohm | 5V ~ 30V | ±4.5V ~ 20V | 1.5µs, 1.5µs | - | 4pC | 5pF, 25pF | 5nA | - | -40°C ~ 85°C (TA) | - | - | Surface Mount | 18-SOIC |
|
MAX323CUA+IC SWITCH SPST-NOX2 60OHM 8UMAX |
207 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 2 | 60Ohm | 800mOhm | 2.7V ~ 16V | - | 150ns, 100ns | - | 1pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
MAX325CUA+IC SW SPST-NO/NCX2 60OHM 8UMAX |
80 |
|
Datasheet |
- | Tube | Active | SPST - NO/NC | 1:1 | 2 | 60Ohm | 800mOhm | 2.7V ~ 16V | - | 150ns, 100ns | - | 1pC | 9pF, 9pF | 100pA | -85dB @ 1MHz | 0°C ~ 70°C (TA) | - | - | Surface Mount | 8-uMAX/uSOP |
|
|
ADG1233YRUZ-REEL7IC SWITCH SPDTX3 190OHM 16TSSOP |
1,557 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPDT | 2:1 | 3 | 190Ohm | 3.5Ohm | 5V ~ 16.5V | ±5V ~ 16.5V | 140ns, 45ns | 900MHz | 0.5pC | 1.7pF, 1.8pF | 100pA | -85dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 16-TSSOP |
|
|
ADG411BRZ-REELIC SWITCH SPST-NCX4 35OHM 16SOIC |
2,481 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NC | 1:1 | 4 | 35Ohm | - | 12V | ±15V | 175ns, 145ns | - | 5pC | 9pF, 9pF | 250pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
MAX4066AEEE+IC SWITCH SPST-NOX4 45OHM 16QSOP |
224 |
|
Datasheet |
- | Tube | Active | SPST - NO | 1:1 | 4 | 45Ohm | 500mOhm | 2V ~ 16V | - | 100ns, 75ns | 100MHz | 1pC | 9pF, 9pF | 100pA | -86dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-QSOP |
|
MAX338ETE+IC MUX 8:1 400OHM 16TQFN |
0 |
|
Datasheet |
- | Tube | Active | - | 8:1 | 1 | 400Ohm | 4Ohm | 4.5V ~ 30V | ±4.5V ~ 20V | 500ns, 500ns | - | 1.5pC | 3pF, 11pF | 20pA | -92dB @ 100kHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-TQFN (5x5) |
|

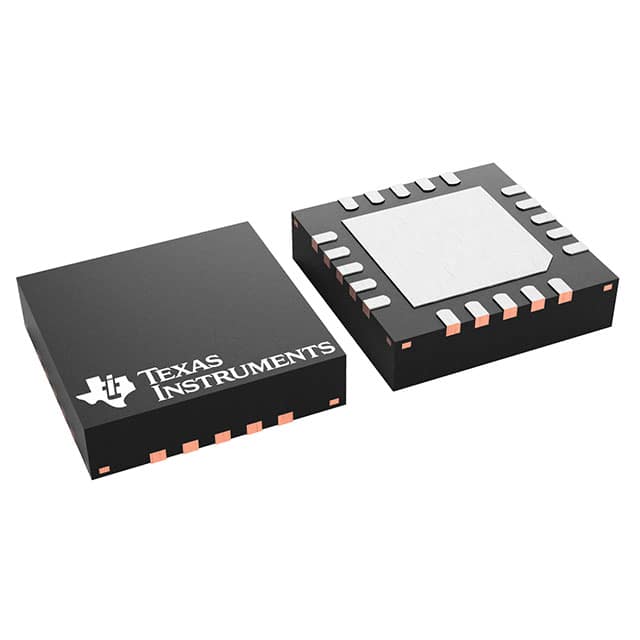

TMUX7348FRTJRIC SWITCH SP8T X 1 250OHM 20QFN |
8,728 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SP8T | 8:1 | 1 | 250Ohm | 2.5Ohm | 8V ~ 44V | ±5V ~ 22V | 300ns, 400ns | 150MHz | -17pC | 3.5pF, 28pF | 1nA | -95dB @ 1MHz | -40°C ~ 125°C (TA) | - | - | Surface Mount | 20-QFN (4x4) |
|
ADG5412WBCPZ-REEL7IC SW SPST-NOX4 15OHM 16LFCSP |
1,340 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 15Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 240ns, 170ns | 160MHz | 310pC | 17pF, 17pF | 10nA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 16-LFCSP-WQ (4x4) |
|
|
ADG5412WBRUZ-REEL7IC SW SPST-NOX4 15OHM 16TSSOP |
734 |
|
Datasheet |
- | Tape & Reel (TR) | Active | SPST - NO | 1:1 | 4 | 15Ohm | 350mOhm | 9V ~ 40V | ±9V ~ 22V | 240ns, 170ns | 160MHz | 310pC | 17pF, 17pF | 10nA | -70dB @ 1MHz | -40°C ~ 125°C (TA) | Automotive | - | Surface Mount | 16-TSSOP |
|
MAX364ESE+IC SWITCH SPST-NCX4 85OHM 16SOIC |
139 |
|
Datasheet |
- | Tube | Active | SPST - NC | 1:1 | 4 | 85Ohm | 2Ohm (Max) | 10V ~ 30V | ±4.5V ~ 20V | 250ns, 120ns | - | 5pC | 4pF, 4pF | 500pA | -100dB @ 1MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
|
|
ADV3222ARZIC SWITCH SP4T X 1 16SOIC |
144 |
|
Datasheet |
- | Tube | Active | SP4T | 4:1 | 1 | - | - | - | ±4.5V ~ 5.5V | - | 800MHz | - | 1.8pF | 2µA (Typ) | -58dB @ 100MHz | -40°C ~ 85°C (TA) | - | - | Surface Mount | 16-SOIC |
