Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
IKWH70N65WR6XKSA1IGBT TRENCH FS 650V 122A TO247-3 |
6,573 |
|
Datasheet |
TrenchStop™ 5 WR6 | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 122 A | 210 A | 1.85V @ 15V, 70A | 290 W | 2.2mJ (on), 1.07mJ (off) | Standard | 269 nC | 42ns/378ns | 400V, 70A, 15Ohm, 15V | - | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO247-3-32 |
|
IXYP20N120C3IGBT 1200V 40A 278W TO-220 |
6,064 |
|
Datasheet |
GenX3™, XPT™ | TO-220-3 | Tube | Active | - | 1200 V | 40 A | 96 A | 3.4V @ 15V, 20A | 278 W | 1.3mJ (on), 500µJ (off) | Standard | 53 nC | 20ns/90ns | 600V, 20A, 10Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-220-3 |
|
APT27GA90BD15IGBT PT 900V 48A TO247 |
8,599 |
|
Datasheet |
- | TO-247-3 | Tube | Active | PT | 900 V | 48 A | 79 A | 3.1V @ 15V, 14A | 223 W | 413µJ (on), 287µJ (off) | Standard | 62 nC | 9ns/98ns | 600V, 14A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
NGTB35N65FL2WGIGBT TRENCH FS 650V 70A TO247-3 |
14 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 70 A | 120 A | 2V @ 15V, 35A | 300 W | 840µJ (on), 280µJ (off) | Standard | 125 nC | 72ns/132ns | 400V, 35A, 10Ohm, 15V | 68 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
|
NGTB15N120FL2WGIGBT 1200V 15A SOLAR/UPS TO247 |
9 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 1200 V | 30 A | 60 A | 2.4V @ 15V, 15A | 294 W | 1.2mJ (on), 370µJ (off) | Standard | 109 nC | 64ns/132ns | 600V, 15A, 10Ohm, 15V | 110 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
|
STGWA75M65DF2TRENCH GATE FIELD-STOP IGBT M SE |
6,807 |
|
Datasheet |
M | TO-247-3 | Tube | Active | Trench Field Stop | 650 V | 120 A | 225 A | 2.1V @ 15V, 75A | 468 W | 690µJ (on), 2.54mJ (off) | Standard | 225 nC | 47ns/125ns | 400V, 75A, 3.3Ohm, 15V | 165 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
|
NGTB25N120FL3WGIGBT TRENCH FS 1200V 100A TO247 |
22 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench Field Stop | 1200 V | 100 A | 100 A | 2.4V @ 15V, 25A | 349 W | 1mJ (on), 700µJ (off) | Standard | 136 nC | 15ns/109ns | 600V, 25A, 10Ohm, 15V | 114 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|
IXYH30N120C3IGBT 1200V 75A 500W TO247 |
6,237 |
|
Datasheet |
GenX3™, XPT™ | TO-247-3 | Tube | Active | - | 1200 V | 75 A | 145 A | 3.3V @ 15V, 30A | 500 W | 2.6mJ (on), 1.1mJ (off) | Standard | 69 nC | 19ns/130ns | 600V, 30A, 10Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXYH) |
|
AIGW50N65F5XKSA1IGBT 650V TO247-3 |
25 |
|
Datasheet |
Trenchstop™ 5 | TO-247-3 | Tube | Active | Trench | 650 V | - | 150 A | 2.1V @ 15V, 50A | 270 W | 490µJ (on), 140µJ (off) | Standard | 1018 nC | 21ns/156ns | 400V, 25A, 12Ohm, 15V | - | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Through Hole | PG-TO247-3-41 |
|
IXYH120N65A5IGBT 650V 120A X5 XPT TO-247 |
14 |
|
Datasheet |
XPT™, GenX5™ | TO-247-3 | Tube | Active | PT | 650 V | 290 A | 790 A | 1.35V @ 15V, 75A | 830 W | 1.25mJ (on), 3.2mJ (off) | Standard | 314 nC | 45ns/370ns | 400V, 60A, 3Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 (IXTH) |
|
|
IXXH60N65B4H1IGBT 650V 116A 380W TO247AD |
8,763 |
|
Datasheet |
GenX4™, XPT™ | TO-247-3 | Tube | Active | PT | 650 V | 116 A | 230 A | 2V @ 15V, 60A | 380 W | 3.13mJ (on), 1.15mJ (off) | Standard | 95 nC | 37ns/145ns | 400V, 60A, 5Ohm, 15V | 150 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXXH) |
|
APT100GN60LDQ4GIGBT TRENCH FS 600V 229A TO264 |
7,105 |
|
Datasheet |
- | TO-264-3, TO-264AA | Tube | Active | Trench Field Stop | 600 V | 229 A | 300 A | 1.85V @ 15V, 100A | 625 W | 4.75mJ (on), 2.675mJ (off) | Standard | 600 nC | 31ns/310ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-264 [L] |
|
|
ITF48IF1200HRIGBT TRENCH 1200V 72A ISO247 |
7,238 |
|
Datasheet |
- | TO-247-3 | Tube | Active | Trench | 1200 V | 72 A | - | 2.4V @ 15V, 40A | 390 W | 3mJ (on), 2.4mJ (off) | Standard | 175 nC | 26ns/350ns | 600V, 40A, 12Ohm, 15V | - | - | - | - | Through Hole | ISO247 |
|
|
IXXX200N60B3IGBT |
4,876 |
|
Datasheet |
XPT™, GenX3™ | TO-247-3 Variant | Tube | Active | - | 600 V | 380 A | 900 A | 1.7V @ 15V, 100A | 1630 W | 2.85mJ (on), 4.4mJ (off) | Standard | 315 nC | 48ns/160ns | 360V, 100A, 1Ohm, 15V | 100 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
|
APT50GF120LRGIGBT NPT 1200V 135A TO264 |
8,665 |
|
Datasheet |
- | TO-264-3, TO-264AA | Tube | Active | NPT | 1200 V | 135 A | 150 A | 3V @ 15V, 50A | 781 W | 3.6mJ (on), 2.64mJ (off) | Standard | 340 nC | 25ns/260ns | 800V, 50A, 1Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-264 [L] |
|

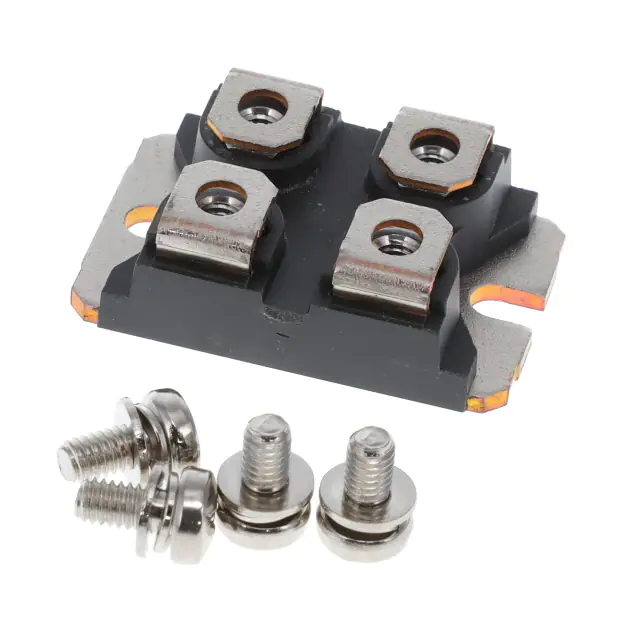

IXA70R1200NADISC IGBT XPT-GENX3 SOT-227B(MIN |
2,699 |
|
Datasheet |
XPT™ | SOT-227-4, miniBLOC | Tube | Active | PT | 1200 V | 100 A | - | 2.1V @ 15V, 50A | 350 W | 4.5mJ (on), 5.5mJ (off) | Standard | 190 nC | 70ns/250ns | 600V, 50A, 15Ohm, 15V | - | - | - | - | Chassis Mount | SOT-227B |
.jpg)
|
IXXX200N65B4IGBT PT 650V 370A PLUS247-3 |
9,502 |
|
Datasheet |
GenX4™, XPT™ | TO-247-3 Variant | Tube | Active | PT | 650 V | 370 A | 1000 A | 1.7V @ 15V, 160A | 1150 W | 4.4mJ (on), 2.2mJ (off) | Standard | 553 nC | 62ns/245ns | 400V, 100A, 1Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
IXYN110N120A4IGBT PT 1200V 275A SOT227B |
3 |
|
Datasheet |
XPT™, GenX4™ | SOT-227-4, miniBLOC | Tube | Active | PT | 1200 V | 275 A | 950 A | 1.8V @ 15V, 110A | 830 W | 2.5mJ (on), 8.4mJ (off) | Standard | 305 nC | 42ns/550ns | 600V, 50A, 2Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Chassis Mount | SOT-227B |
|
|
IXBX25N250IGBT 2500V 55A PLUS247-3 |
5,410 |
|
Datasheet |
BIMOSFET™ | TO-247-3 Variant | Tube | Active | - | 2500 V | 55 A | 180 A | 3.3V @ 15V, 25A | 300 W | - | Standard | 103 nC | - | - | 1.6 µs | -55°C ~ 150°C (TJ) | - | - | Through Hole | PLUS247™-3 |
|
IKA10N60TXKSA1IGBT 600V 11.7A 30W TO220-3 |
4,545 |
|
Datasheet |
TrenchStop® | TO-220-3 Full Pack | Tube | Active | Trench Field Stop | 600 V | 11.7 A | 30 A | 2.05V @ 15V, 10A | 30 W | 430µJ | Standard | 62 nC | 12ns/215ns | 400V, 10A, 23Ohm, 15V | 115 ns | -40°C ~ 175°C (TJ) | - | - | Through Hole | PG-TO220-3-31 |
Single IGBTs Electronic Components
Explore Single IGBTs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
