Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
XGD8290TIIGBT N-CH 20A D2PAK |
9,661 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XGB8206ATIIGBT N-CH 20A 350V D2PAK |
7,379 |
|
- |
* | - | Tape & Reel (TR) | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
XGS8206AUIIGBT N-CH 20A D2PAK |
5,913 |
|
- |
* | - | Tube | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
IGW50N65HSIGBT WITHOUT ANTI-PARALLEL DIODE |
5,428 |
|
Datasheet |
* | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IKW03N120HIGBT WITH ANTI-PARALLEL DIODE |
7,402 |
|
Datasheet |
- | TO-247-3 | Bulk | Active | - | 1200 V | 9.6 A | 9.9 A | 2.8V @ 15V, 3A | 62.5 W | 140µJ (on), 150µJ (off) | Standard | 22 nC | 9.2ns/281ns | 800V, 3A, 82Ohm, 15V | 42 ns | -40°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO247-3-21 |
|
ISL9V2040D3STVIGBT, 430V, 10A, 1.95V, 200MJ, D |
2,725 |
|
Datasheet |
EcoSPARK® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | - | 430 V | 10 A | - | 1.9V @ 4V, 6A | 130 W | - | Logic | 12 nC | 610ns/3.64µs | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | TO-252AA |
|
APT36GA60SD15IGBT PT 600V 65A D3PAK |
5,421 |
|
Datasheet |
POWER MOS 8® | TO-268-3, D3PAK (2 Leads + Tab), TO-268AA | Tube | Obsolete | PT | 600 V | 65 A | 109 A | 2.5V @ 15V, 20A | 290 W | 307µJ (on), 254µJ (off) | Standard | 102 nC | 16ns/122ns | 400V, 20A, 10Ohm, 15V | 19 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | D3PAK |
|
FGD2736G3-F085VIGBT ECOSPARK1 IGN TO252 |
8,930 |
|
- |
EcoSPARK® | TO-252-3, DPAK (2 Leads + Tab), SC-63 | Tape & Reel (TR) | Obsolete | - | 360 V | 37.5 A | - | 1.65V @ 4.5V, 10A | 150 W | - | Standard | 18 nC | 900ns/4.4µs | 300V, 6.5A, 470Ohm, 5V | 3 µs | -40°C ~ 175°C (TJ) | Automotive | AEC-Q101 | Surface Mount | DPAK |
|
|
FGAF30S65AQIGBT 650V 30A TO-3PF |
2,389 |
|
- |
- | TO-3P-3 Full Pack | Tube | Obsolete | Trench Field Stop | 650 V | 60 A | 90 A | 2.1V @ 15V, 30A | 83 W | 515µJ (on), 140µJ (off) | Standard | 58 nC | 18ns/92ns | 400V, 15A, 13Ohm, 15V | 267 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-3PF-3 |
|
IRG4BC40UPBFIGBT 600V 40A TO220AB |
7,153 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | - | 600 V | 40 A | 160 A | 2.1V @ 15V, 20A | 160 W | 320µJ (on), 350µJ (off) | Standard | 150 nC | 34ns/110ns | 480V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
|
IRG4BC30WPBF600V WARP 60-150 KHZ DISCRETE IG |
2,600 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | - | 600 V | 23 A | 92 A | 2.7V @ 15V, 12A | 100 W | 130µJ (on), 130µJ (off) | Standard | 51 nC | 25ns/99ns | 480V, 12A, 23Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|

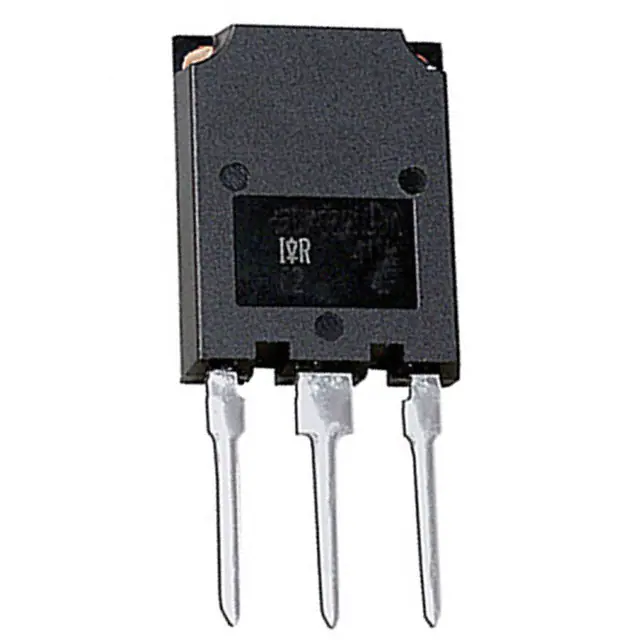

IRG4PSC71KPBFIGBT, 85A, 600V, N-CHANNEL |
5,543 |
|
Datasheet |
- | TO-274AA | Bulk | Active | - | 600 V | 85 A | 200 A | 2.3V @ 15V, 60A | 350 W | 790µJ (on), 1.98mJ (off) | Standard | 340 nC | 34ns/54ns | 480V, 60A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | SUPER-247™ (TO-274AA) |
|
IRG7PH35UD1-EPIGBT W/ULTRA-LOW VF DIODE FOR IN |
9,914 |
|
Datasheet |
- | TO-247-3 | Bulk | Active | Trench | 1200 V | 50 A | 150 A | 2.2V @ 15V, 20A | 179 W | 620µJ (off) | Standard | 130 nC | -/160ns | 600V, 20A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IRG4BC30UPBFULTRAFAST SPEED IGBT |
6,941 |
|
Datasheet |
- | TO-220-3 | Bulk | Active | - | 600 V | 23 A | 92 A | 2.1V @ 15V, 12A | 100 W | 160µJ (on), 200µJ (off) | Standard | 50 nC | 17ns/78ns | 480V, 12A, 23Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-220AB |
|
IXGA30N60C3IGBT 600V 60A 220W TO-263AA |
2,964 |
|
Datasheet |
GenX3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Obsolete | PT | 600 V | 60 A | 150 A | 3V @ 15V, 20A | 220 W | 270µJ (on), 90µJ (off) | Standard | 38 nC | 16ns/42ns | 300V, 20A, 5Ohm, 15V | 26 ns | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263 (D2PAK) |
|
|
PCG60N60SFFIGBT PCG60N60SFF |
8,000 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCG20N60A4WIGBT PCG20N60A4W |
5,105 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
PCFG40T65SQFIGBT FIELD STOP 650V WAFER |
7,525 |
|
Datasheet |
- | Die | Tape & Reel (TR) | Obsolete | Field Stop | 650 V | - | 160 A | 2.1V @ 15V, 40A | - | - | Standard | 80 nC | - | - | - | -40°C ~ 175°C (TJ) | - | - | Surface Mount | Wafer |
|
|
AUXTMGPS4070D1IGBT TRENCH |
4,312 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
AUXTMGPS4070D2IGBT TRENCH |
4,987 |
|
- |
- | - | Bulk | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
Single IGBTs Electronic Components
Explore Single IGBTs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
