Single IGBTs
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Package/Case | Packaging | Product Status | IGBT Type | Voltage - Collector Emitter Breakdown (Max) | Current - Collector (Ic) (Max) | Current - Collector Pulsed (Icm) | Vce(on) (Max) @ Vge, Ic | Power - Max | Switching Energy | Input Type | Gate Charge | Td (on/off) @ 25°C | Test Condition | Reverse Recovery Time (trr) | Operating Temperature | Grade | Qualification | Mounting Type | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NGTB20N120IHTGIGBT 1200V 20A TO247 |
5,958 |
|
- |
- | - | Tube | Not For New Designs | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXYA30N120A3HVIGBT DISCRETE TO-263HV |
5,251 |
|
- |
- | - | Tube | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
IXYA20N120C4HV-TRLDISC. IGBT XPT-GENX4 TO-263HV |
6,382 |
|
- |
- | - | Tape & Reel (TR) | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
APT11GP60BDQBGIGBT 600V 41A 187W TO247 |
6,158 |
|
Datasheet |
POWER MOS 7® | TO-247-3 | Tube | Obsolete | PT | 600 V | 41 A | 45 A | 2.7V @ 15V, 11A | 187 W | 46µJ (on), 90µJ (off) | Standard | 40 nC | 7ns/29ns | 400V, 11A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247-3 |
.jpg)
|
IXXH50N60C3IGBT 600V 100A 600W TO247AD |
9,644 |
|
Datasheet |
GenX3™, XPT™ | TO-247-3 | Tube | Active | PT | 600 V | 100 A | 200 A | 2.3V @ 15V, 36A | 600 W | 720µJ (on), 330µJ (off) | Standard | 64 nC | 24ns/62ns | 360V, 36A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247AD (IXXH) |
|
STGWA80H65DFBIGBT BIPO 650V 80A TO247-3 |
3,745 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | Trench Field Stop | 650 V | 120 A | 240 A | 2V @ 15V, 80A | 469 W | 2.1mJ (on), 1.5mJ (off) | Standard | 414 nC | 84ns/280ns | 400V, 80A, 10Ohm, 15V | 85 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
IXGA20N120B3IGBT 1200V 36A 180W TO263 |
3,793 |
|
Datasheet |
GenX3™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | PT | 1200 V | 36 A | 80 A | 3.1V @ 15V, 16A | 180 W | 920µJ (on), 560µJ (off) | Standard | 51 nC | 16ns/150ns | 600V, 16A, 15Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Surface Mount | TO-263AA |
|
|
IXGH15N120CIGBT 1200V 30A 150W TO247AD |
5,730 |
|
- |
Lightspeed™ | TO-247-3 | Tube | Obsolete | - | 1200 V | 30 A | 60 A | 3.8V @ 15V, 15A | 150 W | 1.05mJ (off) | Standard | 69 nC | 25ns/150ns | 960V, 15A, 10Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
|
IXGH56N60A3IGBT 600V 150A 330W TO247 |
7,274 |
|
Datasheet |
GenX3™ | TO-247-3 | Tube | Obsolete | PT | 600 V | 150 A | 370 A | 1.35V @ 15V, 44A | 330 W | 1mJ (on), 3.75mJ (off) | Standard | 140 nC | 26ns/310ns | 480V, 44A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|
AOK40B120M1IGBT 1200V 40A TO-247 |
9,181 |
|
Datasheet |
Alpha IGBT™ | TO-247-3 | Tube | Obsolete | - | 1200 V | 80 A | 120 A | 2.45V @ 15V, 40A | 600 W | 3.87mJ (on), 1.25mJ (off) | Standard | 140 nC | 90ns/226ns | 600V, 40A, 7.5Ohm, 15V | 340 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
|
IXGH72N60B3IGBT 600V 75A 540W TO247 |
6,080 |
|
Datasheet |
GenX3™ | TO-247-3 | Tube | Obsolete | PT | 600 V | 75 A | 400 A | 1.8V @ 15V, 60A | 540 W | 1.38mJ (on), 1.05mJ (off) | Standard | 230 nC | 31ns/150ns | 480V, 50A, 3Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
|

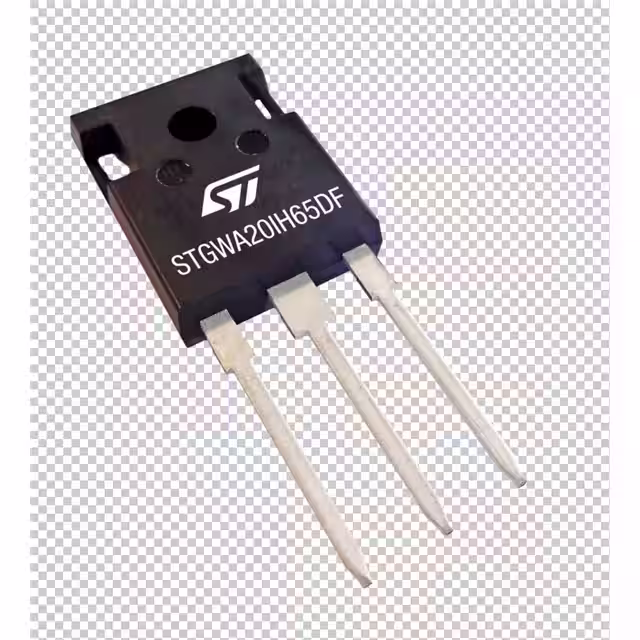

STGWA20IH65DFTRENCH GATE FIELD-STOP 650 V, 20 |
24 |
|
Datasheet |
IH | TO-247-3 | Tube | Last Time Buy | Trench Field Stop | 650 V | 40 A | 60 A | 2.05V @ 15V, 20A | 159 W | 110µJ (off) | Standard | 56 nC | -/120ns | 400V, 20A, 22Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 Long Leads |
|
FGA50N60LSIGBT 600V 100A 240W TO3P |
8,861 |
|
Datasheet |
- | TO-3P-3, SC-65-3 | Tube | Obsolete | - | 600 V | 100 A | 150 A | 1.8V @ 15V, 50A | 240 W | 1.1mJ (on), 3.2mJ (off) | Standard | 167 nC | 54ns/146ns | 300V, 50A, 5.9Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-3P |
|
|
APT15GP60BGIGBT PT 600V 56A TO247 |
8,065 |
|
Datasheet |
POWER MOS 7® | TO-247-3 | Tube | Active | PT | 600 V | 56 A | 65 A | 2.7V @ 15V, 15A | 250 W | 130µJ (on), 121µJ (off) | Standard | 55 nC | 8ns/29ns | 400V, 15A, 5Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247 [B] |
|
RJP60V0DPM-00#T1IGBT TRENCH 600V 45A TO3PFM |
8 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Active | Trench | 600 V | 45 A | - | 2.1V @ 15V, 22A | 40 W | - | Standard | 75 nC | 45ns/100ns | 300V, 22A, 5Ohm, 15V | - | 150°C (TJ) | - | - | Through Hole | TO-3PFM |
|
IRG4IBC10UDIGBT 600V 6.8A 25W TO220FP |
3,743 |
|
Datasheet |
- | TO-220-3 Full Pack | Tube | Obsolete | - | 600 V | 6.8 A | 27 A | 2.6V @ 15V, 5A | 25 W | 140µJ (on), 120µJ (off) | Standard | 15 nC | 40ns/87ns | 480V, 5A, 100Ohm, 15V | 28 ns | -55°C ~ 150°C (TJ) | - | - | Through Hole | PG-TO220-FP |
|
|
IXYA50N65C3IGBT 650V 130A 600W TO263 |
8,520 |
|
Datasheet |
GenX3™, XPT™ | TO-263-3, D2PAK (2 Leads + Tab), TO-263AB | Tube | Active | PT | 650 V | 130 A | 250 A | 2.1V @ 15V, 36A | 600 W | 1.3mJ (on), 370µJ (off) | Standard | 80 nC | 22ns/80ns | 400V, 36A, 5Ohm, 15V | - | -55°C ~ 175°C (TJ) | - | - | Surface Mount | TO-263AA |
|
IRGP4065DPBFIGBT 300V 70A 160W TO247AC |
5,373 |
|
Datasheet |
- | TO-247-3 | Bag | Obsolete | Trench | 300 V | 70 A | - | 2.1V @ 15V, 70A | 160 W | - | Standard | 62 nC | 30ns/170ns | 180V, 25A, 10Ohm, 15V | - | -40°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AC |
|
|
AOK40B120N1IGBT 1200V 40A TO-247 |
7,303 |
|
Datasheet |
Alpha IGBT™ | TO-247-3 | Tube | Active | - | 1200 V | 80 A | 160 A | 2.5V @ 15V, 40A | 600 W | 3.4mJ (on), 1.4mJ (off) | Standard | 100 nC | 57ns/146ns | 600V, 40A, 7.5Ohm, 15V | 300 ns | -55°C ~ 175°C (TJ) | - | - | Through Hole | TO-247 |
|
IXDH20N120IGBT 1200V 38A 200W TO247AD |
2,395 |
|
Datasheet |
- | TO-247-3 | Tube | Obsolete | NPT | 1200 V | 38 A | 50 A | 3V @ 15V, 20A | 200 W | 3.1mJ (on), 2.4mJ (off) | Standard | 70 nC | - | 600V, 20A, 82Ohm, 15V | - | -55°C ~ 150°C (TJ) | - | - | Through Hole | TO-247AD |
Single IGBTs Electronic Components
Explore Single IGBTs electronic components, related subcategories, product specifications, datasheets and sourcing options. We support original component procurement, BOM sourcing and RFQ services for engineers, distributors and global buyers.
