Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0283100.TFUSE AUTO 100A 32VDC AUTO LINK |
3,393 |
|
Datasheet |
PAL™ 283 | Box | Active | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | - | - | - | - | Blue | 0.898" L x 0.638" W x 0.866" H (22.81mm x 16.20mm x 22.00mm) | |
|
|
0294060.TFUSE AUTO 60A 32VDC AUTO LINK |
7,902 |
|
Datasheet |
PAL™ 294 | Box | Active | Bolt Mount | Automotive | 60 A | - | 32 V | Slow Blow | - | - | - | - | Yellow | 0.898" L x 0.638" W x 0.866" H (22.81mm x 16.20mm x 22.00mm) | |
|
|
0294100.TFUSE AUTO 100A 32VDC AUTO LINK |
3,334 |
|
Datasheet |
PAL™ 294 | Box | Active | Bolt Mount | Automotive | 100 A | - | 32 V | Slow Blow | - | - | - | - | Blue | 0.898" L x 0.638" W x 0.866" H (22.81mm x 16.20mm x 22.00mm) | |
|
|
0294030.TFUSE AUTO 30A 32VDC AUTO LINK |
6,962 |
|
Datasheet |
PAL™ 294 | Box | Active | Bolt Mount | Automotive | 30 A | - | 32 V | Slow Blow | - | - | - | - | Pink | 0.898" L x 0.638" W x 0.866" H (22.81mm x 16.20mm x 22.00mm) | |
|
|
0283030.TFUSE AUTO 30A 32VDC AUTO LINK |
6,811 |
|
Datasheet |
PAL™ 283 | Box | Active | Bolt Mount | Automotive | 30 A | - | 32 V | Slow Blow | - | - | - | - | Pink | 0.898" L x 0.638" W x 0.866" H (22.81mm x 16.20mm x 22.00mm) | |
|
|
0295070.TFUSE AUTO 70A 32VDC AUTO LINK |
3,168 |
|
Datasheet |
PAL™ 295 | Box | Active | Bolt Mount | Automotive | 70 A | - | 32 V | Slow Blow | - | - | - | - | Brown | 0.898" L x 0.638" W x 0.866" H (22.81mm x 16.20mm x 22.00mm) | |
|
|
0283040.TFUSE AUTO 40A 32VDC AUTO LINK |
9,409 |
|
Datasheet |
PAL™ 283 | Box | Active | Bolt Mount | Automotive | 40 A | - | 32 V | Slow Blow | - | - | - | - | Green | 0.898" L x 0.638" W x 0.866" H (22.81mm x 16.20mm x 22.00mm) | |
|
0298400.ZXSCPFUSE AUTO 400A 32VDC AUTO LINK |
3,539 |
|
Datasheet |
MEGA® | Bulk | Obsolete | Bolt Mount | Automotive | 400 A | - | 32 V | Slow Blow | 2kA | - | - | -40°C ~ 125°C | Violet | 1.149" L x 0.750" W x 0.422" H (29.20mm x 19.05mm x 10.72mm) | |
|
|
0298500.ZXSFUSE AUTO 500A 32VDC AUTO LINK |
3,468 |
|
Datasheet |
MEGA® | Bulk | Obsolete | Bolt Mount | Automotive | 500 A | - | 32 V | Slow Blow | 2kA | - | - | -40°C ~ 125°C | Brown | 1.149" L x 0.750" W x 0.422" H (29.20mm x 19.05mm x 10.72mm) | |
|

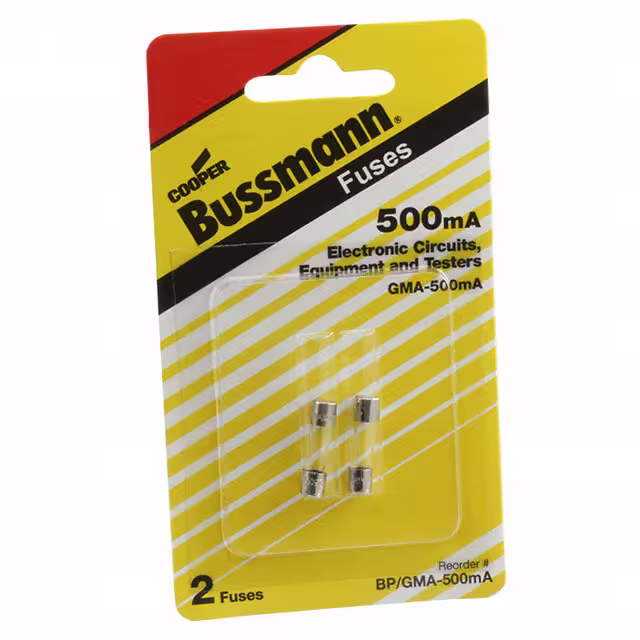

BP/GMA-500MAFUSE GLASS 500MA 125VAC 5X20MM |
4,726 |
|
- |
GMA | Bulk | Active | Requires Holder | Cartridge, Glass | 500 mA | 125 V | - | Fast Blow | - | - | - | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0326.400VXPFUSE CERM 400MA 250VAC 125VDC |
3,226 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 400 mA | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 1.33 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
|
0299020.XBPFUSE AUTO 20A 32VDC BLADE MAX |
7,951 |
|
Datasheet |
299 | Bulk | Obsolete | Requires Holder | Automotive | 20 A | - | 32 V | Slow Blow | 1kA | 1100.0 | UR | -40°C ~ 125°C | Yellow | 1.150" L x 0.348" W x 0.850" H (29.21mm x 8.85mm x 21.59mm) | |
|
|
0326.250VXPFUSE CERM 250MA 250VAC 125VDC |
4,078 |
|
Datasheet |
326 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 250 mA | 250 V | 125 V | Slow Blow | 100A AC, 10kA DC | 0.432 | CE, CSA, UL | -55°C ~ 125°C | - | 0.250" Dia x 1.250" L (6.35mm x 31.75mm) | |
|
0998250.UX-NHFUSE AUTO 250A 70VDC AUTO LINK |
2,540 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 250 A | - | 70 V | Slow Blow | 2.5kA | 220000.0 | - | -40°C ~ 125°C | Pink | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0998225.UX-1M6FUSE AUTO 225A 70VDC AUTO LINK |
6,464 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 225 A | - | 70 V | Slow Blow | 2.5kA | 142500.0 | - | -40°C ~ 125°C | Bronze, White | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0998150.UX-2M8FUSE AUTO 150A 70VDC AUTO LINK |
6,702 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 150 A | - | 70 V | Slow Blow | 2.5kA | 58100.0 | - | -40°C ~ 125°C | Orange | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0998080.UX-NHFUSE AUTO 80A 70VDC AUTO LINK |
4,118 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 80 A | - | 70 V | Slow Blow | 2.5kA | 34900.0 | - | -40°C ~ 125°C | Red | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0998225.UX-1M8FUSE AUTO 225A 70VDC AUTO LINK |
6,485 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 225 A | - | 70 V | Slow Blow | 2.5kA | 142500.0 | - | -40°C ~ 125°C | Bronze, White | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0998300.UX-1M6FUSE AUTO 300A 70VDC AUTO LINK |
2,073 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 300 A | - | 70 V | Slow Blow | 2.5kA | 340000.0 | - | -40°C ~ 125°C | Gray | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) | |
|
|
0998225.UX-2M6FUSE AUTO 225A 70VDC AUTO LINK |
4,907 |
|
Datasheet |
MEGA® | Bulk | Active | Bolt Mount | Automotive | 225 A | - | 70 V | Slow Blow | 2.5kA | 142500.0 | - | -40°C ~ 125°C | Bronze, White | 1.150" L x 0.750" W x 0.390" H (29.20mm x 19.05mm x 9.90mm) |
