Fuses
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Series | Packaging | Product Status | Mounting Type | Fuse Type | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Response Time | Breaking Capacity @ Rated Voltage | Melting I²t | Approval Agency | Operating Temperature | Color | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0683G9300-01FUSE CERM 30A 350VAC 125VDC 2SMD |
11,484 |
|
Datasheet |
0683G | Tape & Reel (TR) | Active | Surface Mount | Cartridge, Ceramic | 30 A | 350 V | 125 V | Slow Blow | 100A AC, 2kA DC | 1071.0 | CE, cURus | -55°C ~ 125°C | - | 0.183" Dia x 0.476" L (4.65mm x 12.10mm) | |
|
35613150029FUSE CERM 3.15A 440VAC 3AB 3AG |
5,166 |
|
Datasheet |
356 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 3.15 A | 440 V | - | Slow Blow | 1kA | 36.0 | CE, cULus | -25°C ~ 70°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
|
35611000029FUSE CERAMIC 1A 440VAC 3AB 3AG |
4,881 |
|
Datasheet |
356 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 1 A | 440 V | - | Slow Blow | 1kA | 4.4 | CE, cULus | -25°C ~ 70°C | - | 0.248" Dia x 1.260" L (6.30mm x 32.00mm) | |
|
0215015.MXPFUSE CERAMIC 15A 250VAC 5X20MM |
1,122 |
|
Datasheet |
215 | Bulk | Active | Requires Holder | Cartridge, Ceramic | 15 A | 250 V | - | Slow Blow | 500A | 1237.0 | PSE, SEMKO, UL | -55°C ~ 125°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0324015.MXPFUSE CERM 15A 250VAC 125VDC 3AB |
442 |
|
Datasheet |
324 | Bulk | Active | Through Hole | Cartridge, Ceramic | 15 A | 250 V | 125 V | Fast Blow | 750A AC, 10kA DC | 292.0 | CE, CSA, K-MARK, UL | -55°C ~ 125°C | - | 0.275" Dia x 1.288" L (6.99mm x 32.72mm) | |
|
BK1/GMC-250-RFUSE GLASS 250MA 250VAC 5X20MM |
267 |
|
Datasheet |
GMC | Bulk | Active | Requires Holder | Cartridge, Glass | 250 mA | 250 V | - | Medium Blow | 35A | 0.046 | CSA, KC, UL | - | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
3403.0289.11FUSE BRD MT 30A 250VAC 72VDC SMD |
431 |
|
Datasheet |
UMT-H | Strip | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 30 A | 250 V | 72 V | Slow Blow | 100A AC, 500A DC | 1650.0 | CQC, cURus, VDE | -55°C ~ 125°C | - | 0.606" L x 0.211" W x 0.211" H (15.40mm x 5.35mm x 5.35mm) | |
|
BK/ATC-1FUSE AUTO 1A 32VDC BLADE ATO/ATC |
749 |
|
Datasheet |
ATC® | Bulk | Active | Requires Holder | Automotive | 1 A | - | 32 V | Fast Blow | 1kA | - | UL | - | Black | 0.760" L x 0.207" W x 0.492" H (19.30mm x 5.25mm x 12.50mm) | |
|

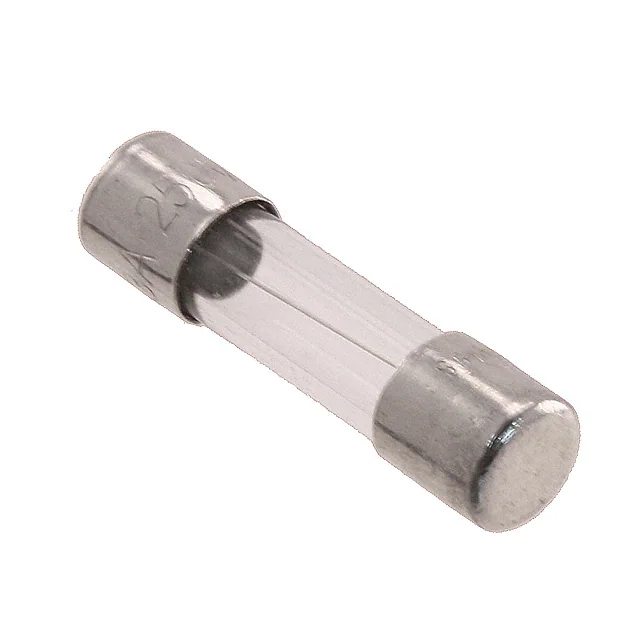

0034.3880FUSE GLASS 3A 250VAC 5X20MM |
546 |
|
Datasheet |
FSK 5x20 | Bulk | Active | Requires Holder | Cartridge, Glass | 3 A | 250 V | - | Fast Blow | 100A | 6.8 | cULus | -40°C ~ 85°C | - | 0.205" Dia x 0.787" L (5.20mm x 20.00mm) | |
|
0473002.YRT1LFUSE BRD MNT 2A 125VAC/VDC AXIAL |
769 |
|
Datasheet |
PICO® II 473 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 2 A | 125 V | 125 V | Slow Blow | 50A | 7.6 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|
BK/ATC-4FUSE AUTO 4A 32VDC BLADE ATO/ATC |
486 |
|
Datasheet |
ATC® | Bulk | Active | Requires Holder | Automotive | 4 A | - | 32 V | Fast Blow | 1kA | - | UL | - | Pink | 0.760" L x 0.207" W x 0.492" H (19.30mm x 5.25mm x 12.50mm) | |
|
|
0473001.YRT1LFUSE BRD MNT 1A 125VAC/VDC AXIAL |
304 |
|
Datasheet |
PICO® II 473 | Tape & Reel (TR) | Active | Through Hole | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Slow Blow | 50A | 2.01 | CSA, PSE, UR | -55°C ~ 125°C | - | 0.135" Dia x 0.280" L (3.43mm x 7.11mm) | |
|
0452007.NRLFUSE BRD MNT 7A 72VAC 60VDC 2SMD |
8,174 |
|
Datasheet |
NANO²® 452 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 7 A | 72 V | 60 V | Slow Blow | 50A | 123.83 | CSA, UR | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
0ADKP2000-REFUSE CERM 2A 600VAC 500VDC 5X20 |
3,391 |
|
Datasheet |
0ADKP | Bulk | Active | Through Hole | Cartridge, Ceramic | 2 A | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 10.0 | cURus | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
0449001.MRFUSE BRD MNT 1A 125VAC/VDC 2SMD |
2,671 |
|
Datasheet |
NANO²® 449 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 1 A | 125 V | 125 V | Slow Blow | 50A | 1.76 | cULus, PSE | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0ADKP6300-REFUSE CERM 6.3A 600VAC 500VDC |
938 |
|
Datasheet |
0ADKP | Bulk | Active | Through Hole | Cartridge, Ceramic | 6.3 A | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 80.0 | cURus | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0ADKP8000-REFUSE CERM 8A 600VAC 500VDC 5X20 |
935 |
|
Datasheet |
0ADKP | Bulk | Active | Through Hole | Cartridge, Ceramic | 8 A | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 179.0 | cURus | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
|
0449004.MRFUSE BRD MNT 4A 125VAC/VDC 2SMD |
724 |
|
Datasheet |
NANO²® 449 | Tape & Reel (TR) | Active | Surface Mount | Board Mount (Cartridge Style Excluded) | 4 A | 125 V | 125 V | Slow Blow | 50A | 40.8 | cULus, PSE | -55°C ~ 125°C | - | 0.240" L x 0.106" W x 0.106" H (6.10mm x 2.69mm x 2.69mm) | |
|
|
0ADKP4000-REFUSE CERM 4A 600VAC 500VDC 5X20 |
350 |
|
Datasheet |
0ADKP | Bulk | Active | Through Hole | Cartridge, Ceramic | 4 A | 600 V | 500 V | Slow Blow | 200A AC, 300A DC | 25.0 | cURus | -55°C ~ 125°C | - | 0.236" Dia x 0.886" L (6.00mm x 22.50mm) | |
|
BK/AGX-20FUSE GLASS 20A 250VAC 8AG |
174 |
|
Datasheet |
AGX | Bulk | Active | Requires Holder | Cartridge, Glass | 20 A | 250 V | - | Fast Blow | 200A | - | cURus | - | - | 0.250" Dia x 1.042" L (6.35mm x 26.47mm) |
